Phase/Rotation Testers

Results: 1-3 of 3
Filter by Category
Items per page:
Sort by:
  1. Extech 480403 Motor Rotation and 3-Phase TesterQUICK VIEW

    Extech 480403 Motor Rotation and 3-Phase Tester

    Brand: Extech | Item #: EXT-480403

    Discontinued
  2. Extech 480400 Phase Sequence TesterQUICK VIEW

    Extech 480400 Phase Sequence Tester

    Brand: Extech | Item #: EXT-480400

    Discontinued
  3. Extech PRT200 Non-Contact Phase Sequence TesterQUICK VIEW

    Extech PRT200 Non-Contact Phase Sequence Tester

    Brand: Extech | Item #: EXT-PRT200

    Discontinued

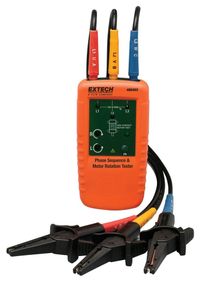

Extech 480403 Motor Rotation and 3-Phase Tester
View Product Details >

Extech 480403 Motor Rotation and 3-Phase Tester




Item #EXT-480403
BrandExtech
Price: $164.99
Quantity:
Discontinued

480403 Motor Rotation and 3-Phase Tester by Extech

Features

  • Indicates rotation direction of the motor
  • Determine rotation of a motor without contact
  • Ensures that motor does not get damaged from incorrect wiring
  • 40 to 600VAC rated test range for testing phase orientation of three phase power sources over 2 to 400Hz frequency range
  • LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
  • Durable housing is double molded
  • Easy to open alligator clips with wide jaws
  • Complete with cable and three large color coded alligator clips, pouch case, and 9V battery
Extech 480400 Phase Sequence Tester
View Product Details >

Extech 480400 Phase Sequence Tester




Item #EXT-480400
BrandExtech
Price: $102.29
Quantity:
Discontinued

480400 Phase Sequence Tester by Extech

Features

  • 40 to 600VAC rated test range for testing phase orientation of three phase power sources over 15 to 400Hz frequency range
  • Graphical multiline LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
  • Durable housing is double molded
  • Easy to open alligator clips with wide jaws
  • Tests phase orientation of three phase power sources
  • No battery required
  • Dimensions: 5.1 x 2.7 x 1.25" (130 x 69 x 32mm); Weight: 4.5oz (130g)
  • Complete with cable, three large color coded alligator clips, and soft case
Extech PRT200 Non-Contact Phase Sequence Tester
View Product Details >

Extech PRT200 Non-Contact Phase Sequence Tester




Item #EXT-PRT200
BrandExtech
Price: $199.99
Quantity:
Discontinued

PRT200 Non-Contact Phase Sequence Tester by Extech

Features

  • 75 to 1000VAC input voltage with 45 to 65Hz frequency range
  • LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
  • Beeper sounds intermittently when correct phase is detected and continuously if phase is reversed
  • Durable housing with back cover magnet for attachment to an AC distribution panel for easy measurement
  • Adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight
  • Fully insulated alligator clips with wide jaws
  • Low battery warning
  • CAT IV-600V safety rating
  • Dimensions: 4.7 x 2.7 x 1.5" (118 x 69 x 38mm); Weight: 13oz (370g)
  • Complete with three built-in 30" test leads with large color-coded alligator clips, four AA batteries, and pouch case
