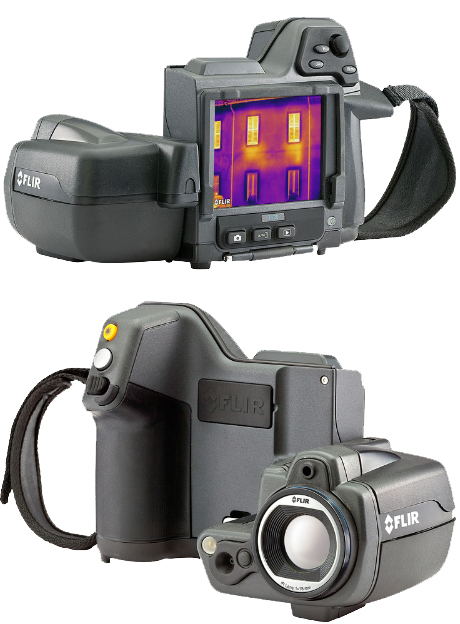

FLIR T460 IR Camera 320 x 240 Resolution / 30Hz with NIST Calibration - 62104-2802

FLIR T460 IR Camera 320 x 240 Resolution / 30Hz with NIST Calibration - 62104-2802

Item #



    62104-2802 T460 IR Camera 320 x 240 Resolution/30Hz with NIST Calibration by FLIR

    You need troubleshooting tools that can help you find and report equipment problems fast. That's exactly what T-Series cameras do. They let you see invisible heat caused by electrical resistance and mechanical wear early enough to help you head off expensive downtime and potential danger.

    Watch the video to learn why no other line of infrared cameras makes it easier to capture images, share findings, and get more done with time to spare. And be sure to ask for an onsite demonstration to see firsthand why T-Series is the ultimate way to unleash the power of FLIR.

    Ultimate Resolution & Sensitivity

    • 3 superior thermal imaging choices including 640 x 480 native resolution
    • Up to 1.2 MP thermal resolution with UltraMax™ - a 4x improvement for finer detail and accuracy
    • MSX® enhancement that etches key visible details such as numbers, labels, etc. onto live, stored, and UltraMax thermal images for easier locating
    • Class-leading sensitivity as fine as <0.02°C for outstanding image quality and subtler thermal patterns
    • Temperature range calibrations up to 2,000°C for measuring the hottest targets

    Optimum Ergonomics

    • Rotating optical block points up and down 120 degrees
    • Auto orientation orients onscreen data to portrait or landscape view
    • Fastest auto focus, manual control, and more for precision imaging

    Fast Communication

    • FLIR Tools Mobile app connects cameras to mobile devices so you can stream live thermal video, take remote control, analyze stored images, and email findings quickly from the field.
    • FLIR MeterLink® Test & Measurement tools transmit readings directly to the camera, which stores the data with radiometric images as you capture them for use in reports.
    • FLIR Tools reporting software provides extra power to add more measurement tools to images, generate in-depth reports, update camera firmware, and more.

    Thermal Resolution 76,800 (320 x 240)
    Thermal Sensitivity <0.03°C @ 30°C
    Accuracy +/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal.
    Temperature Range -4°F to 2,732°F (-20°C to 1,500°C)
    Measurement Modes 6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; 2 user presets
    UltraMax Yes
    Radiometric Recording CSQ to memory card
    User Presets Yes
    Frame Rate 60 Hz
    Lens Choices 6°, 15° Tele, 45° & 90° Wide; Close up: 100 μm, 50 μm
    Focus Manual & Automatic
    Display Size 3.5"
    Touchscreen Yes
    Built-in Visual Camera 3.1 MP
    Digital Zoom 8x
    Compass Yes
    Sketch on IR/Visual Image Draw or add predefi ned stamps
