FLIR 1000A AC/DC Clamp with IR - CM78

FLIR 1000A AC/DC Clamp with IR - CM78

$399.99

Discontinued

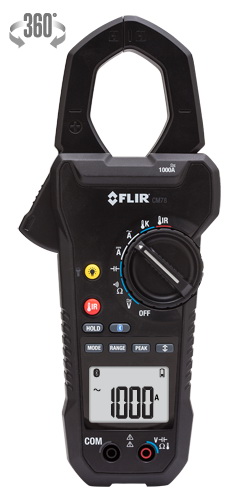

CM78 1000A AC/DC Clamp with IR by FLIR

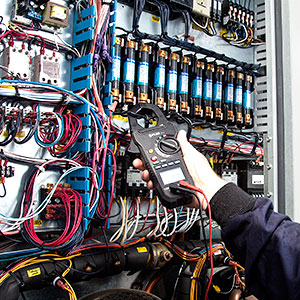

The FLIR CM78 is a multifunctional, 1000 Amp Clamp Meter for the electrician who works on high-powered equipment and temperature systems.

Features

  • AC/DC (1000A or 1000V): Take accurate AC/DC measurements (up to 1000A or 1000V) safely and quickly on high-powered equipment and complex machinery.
  • Non-Contact Safety: Save time by attaching the meter to the target when the panel is de-energized, then measure the active equipment when the panel is closed.
  • Spot-Laser IR Thermometer: Quickly scan for hot spots on panels, conduits, and motors using the built-in non-contact IR thermometer.
  • Type K Thermocouple: Verify that associated current measurements and temperature readings are correctly aligned and in spec.
  • Bluetooth Connectivity: Connect to Android devices for remote diagnostics in hard-to-reach or hazardous areas. Also, upload data without the need for special cords.
  • METERLiNK Compatibility: Embed electrical measurements into thermal images captured by METERLiNK-enabled FLIR IR cameras for easier documentation.
  • Bright Dual-LED Worklights: Make your work safer/easier in poorly lit locations especially useful when the lights are out or obstacles block your inspection targets.
  • Rugged & Shock-Resistant: Double-molded case design and extra thick rubber on the corners absorbs shock to enhance job-site reliability and long-haul durability.

Includes

  • 6 AAA Batteries
  • User Manual/CD
  • CAT IV Silicon Test Leads
  • Limited Lifetime Warranty
  Range Basic Accuracy
AC/DC Current Range 1000 A ± 2.5%
AC/DC Voltage 1000 V ± 1.5%
Resistance 40.00 MΩ ± 1.5%
Capacitance 4.000 mF ± 3%
Frequency 4000 Hz ± 31.5
Temperature (IR) -58 to 518°F, -50 to 270°C ± 2%
IR Distance to Target Ratio 8 : 1 in
Temperature (Type K) -4 to 1400°F, -20 to 760°C ± 3%
General Information
Bluetooth Range Max 32 ft (10 m)
Jaw Opening 42 mm (1.7 in, 2000MCM)
Safety Category CAT IV-600V, CAT III-1000V
Warranty Limited Lifetime
Certifications CE, UL, FCC
