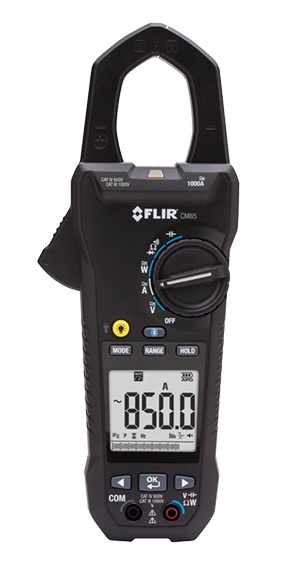

CM85 Industrial 1000 Amp Power Clamp with VFD Mode and Bluetooth METERLiNK by FLIR

FLIR offers an excellent choice of industrial-grade Power Clamp Meters engineered with advanced power analysis and variable frequency drive filtering functions required by electrical troubleshooters.

Features

  • VFD Mode: Accurately analyze non-sinusoidal waveforms and noisy signals in VFD-controlled equipment.
  • Harmonics Mode: Locate noise from different electrical draws to realign harmonics and reduce electro-mechanical equipment stress.
  • Phase Rotation: Analyze three-phase systems to measure power draw and verify if power is evenly balanced.
  • Inrush Current: Measure hard and soft start-up inrush current spikes while equipment is ramping up.
  • METERLiNK Compatibility: Embed electrical measurements into thermal images captured by METERLiNK-enabled FLIR IR cameras for easier documentation.
  • Power Factor and Active Power: Monitor power quality improvements, such as start-up realignments on three-phase equipment.
  • Bluetooth Connectivity: Connect to Android devices for remote diagnostics in hard-to-reach or hazardous areas. Also, upload data without the need for special cords.
  • Bright Dual-LED Worklights: Make your work safer/easier in poorly lit locations especially useful when the lights are out or obstacles block your inspection targets.
  • Rugged & Shock-Resistant: Double-molded case design and extra thick rubber on the corners absorbs shock to enhance job-site reliability and long-haul durability.

Includes

  • 6 AAA Batteries
  • User Manual/CD
  • CAT IV Silicon Test Leads
  • Limited Lifetime Warranty
  Range Basic Accuracy
AC/DC Current 1000 A ± 2%
AC/DC Voltage 1000 V ± 1% / 0.7%
AC VFD Voltage 1000 V ± 1%
Harmonics 1st-25th Order ± 5%
Total Harmonic Distortion 0.0 to 99.9% ± 3%
Inrush Current 1000 ACA Max (Integration Time 100 ms) ± 3%
Active Power 10 kW to 60 kW, (10 V, 5 A min) ± 3%
Diode Test 0.4 to 0.8 V ± 0.1V
Capacitance 3.999 mF Max ± 1.9%
Resistance 99.99 kΩ Max ± 1%
Continuity Threshold 30 Ω ± 1%
Frequency 20.00 Hz to 9.999 kHz ± 0.5%
General Information
Jaw Opening 45 mm (1.77”)
Category Rating CAT IV-600V, CAT III-1000V
Bluetooth Range Max 10 m (32ft)
Battery Type 6 x AAA
Warranty Limited Lifetime
