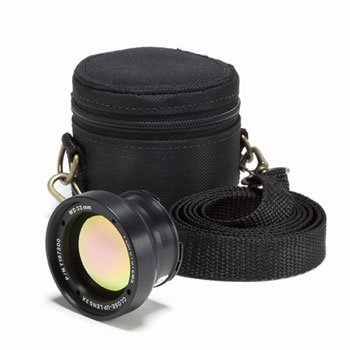

FLIR Close Up Lens 2x Magnification with Case - T197214

T197214 Close Up Lens 2x Magnification with Case by FLIR

If you need to look at small objects very close up, this is the lens for you. For example, R&D thermographers use this lens to inspect the small elements on compact electrical components or PCBs so they can study heat dissipation and loading.

Features

• Field of view (FOV): 16 × 12 mm
• Magnifying factor: 2×
• Working distance: 33 mm
• Depth of field: ±0.4 mm
• Focal length: 37 mm (1.5 in.)
• Spatial resolution: (IFOV): 80 µm/50 µm
• F-number: 1.3
• Number of lenses: 2 (2 asph)
• MTF @ 70% of FOV: Normal requirements (52%)
• Distorsion: 3%
• Weight: 0.11 kg (0.24 lb.)
• Size (L × D): 35.2 × 55 mm
