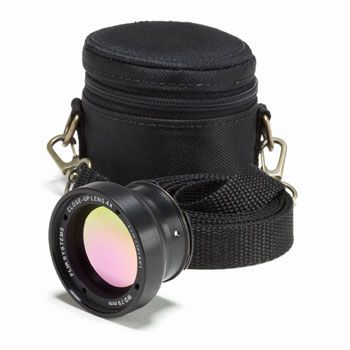

T197215 Close Up Lens 4x Magnification with Case by FLIR

If you need to look at really small objects really close up, this is the lens for you. For example, R&D thermographers use this lens to inspect the tiny elements on compact electrical components or PCBs so they can study heat dissipation and loading.

Features

  • Field of view (FOV): 32 × 24mm
  • Magnifying factor: 4×
  • Working distance: 79 mm
  • Depth of field: ±2.0 mm
  • Focal length: 73 mm (2.9 in.)
  • Spatial resolution: (IFOV): 160 µm/100 µm
  • F-number: 1.3
  • Number of lenses: 2 (2 asph)
  • MTF @ 70% of FOV: Normal requirements (52%)
  • Distortion: 3%
  • Weight: 0.11 kg (0.24 lb.)
  • Size (L × D): 35.2 × 55 mm
