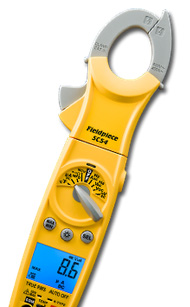

SC54 Swivel Head Clamp Meter by Fieldpiece

The SC54 swivel-head clamp meter is packed with all the electrical measurements HVACR professionals use everyday. It's fast reacting, easy-to-use, and rugged. Extended temperature tolerances allow for testing in refrigerators and on rooftops, and the display is unaffected by temperatures from -4°F to 158°F.

The new 10000 count display is fast reacting and shows large values and small, without moving the decimal point or changing units. Plus the SC54 works with any Fieldpiece accessory head to further expand tech's testing capabilities without having to purchase multiple meters.

  • Fast Testing
  • Expanded temperature tolerances -- allows for testing in refrigerators and on rooftops
  • Bright backlight.
  • Capacitance -- to test questionable motor start and run capacitors
  • Swivel Head -- for a clear view at any angle
  • Frequency (Hz) through the clamp -- no more unnecessarily breaking the circuit
  • Modular Expandability
  • True RMS
  • Packed with HVACR measurements
  • Easy temperature calibration

Includes

  • SC54 Clamp Meter
  • ATB1 Thermocouple
  • ADLS2 Silicone Leads
  • ASA2 Gator Clip Leads
  • ANC7 Padded Case
General Specification
Display 10000 count display with backlight
Overrange (OL) or (-OL) is displayed
Measurement rate 2 times per second, nominal
Zero Automatic
Operating environment 32°F to 122°F (0°C to 50°C) at <70% relative humidity
Storage temperature -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
Accuracy Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
Temperature coefficient 0.1 x (specified accuracy) per °C [0°C to 18°C (32°F to 64°F), 28°C to 50° C(82°F to 122°F)]
APO (Auto Power Off) Approx. 30 minutes
Power Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery life 100 hours typical alkaline
Low battery indication Battery icon will be empty. "batt" displays along with a continuous beep when the battery voltage drops below the operating level. Meter shuts off in 5 seconds.
Dimensions 258.3mm(H) x 71.2mm(W) x 42.7mm(D)
Weight Approx. 278g including battery
Altitude 6562 feet (2000m)
Overload protection 600VDC or 600VAC rms unless otherwise stated in the individual test sections
Test leads Shall use UL listed test leads complied UL61010-031 rated CATIII 600V or above.
Amps AC (AAC) TrueRMS (50-60Hz)
Ranges 0 to 400AAC
Resolution 0.1A
Crest factor ≤ 3
Accuracy ±(2.0% + 5dgts) 50-60Hz
Jaw Opening 1.2in (30 mm)
Overload Protection 400AAC
Frequency (Hz) Through Clamp
Range 20Hz to 400Hz
Accuracy ±(0.5% + 5)
Minimum current range > 5AAC at 20 to 100Hz, >10AAC at 100 to 400Hz
Resolution 0.1Hz
Overload Protection 400AAC
Resistance (Ω)
Ranges 0 to 1000Ω, 1000Ω to 9999Ω
Resolution 0.1Ω
Accuracy ±(1.5% + 5)
Overload Protection 600VDC/VAC rms
Continuity
Range 1000Ω
Resolution 0.1Ω
Response time 100ms
Audible beep <30Ω
Overload Protection 600VDC/VACrms
Voltage AC (VAC) (50Hz-400Hz)
Range 0 to 600V
Resolution 0.1V
Accuracy ±(1.0% + 5 dgts) 50-100Hz
±(6%+5 dgts) 100-400Hz
True RMS Yes
Crest factor ≤ 3
Input impedance 1MΩ
Voltage DC (VDC)
Ranges 0 to 600V
Accuracy ±(1.0% + 5 dgts) on 600V range
Resolution 0.1V
Input impedance 1MΩ
MilliVolt DC (mVDC)
Ranges 1000mV and 10000mV
Accuracy ±(0.5% + 5 dgts)
Resolution 0.1mV or 1mV
Input impedance 1MΩ
