BW Technologies GasAlertMax 2 Gas Detector %LEL, CO with Datalogging

BW Technologies GasAlertMax 2 Gas Detector %LEL, CO with Datalogging

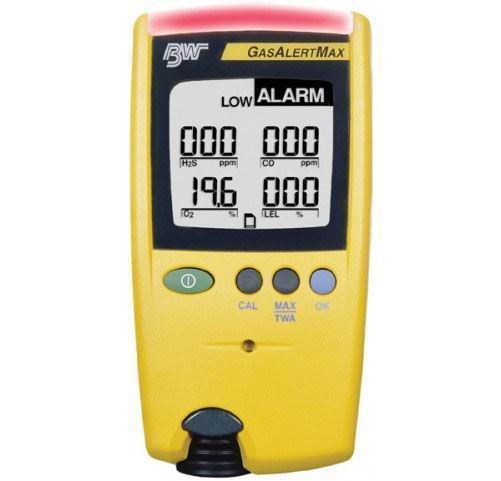

GAMAX3-2MW-DL2 GasAlertMax 2 Gas Detector %LEL, CO with Datalogging by BW Technologies

GasAlertMax provides extraordinary cost of ownership advantages. Training and maintenance costs are minimized through automated calibration, internal plug-in sampling pump, long-life VersaPak battery power (available in local stores) and simple, one-button control. GasAlertMax is powered by two advanced microcontrollers and features plug-in electrochemical and catalytic sensors. High-output audible/visual alarms provide instant notification.

The large alphanumeric LCD shows real-time gas concentrations and the instrument's status at all times. A full-function self-test verifies sensor, circuitry and battery integrity and activates the audible/visual alarms each time the detector is activated. GasAlertMax clearly advises the hazard present - Low, High, TWA and STEL multi-gas alarm. Recorded TWA, STEL and Peak exposures can be displayed on demand.

GasAlertMax satisfies the OSHA safety regulation CFR1910.146 (Permit Required - Confined Space Entry).

Protect Yourself

  • Large LCD shows real-time gas concentrations of H2S, CO, O2 and %LEL
  • Internal plug-in pump for remote sampling
  • LOW, HIGH, and TWA alarms with adjustable setpoints
  • Equipped with plug-in, replaceable sensors
  • Simple, automatic calibration procedure
  • Intrinsically safe to U.S., European and Canadian standards
  • Provides 95 dB tone and bright LED indication on alarm
  • Compact (1.6 x 3.0 x 5.9 in / 40 x 75 x 150 mm) and lightweight (15.4 oz. / 396 g)
  • Runs an entire shift on one Black & Decker VersaPak rechargeable battery (available worldwide)
  • Peak values displayed on command
  • Full-function self-test of: sensor/battery/circuitry integrity; and audible/visual alarms
  • One VersaPak rechargeable battery, 2-port charger, 10 ft. / 3m. sampling hose, calibration hose, carrying holster, and instructions in local languages included
  • Vibrating alarm and remote audible/visual alarm (110 dB) accessories available

Part Number: GAMAX32MWDL2

GasAlertMax Specifications:
Auto zero: Yes
Calibration: Automatic
Backlight: Low light (auto); alarm condition (auto); reactivation on demand
Full function self-test: Sensor integrity, circuitry and battery; audible/visual alarms
Sensor: Plug-in, electrochemical cell (toxic and oxygen); catalytic (LEL)
User field options: Set calibration due date, display language, enable/disable automatic O2 calibration, span concentration values, STEL calculation period, clock, calendar, enable/disable pump test, confidence beep, pass code protection, latching alarms and sensor on/off
ALARM INDICATORS: Clearly advise alarm levels both visually and audibly
Visual alarm: Flashing, wide-angled alarm lens with dual red LEDs, plus alarm LCD readout
Audible alarm: High-output, variable, pulsing siren 95 dB at 1 ft. / 0.3 m
Confidence beep: Every 5 seconds (field-selectable)
Other: Low battery; off warning; sensor fail; multiple gas hazard
Remote alarm (option): Accepts vibrating alarm or remote audible/visual alarm (110 dB)
LCD: Continuous, alphanumeric gas readout and status display advises:
Gas ppm or %: Simultaneously and continuously displays all 4 gas concentration(s) present
TWA ppm or %: Records and displays on demand and during alarm
Peak ppm or %: Records and displays peak exposure to gas and displays on demand
Setpoints: Displayed on activation and after calibration (auto) in ppm or %
Full-function self-test: Full-function self-test on activation (auto)
Battery: Continuous (auto)
GENERAL SPECIFICATIONS: Impact-resistant ABS enclosure
Operating Temperature: -4 to 122 oF / -20 to 50 oC (Australia -20 oC to 40 oC)
2Temperature code: North America (cCSAus) 132 oC(T4) at 50 oC
Europe (ATEX) 184 oC at 50 oC
Australia (SA) 213 oC
Humidity: 5% to 95% RH (non-condensing)
EMI/RFI: Complies with EMC Directive 89/336/EEC
Battery type: One 3.6 volt Black & Decker VersaPak rechargeable cell
Battery run-time: NiMH: up to 12 hours operation; NiCd: up to 8 hours operation
Size: 1.6 x 3.0 x 5.9 inches / 40 x 75 x 150 mm
Weight: 15.4 oz. / 396 g
WARRANTY: Full 2 year warranty including all sensors
DATALOGGER OPTIONS: User-downloadable datalogger
Data recorder: All events and occurrences
Sampling rate: Factory set at 5-second intervals
Storage: 4.4 months of continuous data via 32 MB Flash MMC card (64 MB cards are also available); when full, the wraparound feature replaces oldest data with most recent data

Sensor Specifications:
Gas: H2S CO O2 (% by vol.) Combustibles
Measuring Range: 0 - 100 ppm 0 - 500 ppm 0 - 30.0 % 0 - 100 % LEL
Low alarm level1: 10 ppm 35 ppm 19.5 % 10 %
TWA alarm level1: 10 ppm 35 ppm N/A N/A
High alarm level1: 15 ppm 200 ppm 23.5 % 20 %
