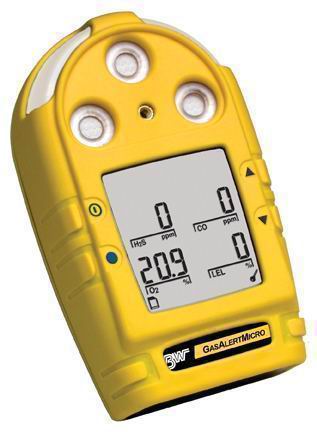

BW Technologies GasAlertMicro 2 Gas Detector H2S, CO - 2 AA Alkaline Batteries and Datalogging

Item #:

GAMIC-2HM-DL2-IR

Brand:

BW Technologies

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

GAMIC-2HM-DL2-IR GasAlertMicro 2 Gas Detector H2S, CO - 2 AA Alkaline Batteries and Datalogging by BW Technologies

Combining both performance and affordability, the GasAlertMicro has a comprehensive range of features and flexible power options. The wide variety of field-adjustable user options include passcode protection for tamperproof operation. Suited to a wide range of applications, the GasAlertMicro offers a simple, automatic calibration procedure and is compatible with BW's MicroDock II automatic test and calibration system.

Field-proven reliability with straightforward operation
Three interchangeable power options, minimal downtime and convenient flexibility
Extensive datalogging capacity

Standard features of BW products:

Continuous LCD shows real-time gas concentrations
Compact and lightweight design makes it comfortable to wear
Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
Bright wide-angled visual alarm bars
Built-in concussion-proof boot

Additional GasAlertMicro features:

Compatible with the Sampler motorized pump for remote sampling
Equipped with internal vibrating alarm for high noise areas
Powered by two AA alkaline, two AA rechargeable NiMH cells or GA MicroBatt rechargeable battery pack
Multi-language support in English, French, German, Spanish, and Portuguese
Stealth model available with black housing and infrared LEDs

Part Number: GAMIC2HMDL2IR

Specifications

GasAlertMicro Specifications:

Size	2.4 x 4.0 x 1.3 in. / 6.0 x 10.0 x 3.3 cm
Weight	7.4 oz. / 211 g
Temperature	-4 to +122°F / -20 to +50°C
Humidity	5% - 95% RH (non-condensing)
Alarms	- Visual, vibrating, audible (95dB) - Low, High, STEL, TWA, OL (over limit)
Tests	Sensor integrity, circuitry, battery and audible/visual alarms on activation, battery (continuous)
Pump	Compatible with the Sampler motorized sampling pump
Typical battery life	AA alkaline: 16 - 18 hrs, GA MicroBatt: 16 - 18 hrs, Rechargeable: 14 - 16 hrs
User options	Confidence beep, Set STEL interval, Sensor on/off, Latching alarms, Safe display mode, Stealth mode, Passcode protection, O2 auto calibration on start up, MicroBatt mode, Automatic backlight, Combustible gas measurement (% LEL or % by volume methane), User-settable calibration gas level, Bump test due reminder, Language choices (5), Adjust clock, Set datalogger rate
Warranty	Full 2 year warranty including all sensors

Sensor Specifications:

Gas	Measuring Range	Resolution
H2S	0-100 ppm	1 ppm
CO	0-500 ppm	1 ppm
O2	0-30.0%	0.1%
SO2	0-100 ppm	1 ppm
Combustible gases	0-100% LEL 0-5.0% v/v	1% 0.1%
