Dynagard 25 Series Fixed Transmitter for O2

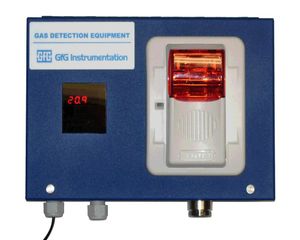

2210-030 Dynagard 25 for O2 Stand-alone System with ZD 21 Transmitter for Detecting Oxygen (O2) and GMA 41B Single Channel Controller by GfG

Simple and Effective

The Dynagard 25 Series accurately measures oxygen levels. The unit offers a local display, a horn / strobe, and a linear 4-20 mA output. The Dynagard 25 Series offers a safe and reliable gas warning system.

Alarm Points

Each alarm can be adjusted separately. The alarm point values can be freely adjusted within the detection range of the transmitter. Every alarm point value can be set to over range / under range, latching / non-latching, or resettable / non-resettable.

Alarm Relays

The controller provides four voltage-free relays for the three alarms and one fault warning. The relays may be used to control additional alarm devices like lights or horns. They can even prompt specific counter measures to prevent or limit dangers from gases or vapors.

ZD 21 Zirconia Sensor

The comprehensive electronics allow for easy operation and maintenance and also increase operational safety and accuracy. In less than 2 seconds, the ZD 21 responds to an oxygen deficiency. The sensor has a platinum coating on the inside and outside of the ceramic cylinder. Oxygen is electrochemically reduced at the cathode.

The voltage produced is proportional to the next difference in the partial pressures of oxygen in the reference gas versus the sampled gas. This extremely short response time allows the user the time to take measures to prevent consideable damage.

Features

• Easy installation
• Local display and horn / strobe
• Adjustable alarm points
• On-board relays for external controls
• 4-20 mA output

2041001 GMA 41B Single Channel Controller, with Digital LED Display, External Reset Connection and Linear 4-20 mA Output by GfG

Gas Monitoring Controllers

Alarm points

Alarm relays

Features

• Single or four channel controller
• Easy mounting on DIN-rail
• Multiple alarm points with relays

Additional features

The GMA (variant B) offers an integrated BUS-system. The BUS-system supplies power from one source to all connected GMAs. The BUS-system also connects individual controller alarms together so that, with the use of the key-operated switch, all connected monitors have one collective alarm. Several GMAs can be connected easily without additional wiring.

2210009 ZD 21 Fixed Gas Transmitter with Internal Sensor, Oxygen (O2), 0 - 25% / vol. by GfG

A particularly long sensor life makes the ZD 21 a low cost transmitter for oxygen monitoring. The expected lifetime of the sensor is 5 years in continuous operation. A robust aluminum casing protects the sensor and the circuitry from impacts, splashed water, and dirt.

The ZD 21 is an "intelligent" transmitter. The comprehensive electronics allow for easy operation and maintenance and also increase operational safety and accuracy. In less than 2 seconds the ZD 21 responds to oxygen escaping from a leak. This extremely short response time allows the time to take measures to prevent considerable damage.

• Extremely stable oxygen (O2) sensor lasts 5 years
• Fast response
• No influences from pressure, humidity, or temperature
• No damage from carbon dioxide (CO2)

Oxygen (O2) Sensor, 0-25% vol.

2210-031 Dynagard 25 Series System with ZD 21 Transmitter for Detecting Oxygen (O₂) and GMA 41B Single Channel Controller (no power supply) by GfG

Simple and Effective

The Dynagard 25 Series accurately measures oxygen levels. The unit offers a local display, a horn / strobe, and a linear 4-20 mA output. The Dynagard 25 Series offers a safe and reliable gas warning system.

Alarm Points

Each alarm can be adjusted separately. The alarm point values can be freely adjusted within the detection range of the transmitter. Every alarm point value can be set to over range / under range, latching / non-latching, or resettable / non-resettable.

Alarm Relays

The controller provides four voltage-free relays for the three alarms and one fault warning. The relays may be used to control additional alarm devices like lights or horns. They can even prompt specific counter measures to prevent or limit dangers from gases or vapors.

ZD 21 Zirconia Sensor

The comprehensive electronics allow for easy operation and maintenance and also increase operational safety and accuracy. In less than 2 seconds, the ZD 21 responds to an oxygen deficiency. The sensor has a platinum coating on the inside and outside of the ceramic cylinder. Oxygen is electrochemically reduced at the cathode.

The voltage produced is proportional to the next difference in the partial pressures of oxygen in the reference gas versus the sampled gas. This extremely short response time allows the user the time to take measures to prevent consideable damage.

Features

• Easy installation
• Local display and horn / strobe
• Adjustable alarm points
• On-board relays for external controls
• 4-20 mA output
