HI96742 Iron, Low Range and Manganese Low Range Portable Photometer by Hanna Instruments

Neither iron nor manganese are considered dangerous, but high concentrations of these metals in water can create a bittersweet or astringent taste.

The presence of iron in supplied water is undesirable due to the staining effect on laundry and porcelain.

Manganese, in high concentrations, can produce corrosion and scaling in pipes, which is a serious industrial concern.

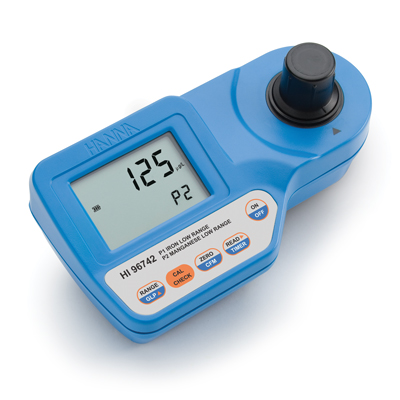

The solution for these applications is the HANNA HI 96742, a hand-held photometer to measure low range iron and manganese.

HI 96742 are supplied with sample cuvettes with caps (2), 9V battery and instruction manual.

Range	Iron LR: 0 to 1.60 mg/L (ppm) Manganese LR: 0 to 300 µg/L
Resolution	Iron LR: 0.01 mg/L Manganese LR: 1 µg/L
Accuracy @25°C	Iron LR: ±0.01 mg/L ±8% of reading Manganese LR: ±2 µg/L ±3% of reading
Light Source	tungsten lamp
Light Detector	silicon photocell with narrow band interference filter @ 525 nm
Power Supply	9V battery
Auto-off	after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder.
Dimensions	192 x 104 x 69 mm (7.6 x 4.1 x 2.7")
Environment	0 to 50°C (32 to 122°F); RH max 95% non-condensing
Weight	360 g (12.7 oz.)
Method	Iron LR: adaptation of TPTZ method Manganese LR: adaptation of the 1-(2-pyridylazo)-2-naphthol PAN method
