Sensorex pH Transmitter, 4-20mA, Blind - PHMA

Sensorex pH Transmitter, 4-20mA, Blind - PHMA

$458.00

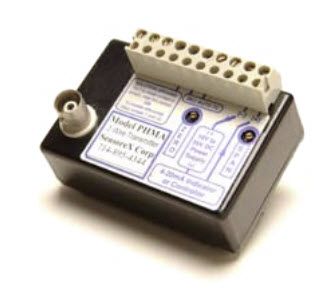

PHMA pH Transmitter, 4-20mA, Blind by Sensorex

The Model PHMA (encapsulated miniature transmitter) is a 2-wire, 4-20 mA pH transmitter featuring encapsulated construction, high performance and small size. It can be interfaced with many display and control devices requiring a 4-20 mA input.

The unit is compatible will all SensoreX conventional combination pH electrodes. It transforms the pH signal to a 4-20 mA current proportional to the pH level. This output may be transmitted over two wires to a control location. The same two wires provide power to the transmitter. Any 12 - 36 Volt D.C. power supply may be used. There are two adjustments on the transmitter to standardize probes for "SPAN" and "ZERO". The output can be monitored with a loop-powered meter, a loop resistor or even a multi-meter during the standardization procedure.

  • Compact size
  • Easy-to-use
  • 4-20mA loop-powered
  • Adjustable zero and span
  • Fully encapsulated
Measuring Range 0-14 pH (4-20mA)
Input pH electrode with BNC connector, Solution ground
Output 4-20mA (scalable to 0-14pH)
Dimensions 2.0"(51mm) H x 2.75"(70mm) W x 1.5"(38mm) D
Operating Temperature -25 to 70 Degrees C
Temperature Compensation Automatic with 3K Balco ATC (in electrode or cable)
Repeatability ±.01pH (±1mV)
Linearity 0.1% of Span
Accuracy ±.02pH (±2mV)
Power Requirement 12-36V DC
Reverse Polarity Protection Temporary only using internal resistors
DC Filtration Multi-pole noise filter
