Model 712 Kits

712A740 712 Combustion Efficiency Analyzer Kit by Test Products International

712 Features

• Fast purge & fuel selection during start up
• Work on high efficiency furnaces and oil
• Measure CO, O2; and calculate efficiency, CO2, excess air and CO air free
• Dual input temperature
• Dual input pressure with 0.001 inches water resolution for high efficiency & oil
• Optional A767 adapter for PC interface

A740 Features

• Easy to use
• Battery operated
• Self test facility
• Adjustable contrast
• Manual paper feed
• Maximum transmitting distance 16"(45cm)

712A740C1 712 Combustion Efficiency Analyzer Kit by Test Products International

712 Features

• Fast purge & fuel selection during start up
• Work on high efficiency furnaces and oil
• Measure CO, O2; and calculate efficiency, CO2, excess air and CO air free
• Dual input temperature
• Dual input pressure with 0.001 inches water resolution for high efficiency & oil
• Optional A767 adapter for PC interface

A740 Features

• Easy to use
• Battery operated
• Self test facility
• Adjustable contrast
• Manual paper feed
• Maximum transmitting distance 16"(45cm)

A773

Use the A773 when working on oil fired appliances to extend the life of your sensors by eliminating acid gas exposure to your analyzer

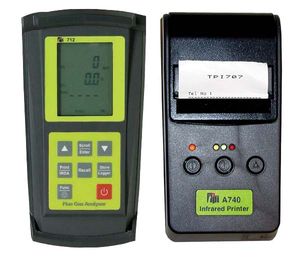

712A740OIL 712 Combustion Efficiency Analyzer Kit by Test Products International

712 Features

• Fast purge & fuel selection during start up
• Work on high efficiency furnaces and oil
• Measure CO, O2; and calculate efficiency, CO2, excess air and CO air free
• Dual input temperature
• Dual input pressure with 0.001 inches water resolution for high efficiency & oil
• Optional A767 adapter for PC interface

A740 Features

• Easy to use
• Battery operated
• Self test facility
• Adjustable contrast
• Manual paper feed
• Maximum transmitting distance 16"(45cm)

Includes

• 712 Combustion Efficiency Analyzer
• A740 IR Printer
• A773 Sulfer Filter
• A790 Analog Oil Pressure Gauge
• A788 Smoke Pump Test

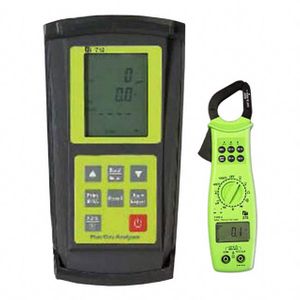

712C5 712 Combustion Efficiency Analyzer Kit by Test Products International

712 Features

• Fast purge & fuel selection during start up
• Work on high efficiency furnaces and oil
• Measure CO, O2; and calculate efficiency, CO2, excess air and CO air free
• Dual input temperature
• Dual input pressure with 0.001 inches water resolution for high efficiency & oil
• Optional A767 adapter for PC interface

270 Features:

• Measure motor in-rush current and run current
• Measure temperature differential with relative mode
• Non-contact voltage feature can be used to immediately see if power is being supplied to the 24VAC control circuit of thermostats
• Frequency, Min/Max/Record, Data Hold and Peak Hold
• Up to 40,000 Microfarads to test run and start capacitors
• 4,000 count display with 41 segment analog bargraph
• Auto & Manual Ranging
• Low Battery Indicator
• Over Range Indication ("OL")
• Hi Voltage Indicator (>30V AC/DC)
• Auto Power Off after 30 minutes
• Separate Battery/Fuse Compartment
• Low Ohm Range (400V)
• Amps AC Resolution: 0.01A
• VDC/VAC Resolution: 0.1mV
• DC μA measurement (0.01 μA resolution)
• Temperature measurement with 0.1° resolution

Includes

• 712 Combustion Efficiency Analyzer
• 270 Clamp-On Tester with Digital Multimetervisit

712C7 712 Combustion Efficiency Analyzer Kit by Test Products International

712 Features

• Fast purge & fuel selection during start up
• Work on high efficiency furnaces and oil
• Measure CO, O2; and calculate efficiency, CO2, excess air and CO air free
• Dual input temperature
• Dual input pressure with 0.001 inches water resolution for high efficiency & oil
• Optional A767 adapter for PC interface

270 Features:

• Measure motor in-rush current and run current
• Measure temperature differential with relative mode
• Non-contact voltage feature can be used to immediately see if power is being supplied to the 24VAC control circuit of thermostats
• Frequency, Min/Max/Record, Data Hold and Peak Hold
• Up to 40,000 Microfarads to test run and start capacitors
• 4,000 count display with 41 segment analog bargraph
• Auto & Manual Ranging
• Low Battery Indicator
• Over Range Indication ("OL")
• Hi Voltage Indicator (>30V AC/DC)
• Auto Power Off after 30 minutes
• Separate Battery/Fuse Compartment
• Low Ohm Range (400V)
• Amps AC Resolution: 0.01A
• VDC/VAC Resolution: 0.1mV
• DC μA measurement (0.01 μA resolution)
• Temperature measurement with 0.1° resolution

A740 Features

• Easy to use
• Battery operated
• Self test facility
• Adjustable contrast
• Manual paper feed
• Maximum transmitting distance 16"(45cm)

Includes

• 712 Combustion Efficiency Analyzer
• 270 Clamp-On Tester with Digital Multimetervisit
• A740 IR Printer
