Oakton Cole-ParmerŪ Submersible 3' L pH Probe, DJ/ABS/100Ohm RTD; Plug/BNC - WD-27001-81

Item #:
WD-27001-81
Brand:
Oakton Instruments
Oakton Cole-ParmerŪ Submersible 3' L pH Probe, DJ/ABS/100Ohm RTD; Plug/BNC - WD-27001-81
$258.30
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Oakton Cole-ParmerŪ Submersible 3' L pH Probe, DJ/ABS/100Ohm RTD; Plug/BNC - WD-27001-81

Oakton Cole-ParmerŪ Submersible 3' L pH Probe, DJ/ABS/100Ohm RTD; Plug/BNC - WD-27001-81

$258.30

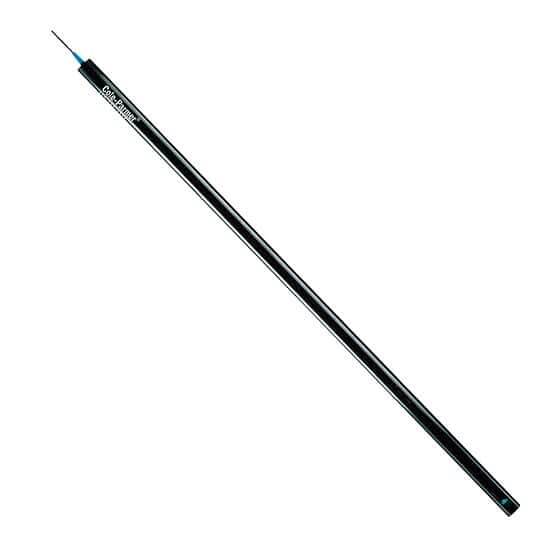

WD-27001-81 Cole-Parmer® Submersible 3' L pH Probe, DJ/ABS/100Ohm RTD; Plug/BNC by Oakton

Submersible electrodes operate from 32 to 176°>F (0 to 80°>C). Submerse up to the cable. Measure pH from 0 to 13. Electrodes are potted in a 3 ft L x 1-1/16" diameter ABS sheath. Ideal for meassurements in open containers such as tanks or troughs.

Note: 100Ω RTD ATC elements are platinum and conform to DIN curve 43760. ATC connector is miniature audio plug.
Connector for the 1 kΩ RTD and the 3 kΩ Balco ATC elements is a spade lug.
Connector for 100 kΩ thermistor ATC elemen

Applications Submersible
Electrode Type Double junction
Electrode Body Material ABS plastic
Min pH (pH) 13
Temperature Compensation Yes
ATC Connector Mini-audio plug
ATC Element 100 Ω Pt RTD
Connector BNC
Diameter (mm) 27
Length (mm) 914.4
Length (in) 36
Cable Length (m) 3
Description Submersible 3' L pH Probe, DJ/ABS/100Ohm RTD; Plug/BNC
