Testo 882 Thermal Imager Kit - 0560 0882 70

Testo 882 Thermal Imager Kit - 0560 0882 70

$6,613.00

0560 0882 70 882 Thermal Imager Kit by Testo

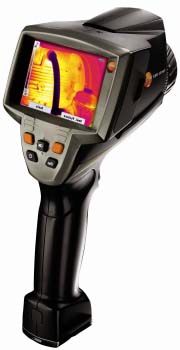

With the thermal imager testo 882, you test materials and components reliably and securely. The testo 882 in ergonomic pistol design stands out thanks to very high-resolution thermal images and a high thermal sensitivity. This allows you to identify every detail on the measurement object completely non-intrusively, and detect anomalies and weak spots more easily even at a great distance. For you, that means: You see more and have more security when measuring thermographically!

  • Detector size 320 x 240 pixels: With 76.800 temperature measurement points, the measurement objects are detected in excellent image quality, very clearly and precisely.
  • Super Resolution technology to 320 x 240 pixels: Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
  • Thermal sensitivity < 60 mK: Thanks to an excellent temperature resolution of < 60 mK, even the smallest temperature differences are visible.

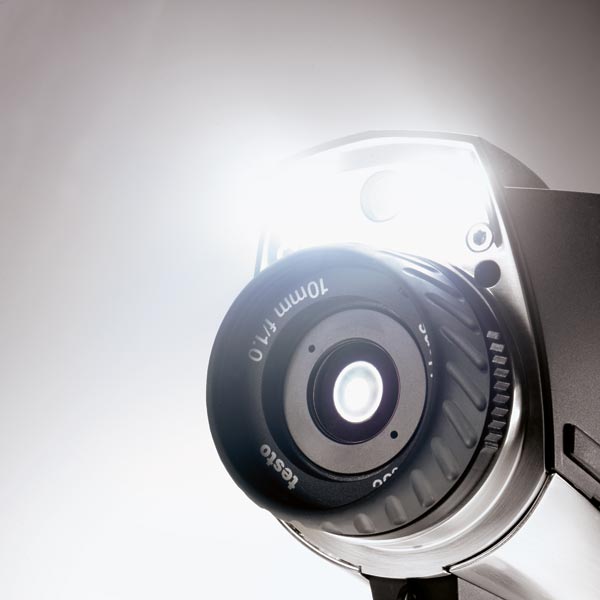

  • Large field of view thanks to 32° lens: With the lightweight 32° wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
  • Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image
  • Special measurement mode for detecting areas with danger of mould: Using the externally measured ambient temperature and air humidity, as well as the surface temperature, the humidity value of each measurement point is caculated and shown in the display as areal humidity image.
  • High temperature up to 550°C: With the high temperature option, the measuring range can be flexibly extended up to 550°C.
  • Integrated digital camera: Power LED's
  • Voice recording using headset
  • Intuitive operation

The thermal imager testo 882 is delivered in a robust case incl.

  • Pro software
  • Soft-Case
  • Carrying strap
  • SD card
  • USB cable
  • Mains unit
  • Li-ion rechargeable battery
  • Adapter for tripod mounting
  • Lens protection glass
  • Headset
Infrared image output
Detector type FPA 320 x 240 pixels, a.Si
Thermal sensitivity (NETD) <50 mK at +30 °C
Field of view/min. focus distance 32° x 23° / 0.2 m
Geometric resolution (IFOV) 1.7 mrad
Super Resolution (pixel / IFOV) - optional 640 x 480 pixels / 1.1 mrad
Image refresh rate 33 Hz*
Focus manual and motor focus
Spectral range 8 to 14 μm
Image output visual
Image size / min. focus distance 640 x 480 pixels / 0.4 m
Image presentation
Image display 3.5" LCD with 320 x 240 pixels
Display options IR image only / real image only / IR and real image
Video output USB 2.0
Colour palettes 10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
Measurement
Temperature range -20 to +100°C / 0 to +350 °C (switchable)
High temperature measurement - optional +350 to +550 °C
Accuracy ±2 °C, ±2% of mv / (±3% of mv at +350 to +550 °C)
Emissivity / reflected temperature 0.01 to 1 / manual
Measuring functions
Display of surface moisture distribution (using manual input)
Humidity measurement with radio humidity probe (automatic measurement value transfer in real time)** (✓)
Solar mode
Analysis function up to 2 measurement points, Hot/Cold Spot Recognition, Isotherms, Area measurement (Min-/Max on Area)
Imager equipment
Digital camera
Power LEDs
Motor focus
Standard lens 32° x 23°
Laser (laser classification 635 nm, Class 2)***
Voice recording wired headset
Video streaming (via USB)
Image storage
File format .bmt; export option in .bmp, .jpg, .png, .csv, .xls
Storage device SD card 2 GB (approx. 1.000 images)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time 4 hours
Charging options In instrument/in charging station (optional)
Mains operation yes
Ambient conditions
Operating temperature range -15 to +40 °C
Storage temperature range -30 to +60 °C
Air humidity +20 to +80% non-condensing
Housing protection class (IEC 60529) IP54
Vibration (IEC 60068-2-6) 2G
Physical specifications
Weight Approx. 900 g
Dimensions (L x W x H) in mm 152 x 108 x 262 mm
Tripod mounting M6
Housing ABS
PC software
System requirements Windows XP (Service Pack 3), Windows Vista, Windows 7 (Service Pack 1), interface USB 2.0
Standards, tests, warranty
EU Directive 2004 / 108 / EC
Warranty 2 years
