875-875i-876-882-885-890 Thermal Imagers

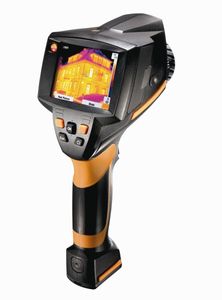

0560 8751 875-1 Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager testo 875-1. This allows you to visualize problems in industrial maintenance and production monitoring before a malfunction or a fire risk occurs. With the testo 875-1, you are on the trail of energy loss in building thermography, helping your customers to save expensive heating costs. You therefore save time, energy and money in industrial thermography as well as in building thermography, and ensure more security allround.

• Detector size 160 x 120 pixels: With 19,200 temperature measurement points, the measurement objects are detected in very good image quality, clearly and precisely.
• Super Resolution technology to 320 x 240 pixels: Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
• Thermal sensitivity < 80 mK: Thanks to an excellent temperature resolution of < 80 mK, even small temperature differences are visible.

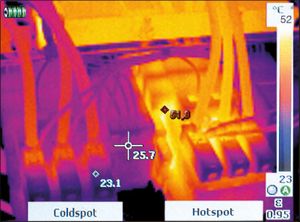

• Automatic Hot/Cold Spot Recognition: Critical temperature stati are directly displayed using the automatic Hot-Cold-Spot recognition.
• Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image.
• Lens protection glass

The thermal imager testo 875-1 is delivered in a robust case incl.

• Pro software
• Soft-Case
• Carrying strap
• SD card
• USB cable
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery
• Adapter for tripod mounting

0563 0875 71 875i-1 Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager testo 875-1i. This allows you to visualize problems in industrial maintenance and production monitoring before a malfunction or a fire risk occurs. With the testo 875-1i, you are on the trail of energy loss in building thermography, helping your customers to save expensive heating costs. You therefore save time, energy and money in industrial thermography as well as in building thermography, and ensure more security allround.

• Detector size 160 x 120 pixels: With 19,200 temperature measurement points, the measurement objects are detected in very good image quality, clearly and precisely.
• Super Resolution technology at 320 x 240 pixels: With Super Resolution technology, the image quality is improved by one class, i.e. the resolution of the thermal images is four times higher.
• Thermal sensitivity < 50 mK: Thanks to an excellent temperature resolution of < 50 mK, even small temperature differences are visible.
• Integrated digital camera: Parallel to the thermal image, a real image of each measurement object is also stored.
• Automatic Hot/Cold Spot Recognition: Critical temperature stati are directly displayed using the automatic Hot-Cold-Spot recognition.
• Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image.
• Intuitive operation

The thermal imager testo 875-2 is delivered in a robust case incl.

• Pro software
• Soft-Case
• Carrying strap
• SD card
• USB cable
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery
• Adapter for tripod mounting

0563 0875 72 875i-2 Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager testo 875-2i. This allows you to visualize problems in industrial maintenance and production monitoring before a malfunction or a fire risk occurs. With the testo 875-2i, you are on the trail of energy loss in building thermography, helping your customers to save expensive heating costs. You therefore save time, energy and money in industrial thermography as well as in building thermography, and ensure more security allround.

• Detector size 160 x 120 pixels: With 19,200 temperature measurement points, the measurement objects are detected in very good image quality, clearly and precisely.
• Super Resolution technology at 320 x 240 pixels: With Super Resolution technology, the image quality is improved by one class, i.e. the resolution of the thermal images is four times higher.
• Thermal sensitivity < 50 mK: Thanks to an excellent temperature resolution of < 50 mK, even small temperature differences are visible.
• Built-in digital camera with power LED's: Parallel to the thermal image, a real image of each measurement object is also stored. The power LED's guarantee optimum illumination of dark areas when recording real images.
• Automatic Hot/Cold Spot Recognition: Critical temperature stati are directly displayed using the automatic Hot-Cold-Spot recognition.
• Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image.
• Special measurement mode for detecting areas with danger of mould: Using the externally measured ambient temperature and air humidity, as well as the surface temperature, the humidity value of each measurement point is caculated and shown in the display as areal humidity image. Humidity measurement with radio humidity probe (optional).
• High temperature up to 550°C: With the high temperature option, the measuring range can be flexibly extended up to 550°C.
• Exchangeable lenses (optional)
• Voice recording using headset
• Intuitive operation

The thermal imager testo 875-2 is delivered in a robust case incl.

• Pro software
• Soft-Case
• Carrying strap
• SD card
• USB cable
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery
• Adapter for tripod mounting

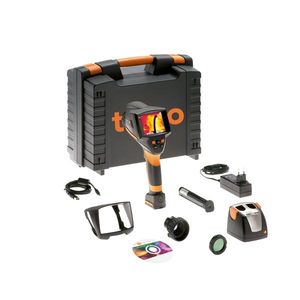

0563 0875 73 875i-2 Deluxe Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager testo 875-2i set. This allows you to visualize problems in industrial maintenance and production monitoring before a malfunction or a fire risk occurs. With the testo 875-2i, you are on the trail of energy loss in building thermography, helping your customers to save expensive heating costs. With the new thermal imager testo 875-2i, you save time, energy and money in industrial thermography as well as in building thermography, and ensure more security allround.

• Detector size 160 x 120 pixels: With 19,200 temperature measurement points, the measurement objects are detected in very good image quality, clearly and precisely.
• Super Resolution technology at 320 x 240 pixels: With Super Resolution technology, the image quality is improved by one class, i.e. the resolution of the thermal images is four times higher.
• Thermal sensitivity < 50 mK: Thanks to an excellent temperature resolution of < 50 mK, even the smallest temperature differences are visible.
• Built-in digital camera with power LED's: Parallel to the thermal image, a real image of each measurement object is also stored. The power LED's guarantee optimum illumination of dark areas when recording real images.
• Automatic Hot/Cold Spot Recognition: Critical temperature stati are directly displayed using the automatic Hot-Cold-Spot recognition.
• Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image.
• Special measurement mode for detecting areas with danger of mould: Using the externally measured ambient temperature and air humidity, as well as the surface temperature, the humidity value of each measurement point is caculated and shown in the display as areal humidity image. Humidity measurement with radio humidity probe (optional).
• High temperature up to 550°C: With the high temperature option, the measuring range can be flexibly extended up to 550°C.

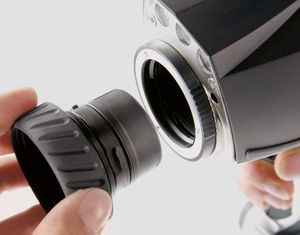

• Exchangeable lenses
• Voice recording using headset
• Intuitive operationv

The thermal imager testo 875-2 is delivered in a robust case incl.

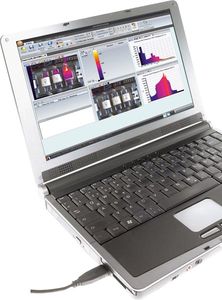

• Pro software
• Soft-Case
• Carrying strap
• SD card
• USB cable
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery
• Adapter for tripod mounting
• Headset
• Telephoto lens 9° x 7°
• Lens protection glass
• Additional battery
• Fast battery charger

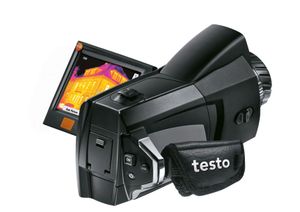

0560 8763 876 Thermal Imager Kit by Testo

With the thermal imager testo 876, you keep the flexible rotatable fold-out display in view when taking thermographic measurements in any position, securely reaching every corner. This allows you to identify anomalies and weak spots completely non-intrusively in buildings, mechanical components, photovoltaic systems or switching cabinets. For you, that means a better overview, providing more security when measuring thermographically.

• Detector size 160 x 120 pixels: With 19,200 temperature measurement points, the measurement objects are detected in very good image quality, clearly and precisely.
• Super Resolution technology to 320 x 240 pixels: Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.

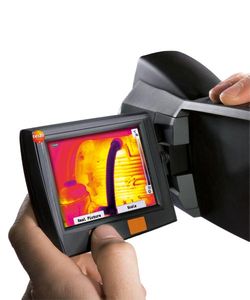

• Flexible fold-out, rotatable display
• Thermal sensitivity < 80 mK: Thanks to an excellent temperature resolution of < 80 mK, even small temperature differences are visible.
• Integrated digital camera: Parallel to the thermal image, a real image of each measurement object is also stored.
• Voice recording using headset: Voice recording allows each thermal imager to be recorded with a comment. This valuable information is stored together with the thermal image.
• Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image.
• Special measurement mode for detecting areas with danger of mould: Using the externally measured ambient temperature and air humidity, as well as the surface temperature, the humidity value of each measurement point is caculated and shown in the display as areal humidity image.
• Exchangeable lenses
• Motor focus for one-hand operation

The thermal imager testo 876 is delivered in a robust case incl.

• Pro software
• Carrying strap
• SD card
• USB cable
• Lens cleaning cloth
• Headset
• Mains unit
• Li-ion rechargeable battery

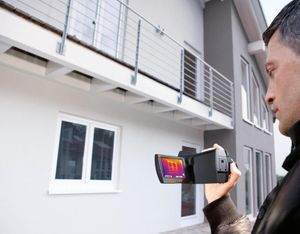

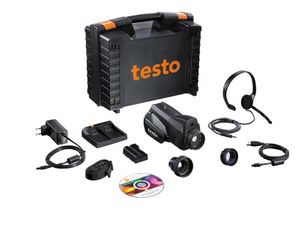

0560 8764 876 Deluxe Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager testo 876. The testo 876 stands out thanks to its large rotatable display. This allows you to keep the display in view when thermographing in any position, securely reaching every corner. Thanks to exchangeable lenses, you can guarantee that you always have the right image section in your display. For you, that means: You see more and have more flexibility when thermographing.

• Detector size 160 x 120 pixels: With 19,200 temperature measurement points, the measurement objects are detected in very good image quality, clearly and precisely.
• Super Resolution technology to 320 x 240 pixels: Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
• Flexible fold-out, rotatable display
• Thermal sensitivity < 80 mK: Thanks to an excellent temperature resolution of < 80 mK, even small temperature differences are visible.
• Integrated digital camera: Parallel to the thermal image, a real image of each measurement object is also stored.
• Voice recording using headset: Voice recording allows each thermal imager to be recorded with a comment. This valuable information is stored together with the thermal image.
• Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image.
• Special measurement mode for detecting areas with danger of mould: Using the externally measured ambient temperature and air humidity, as well as the surface temperature, the humidity value of each measurement point is caculated and shown in the display as areal humidity image.

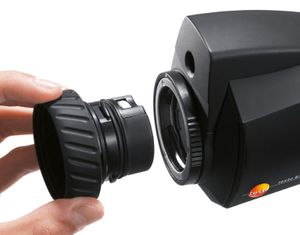

• Exchangeable lenses
• Motor focus for one-hand operation

The thermal imager set testo 876 is delivered in a robust case incl.

• Pro software
• Soft-Case
• Carrying strap
• SD card
• USB cable
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery
• Adapter for tripod mounting
• Telephoto lens 9° x 7°
• Lens protection glass
• Additional battery
• Fast battery charger

0560 0882 70 882 Thermal Imager Kit by Testo

With the thermal imager testo 882, you test materials and components reliably and securely. The testo 882 – in ergonomic pistol design – stands out thanks to very high-resolution thermal images and a high thermal sensitivity. This allows you to identify every detail on the measurement object completely non-intrusively, and detect anomalies and weak spots more easily even at a great distance. For you, that means: You see more and have more security when measuring thermographically!

• Detector size 320 x 240 pixels: With 76.800 temperature measurement points, the measurement objects are detected in excellent image quality, very clearly and precisely.
• Super Resolution technology to 320 x 240 pixels: Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
• Thermal sensitivity < 60 mK: Thanks to an excellent temperature resolution of < 60 mK, even the smallest temperature differences are visible.
• Large field of view thanks to 32° lens: With the lightweight 32° wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
• Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image
• Special measurement mode for detecting areas with danger of mould: Using the externally measured ambient temperature and air humidity, as well as the surface temperature, the humidity value of each measurement point is caculated and shown in the display as areal humidity image.
• High temperature up to 550°C: With the high temperature option, the measuring range can be flexibly extended up to 550°C.
• Integrated digital camera: Power LED's
• Voice recording using headset
• Intuitive operation

The thermal imager testo 882 is delivered in a robust case incl.

• Pro software
• Soft-Case
• Carrying strap
• SD card
• USB cable
• Mains unit
• Li-ion rechargeable battery
• Adapter for tripod mounting
• Lens protection glass
• Headset

0563 0885 71 885-1 Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager testo 885-1. Thanks to the 320 x 240-pixel detector, in combination with the high-quality Germanium optics, the testo 885-1 achieves an excellent image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography. In combination with the Testo Super Resolution technology, the testo 885-1 records high-resolution thermal images in excellent quality (640 x 480 pixels). This means that even the smallest or very distant measurement objects can be thermographed very precisely.

• Detector size 320 x 240 pixels: With 76.800 temperature measurement points, the measurement objects are detected in outstanding image quality, extremely clearly and precisely.
• Super Resolution technology to 640 x 480 pixels Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.

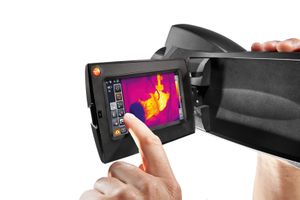

• Flexibility thanks to rotatable handle and fold-out, rotatable display
• Thermal sensitivity < 30 mK, Thanks to an excellent temperature resolution of < 30 mK, even the smallest temperature differences are visible.
• Large field of view thanks to 30° lens With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
• Panorama image assistant For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
• Site Recognition Technology For repetitive thermography of similar measurement objects, the Site Recognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
• High temperature up to 1200°C With the high temperature option, the measuring range can be flexibly extended up to 1200 °C.
• Special measurement mode for detecting areas with danger of mould
• Lens protection glass
• Auto focus
• Built-in digital camera with power LEDs
• Minimum focus distance 10 cm
• Voice recording using headset

The thermal imager testo 885-1 is delivered in a robust case incl.

• Pro software
• SD card
• USB cable
• Carrying strap
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery

0563 0885 72 885-2 Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager testo 885-2. Thanks to the 320 x 240-pixel detector, in combination with the high-quality Germanium optics, the testo 885-2 achieves an excellent image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography. In combination with the Testo Super Resolution technology, the testo 885-2 records high-resolution thermal images in excellent quality (640 x 480 pixels). This means that even the smallest or very distant measurement objects can be thermographed very precisely.

• Detector size 320 x 240 pixels: With 76.800 temperature measurement points, the measurement objects are detected in outstanding image quality, extremely clearly and precisely.
• Super Resolution technology to 640 x 480 pixels Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
• Flexibility thanks to rotatable handle and fold-out, rotatable display
• Thermal sensitivity < 30 mK, Thanks to an excellent temperature resolution of < 30 mK, even the smallest temperature differences are visible.
• Large field of view thanks to 30° lens With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
• Panorama image assistant For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
• Site Recognition Technology For repetitive thermography of similar measurement objects, the Site Recognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
• High temperature up to 1200°C With the high temperature option, the measuring range can be flexibly extended up to 1200 °C.
• Special measurement mode for detecting areas with danger of mould
• Lens protection glass
• Auto focus
• Built-in digital camera with power LEDs
• Minimum focus distance 10 cm
• Voice recording using headset

The thermal imager testo 885-1 is delivered in a robust case incl.

• Pro software
• SD card
• USB cable
• Carrying strap
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery

0563 0885 73 885-2 Deluxe Thermal Imager Kit by Testo

You can carry out completely non-intrusive tests on materials and components with the thermal imager set testo 885-2. Thanks to the 320 x 240-pixel detector, in combination with the high-quality Germanium optics, the set testo 885-2 achieves an excellent image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography. In combination with the Testo Super Resolution technology, the set testo 885-2 records high-resolution thermal images in excellent quality (640 x 480 pixels). This means that even the smallest or very distant measurement objects can be thermographed very precisely.

• Detector size 320 x 240 pixels: With 76.800 temperature measurement points, the measurement objects are detected in outstanding image quality, extremely clearly and precisely.
• Super Resolution technology to 640 x 480 pixels Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
• Flexibility thanks to rotatable handle and fold-out, rotatable display
• Thermal sensitivity < 30 mK, Thanks to an excellent temperature resolution of < 30 mK, even the smallest temperature differences are visible.
• Large field of view thanks to 30° lens With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
• Panorama image assistant For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
• Site Recognition Technology For repetitive thermography of similar measurement objects, the Site Recognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
• High temperature up to 1200°C With the high temperature option, the measuring range can be flexibly extended up to 1200 °C.
• Special measurement mode for detecting areas with danger of mould
• Lens protection glass
• Auto focus
• Built-in digital camera with power LEDs
• Minimum focus distance 10 cm
• Voice recording using headset

The thermal imager testo 885-1 is delivered in a robust case incl.

• Pro software
• SD card
• USB cable
• Carrying strap
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery
• Exchangeable lenses
• Lens protection glass
• Additional battery
• Fast battery charger
• Headset

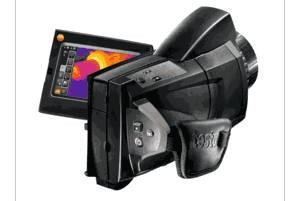

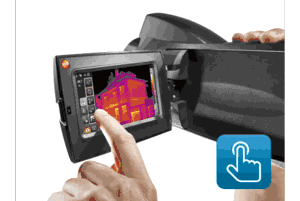

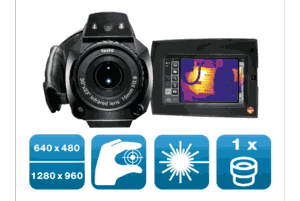

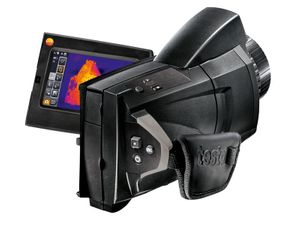

0563 0890 71 890-1 Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager testo 890-1. Thanks to the 640 x 480-pixel detector, in combination with the high-quality Germanium optics, the testo 890-1 achieves the highest level of image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography. In combination with the Testo Super Resolution technology, the testo 890-1 records extremely high-resolution images in megapixel quality (1280x960 pixels). This means that even the smallest or very distant measurement objects can be thermographed with an extremely high level of precision.

• Detector size 640 x 480 pixels: With 307,200 temperature measurement points, the measurement objects are detected in outstanding image quality, extremely clearly and precisely.
• Super Resolution technology to 1280 x 960 pixels Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.

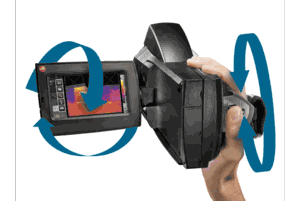

• Flexibility thanks to rotatable handle and fold-out, rotatable display
• Thermal sensitivity < 40 mK Thanks to an excellent temperature resolution of < 40 mK, even the smallest temperature differences are visible.
• Large field of view thanks to 42° lens With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
• Panorama image assistant For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
• Site Recognition Technology For repetitive thermography of similar measurement objects, the SiteRecognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
• High temperature up to 1200°C With the high temperature option, the measuring range can be flexibly extended up to 1200 °C.
• Special measurement mode for detecting areas with danger of mould
• Lens protection glass
• Auto focus
• Built-in digital camera with power LEDs
• Minimum focus distance 10 cm
• Voice recording using headset

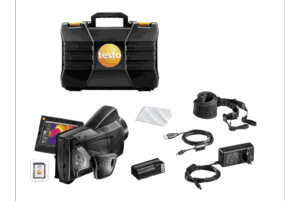

The thermal imager testo 890-1 is delivered in a robust case incl.

• Pro software
• SD card
• USB cable
• Carrying strap
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery

0563 0890 72 890-2 Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager set testo 890-2 Set. Thanks to the 640 x 480-pixel detector, in combination with the high-quality Germanium optics, the set testo 890-2 Set achieves the highest level of image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography. In combination with the Testo SuperResolution technology, the set testo 890-2 Set records extremely high-resolution images in megapixel quality (1280x960 pixels). This means that even the smallest or very distant measurement objects can be thermographed with an extremely high level of precision.

• Detector size 640 x 480 pixels: With 307,200 temperature measurement points, the measurement objects are detected in outstanding image quality, extremely clearly and precisely.
• SuperResolution technology to 1280 x 960 pixels Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
• Flexibility thanks to rotatable handle and fold-out, rotatable display
• Thermal sensitivity < 40 mK Thanks to an excellent temperature resolution of < 40 mK, even the smallest temperature differences are visible.
• Large field of view thanks to 42° lens With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
• Panorama image assistant For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
• Site Recognition Technology For repetitive thermography of similar measurement objects, the SiteRecognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
• High temperature up to 1200°C With the high temperature option, the measuring range can be flexibly extended up to 1200 °C.
• Exchangeable lenses
• Special measurement mode for detecting areas with danger of mould
• Lens protection glass
• Auto focus
• Built-in digital camera with power LEDs
• Minimum focus distance 10 cm
• Voice recording using headset

The thermal imager testo 890-1 is delivered in a robust case incl.

• Pro software
• SD card
• USB cable
• Carrying strap
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery
• Exchangeable lenses
• Lens protection glass
• Additional battery
• Fast battery charger
• Headset

0563 0890 73 890-2 Deluxe Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager set testo 890-2 Set. Thanks to the 640 x 480-pixel detector, in combination with the high-quality Germanium optics, the set testo 890-2 Set achieves the highest level of image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography.

In combination with the Testo SuperResolution technology, the set testo 890-2 Set records extremely high-resolution images in megapixel quality (1280x960 pixels). This means that even the smallest or very distant measurement objects can be thermographed with an extremely high level of precision.

• Detector size 640 x 480 pixels: With 307,200 temperature measurement points, the measurement objects are detected in outstanding image quality, extremely clearly and precisely.
• SuperResolution technology to 1280 x 960 pixels SuperResolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.
• Flexibility thanks to rotatable handle and fold-out, rotatable display
• Thermal sensitivity < 40 mK Thanks to an excellent temperature resolution of < 40 mK, even the smallest temperature differences are visible.
• Large field of view thanks to 42° lens With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
• Panorama image assistant For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
• Site Recognition Technology For repetitive thermography of similar measurement objects, the SiteRecognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
• High temperature up to 1200°C With the high temperature option, the measuring range can be flexibly extended up to 1200 °C.
• Fully radiometric video measurement incl. logger function (via USB) With the optional fully radiometric video measurement thermal processes can be thermally analyzed in real time (also periodically and event based). For every instant, all temperature measurement points are exactly available per pixel.
• Exchangeable lenses
• Special measurement mode for detecting areas with danger of mould
• Lens protection glass
• Auto focus
• Built-in digital camera with power LEDs
• Minimum focus distance 10 cm
• Voice recording using headset

The thermal imager set testo 890-2 is delivered in a robust case incl.

• Pro software
• SD card
• USB cable
• Carrying strap
• Lens cleaning cloth
• Mains unit
• Li-ion rechargeable battery
• Exchangeable lenses
• Lens protection glass
• Additional battery
• Fast battery charger
• Headset
