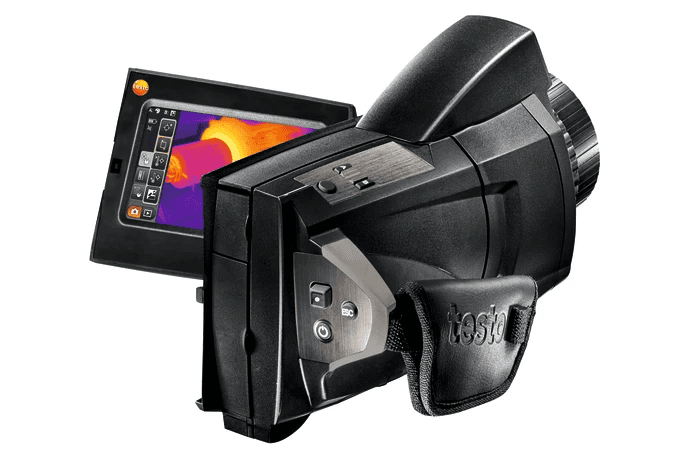

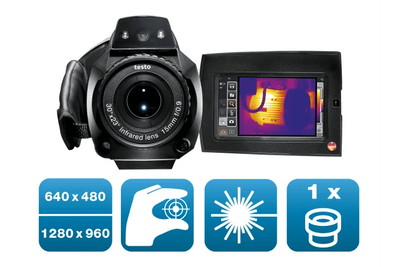

Testo 890 Thermal Imager X1 - with one lens - 0563 0890

Item #:

0563-0890

Brand:

Testo

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

0563 0890 890 Thermal Imager X1 - with one lens by Testo

The thermal imager testo 890 offers outstanding image quality for the highest thermographic demands. Thanks to the high-quality infrared measurement system with a 640 x 480-pixel detector, thermal images can be recorded in megapixel quality (1290 x 960) using the SuperResolution technology. This means that even the smallest measurement objects such as electronic components or far distant measurement objects, e.g. on industrial plants, can be safely recorded thermographically in best image quality and high resolution. Even thermal processes can be precisely analyzed over time using the fully radiometric video measurement: all measurement points of the thermal image are available, accurate to the pixel, at all times.

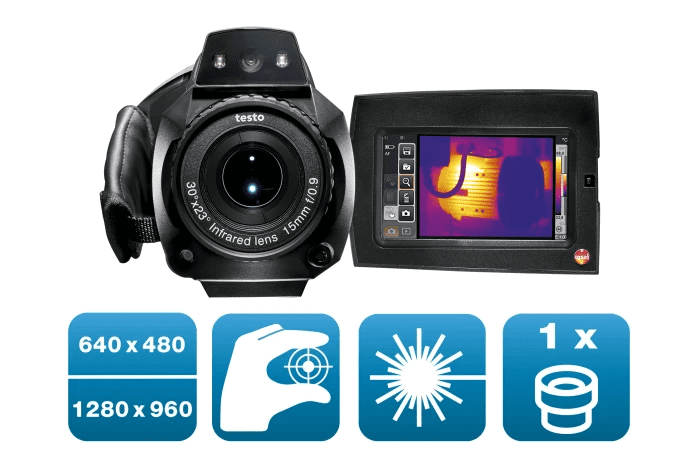

Infrared resolution 640 x 480 pixels
testo SuperResolution technology to 1280 x 960 pixels
Thermal sensitivity < 40 mK

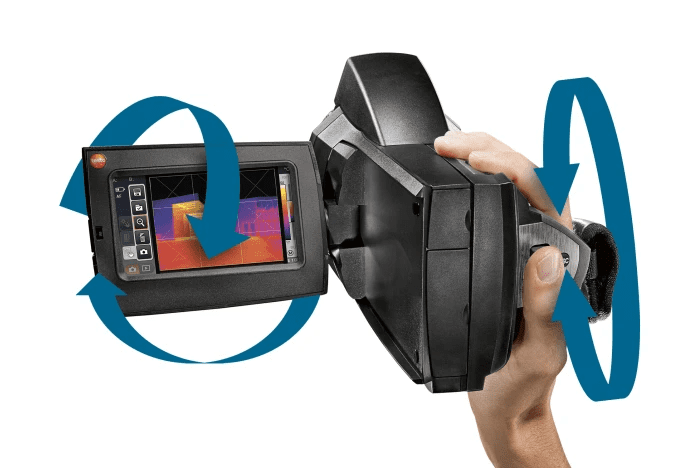

Flexibility thanks to rotatable handle and fold-out, rotatable display
Exchangeable lenses
Special measurement mode for mould-risk areas
High temperature measurement up to 1,200 °C
Panorama image assistant
SiteRecognition technology
Fully radiometric video measurement and image sequence capturing

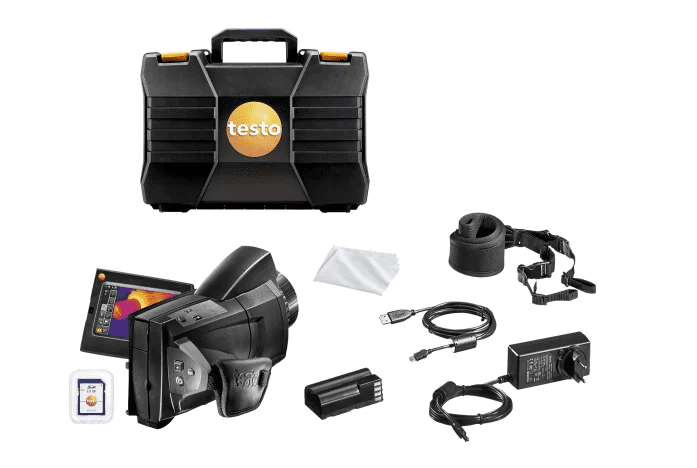

Includes

testo 890 thermal imager with SuperResolution
1 x lens (choice between standard, 25° and telephoto lens)
Robust transport case
Pro software IRSoft (free download)
SD card
USB cable
Carrying strap
Lens cleaning cloth
Mains unit
Li-ion rechargeable battery

Specifications

Standards
EU-/EG-guidelines	2004/108/EG
Infrared image output
Field of view	42° x 32° (Standard lens), 25° x 19° (25° lens), 15° x 11° (Telephoto lens), 6.6° x 5° (Supertele)
Focus	auto / manual
Minimum focus distance	0.1 m (Standard lens), 0.2 m (25° lens), 0.5 m (Telephoto lens), 2 m (Supertele)
Geometric resolution (IFOV)	1.13 mrad (Standard lens), 0.68 mrad (25° lens), 0.42 (Telephoto lens), 0.18 (Supertele)
Image refresh rate	33 Hz*
Infrared resolution	640 x 480 pixels
SuperResolution (IFOV)	0.71 mrad (Standard lens), 0.43 mrad (25° lens), 0.26 mrad (Telephoto lens), 0.11 mrad (Supertele)
SuperResolution (Pixel)	1280 x 960 pixels
Thermal sensitivity	˂ 40 mK at +30 °C
Spectral range	7.5 to 14 µm
Image output visual
Minimum focus distance	0.5 ft. / 0.5 m
Image size	3.1 MP
Image presentation
Color palettes	9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo)
Digital zoom	1-; 3-fold
Display option	IR image / real image

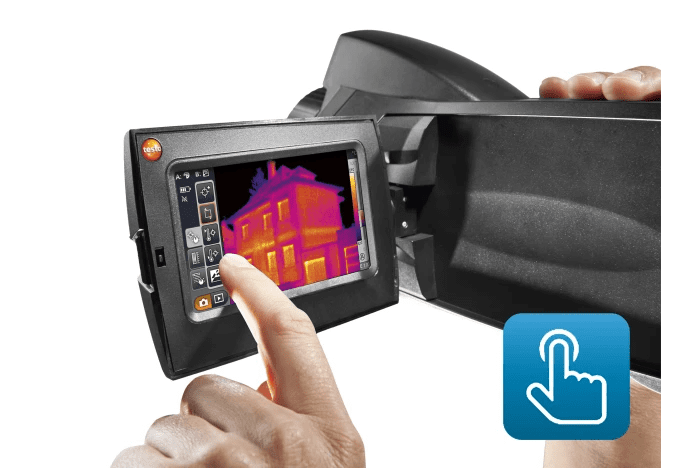

Display type	4.3" LCD touchscreen with 480 x 272 pixels
Video output	USB 2.0, Micro HDMI
Measurement
Accuracy	±2% of reading
Emissivity	0.01; 1
High temperature measuring	2192°F (not in connection with the telephoto lens)
Measuring range	-30 to +100°C; 0 to +350 °C (switchable); 0 to +650 °C (switchable)
Reflected temperature	manual
Transmission correction	Included
Accuracy high temperature	±2% of reading
Measuring function
Analysis function	up to 10 measurement points, Hot/Cold Spot Recognition, up to 5 x area measurement (min/max & average), Isotherm and alarm values
Humidity measurement	Optional
Solar mode	Included
Surface moisture distribution	Included
Humidity measurement with humidity measuring instrument	with radio humidity probe; (automatic measurement value transfer in real time); *Wireless humidity probes only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Brazil, Chile, Mexico, New Zealand, Indonesia
Imager equipment
Exchangeable lenses	25° x 19°; 15° x 11°; 6.6° x 5°
Voice recording	Bluetooth® / wired headset
Video measurement	up to 3 measurement points
Standard lens	42° x 32°
SiteRecognition	Included
Process analysis package	Optional
Power-LED	Included
Panorama image assistant	Included
Laser	Laser marker
JPEG storage	included
Digital camera	Included
Interface	Labview; free download from hompage; USB
Fever detection	Optional
Imager storage
File format image	.bmt; software export option in .bmp; .jpg; .png; .csv; .xls
File format video	.wmv; .mpeg-1; Testo format (fully radiometric video)
Storage device	SD cart 2GB (approx. 1500 - 2000 images)
Power supply
Battery type	Fast-charging, Li-ion battery can be changed on-site
Charging options	In instrument / USB charger
Power supply	yes
Operating time	4.5 hr
Ambient Condition
Air humidity	20 to 80 % RH non-condensing
Housing protection class	IP54
Vibration	2G
Storage temperature	-22.0° to 140.0 °F / -30 to +60 °C
Operating temperature	5° to 122 °F / -15 to +50 °C
Physical specification
Housing	ABS
Tripod mounting	1/4" - 20UNC
Weight	57.497 oz. / 1,630 g 57 oz. / 1630 g
Dimensions	10.0 x 5.2 x 4.4 in. / 253 x 132 x 111 mm
PC software
System requirements	Windows® 11 ; Windows® 10; Windows 8; Windows 7 (Service Pack 1); Windows Vista; Interface: USB 2.0

Datasheets & User Manuals

$14,995.00
