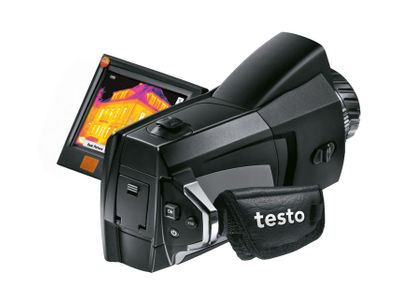

Testo 876 Thermal Imager Kit - 0560 8763

Testo 876 Thermal Imager Kit - 0560 8763


0560 8763 876 Thermal Imager Kit by Testo

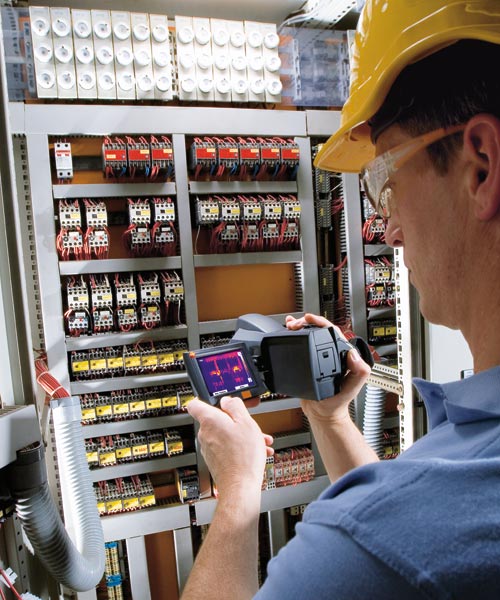

With the thermal imager testo 876, you keep the flexible rotatable fold-out display in view when taking thermographic measurements in any position, securely reaching every corner. This allows you to identify anomalies and weak spots completely non-intrusively in buildings, mechanical components, photovoltaic systems or switching cabinets. For you, that means a better overview, providing more security when measuring thermographically.

  • Detector size 160 x 120 pixels: With 19,200 temperature measurement points, the measurement objects are detected in very good image quality, clearly and precisely.
  • Super Resolution technology to 320 x 240 pixels: Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.

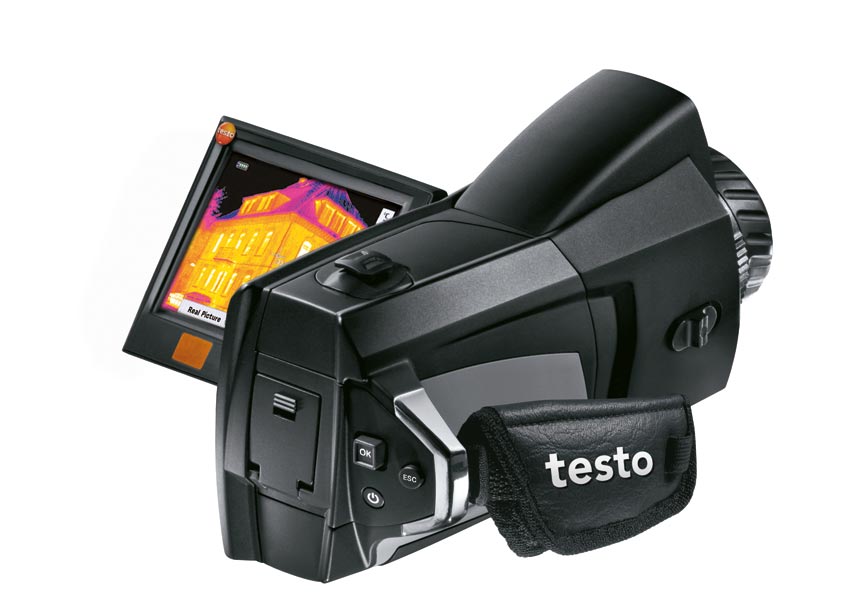

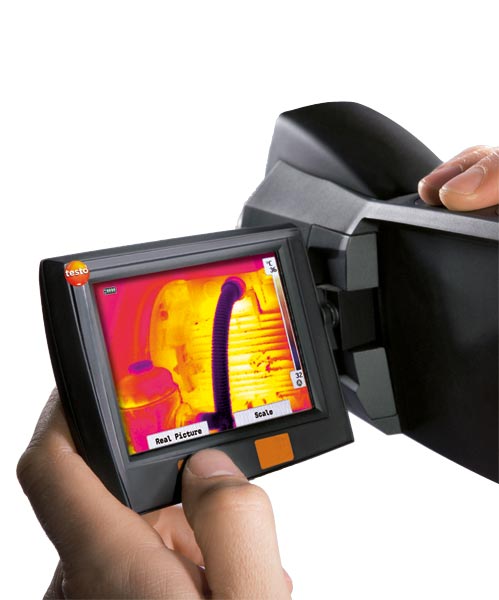

  • Flexible fold-out, rotatable display
  • Thermal sensitivity < 80 mK: Thanks to an excellent temperature resolution of < 80 mK, even small temperature differences are visible.
  • Integrated digital camera: Parallel to the thermal image, a real image of each measurement object is also stored.
  • Voice recording using headset: Voice recording allows each thermal imager to be recorded with a comment. This valuable information is stored together with the thermal image.
  • Solar mode: For each measurement, the sun irradiation value can be entered into the camera. This value is stored for each thermal image.
  • Special measurement mode for detecting areas with danger of mould: Using the externally measured ambient temperature and air humidity, as well as the surface temperature, the humidity value of each measurement point is caculated and shown in the display as areal humidity image.
  • Exchangeable lenses
  • Motor focus for one-hand operation

The thermal imager testo 876 is delivered in a robust case incl.

  • Pro software
  • Carrying strap
  • SD card
  • USB cable
  • Lens cleaning cloth
  • Headset
  • Mains unit
  • Li-ion rechargeable battery
Infrared image output
Detector type FPA 160 x 120 pixels, a.Si
Thermal sensitivity (NETD) <80 mK at +30 °C
Field of view/min. focus distance 32° x 23° / 0.1 m (standard lens),
9° x 7° / 0.5 m (telephoto lens)
Geometric resolution (IFOV) 3.3 mrad (standard lens),
1.0 mrad (telephoto lens)
Super Resolution (pixel / IFOV) - optional 320 x 240 pixels /
2.1 mrad (standard lens),
0.6 mrad (telephoto lens)
Image refresh rate 9 Hz
Focus manual and motor focus
Spectral range 8 to 14 μm
Image output visual
Image size / min. focus distance 640 x 480 pixels / 0.4 m
Image presentation
Image display 3.5" fold-out LCD with 320 x 240 pixels
Display options IR image only / real image only / IR and real image
Video output USB 2.0
Colour palettes 10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
Temperature range -20 to +100°C / 0 to +280 °C (switchable)
Accuracy ±2 °C, ±2% of mv
Emissivity / reflected temperature 0.01 to 1 / manual
Measuring functions
Display of surface moisture distribution (using manual input)
Solar mode
Analysis function Standard measurement (1-point) Hot/Cold Spot Recognition, Isotherms, Area measurement (Min-/Max on Area)
Imager equipment
Digital camera
Motor focus
Standard lens 32° x 23°
Exchangeable lenses - optional 9° x 7°
Voice recording wired headset
Video streaming (via USB)
Image storage
File format .bmt; export option in .bmp, .jpg, .png, .csv, .xls
Storage device SD card 2GB (approx. 2.000 images)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time 4 hours
Charging options In instrument/in charging station (optional)
Mains operation yes
Ambient conditions
Operating temperature range -15 to +40 °C
Storage temperature range -30 to +60 °C
Air humidity +20 to +80% non-condensing
Housing protection class (IEC 60529) IP54
Vibration (IEC 60068-2-6) 2G
Physical specifications
Weight Approx. 900 g
Dimensions (L x W x H) in mm 210 x 85 x 97
Tripod mounting 1/4" - 20UNC
Housing ABS
PC software
System requirements Windows XP (Service Pack 3), Windows Vista, Windows 7 (Service Pack 1), interface USB 2.0
Standards, tests, warranty
EU Directive 2004 / 108 / EC
Warranty 2 years
