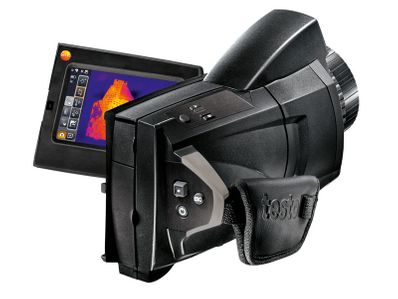

Testo 890-2 Thermal Imager Kit - 0563 0890 72

Testo 890-2 Thermal Imager Kit - 0563 0890 72

$18,995.00

0563 0890 72 890-2 Thermal Imager Kit by Testo

You can carry out completely damage-free tests on materials and components with the thermal imager set testo 890-2 Set. Thanks to the 640 x 480-pixel detector, in combination with the high-quality Germanium optics, the set testo 890-2 Set achieves the highest level of image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography. In combination with the Testo SuperResolution technology, the set testo 890-2 Set records extremely high-resolution images in megapixel quality (1280x960 pixels). This means that even the smallest or very distant measurement objects can be thermographed with an extremely high level of precision.

  • Detector size 640 x 480 pixels: With 307,200 temperature measurement points, the measurement objects are detected in outstanding image quality, extremely clearly and precisely.
  • SuperResolution technology to 1280 x 960 pixels Super Resolution technology improves the image quality by one class, i.e. the resolution of the thermal images is four times higher.

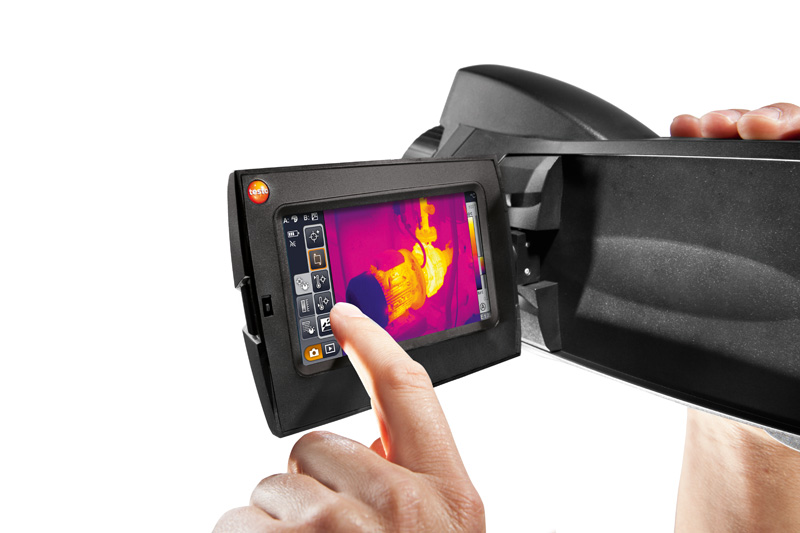

  • Flexibility thanks to rotatable handle and fold-out, rotatable display
  • Thermal sensitivity < 40 mK Thanks to an excellent temperature resolution of < 40 mK, even the smallest temperature differences are visible.
  • Large field of view thanks to 42° lens With the standard wide-angle lens, large image sections are immediately recognized, and the temperature distribution of the measurement object recorded at a glance.
  • Panorama image assistant For large measurement objects, the panorama image assistant allows the analysis and documentation of a total image stitched together from many individual images. There is no need to administer, view and compare several images.
  • Site Recognition Technology For repetitive thermography of similar measurement objects, the SiteRecognition technology offers the direct recognition, allocation and archiving of the measurement sites, as well as the automatic allocation and archiving of the the thermal images.
  • High temperature up to 1200°C With the high temperature option, the measuring range can be flexibly extended up to 1200 °C.
  • Exchangeable lenses
  • Special measurement mode for detecting areas with danger of mould
  • Lens protection glass
  • Auto focus
  • Built-in digital camera with power LEDs
  • Minimum focus distance 10 cm
  • Voice recording using headset

The thermal imager testo 890-1 is delivered in a robust case incl.

  • Pro software
  • SD card
  • USB cable
  • Carrying strap
  • Lens cleaning cloth
  • Mains unit
  • Li-ion rechargeable battery
  • Exchangeable lenses
  • Lens protection glass
  • Additional battery
  • Fast battery charger
  • Headset
Model
testo 890-1
testo 890-2
Infrared image output
Detector type
FPA 640 x 480 pixels, a.Si
Thermal sensitivity (NETD)
<40 mK at +30 °C
Field of view/min. focus distance
42° x 32° / 0.1 m (Standard lens)
42° x 32° / 0.1 m (Tele: 15° x 11° / 0.5 m)
Geometric resolution (IFOV)
1.13 mrad (Standard lens)
1.13 mrad (Tele: 0.42 mrad)
Super Resolution (pixel / IFOV) - optional
1280 x 960 pixels / 0.71 mrad
(Standard lens)
1280 x 960 pixels / 0.71 mrad
(Tele: 0.26 mrad)
Image refresh rate
33 Hz*
Focus
auto / manual
Spectral range
8 to 14 μm
Image output visual
Image size / min. focus distance
3.1 MP / 0.5 m
Image presentation
Image display
4.3" LCD touchscreen with 480 x 272 pixels
Digital zoom
1 to 3 fold
Display options
IR / real image
Video output
USB 2.0
Colour palettes
8 (iron, rainbow, cold-hot, blue-red, grey, inverted grey, sepia, Testo)
Measurement
Temperature range
-20 to +100°C / 0 to +350 °C (switchable)
High temperature measurement - optional
+350 to +1,200 °C
Accuracy
±2 °C, ±2% of mv
Emissivity / reflected temperature
0.01 to 1 / manual
Transmission correction (atmosphere)
Measuring functions
Display of surface moisture distribution (using manual input)
Humidity measurement with radio humidity probe (automatic measurement value transfer in real time)**
(✓)
Solar mode
Analysis function
up to 3 measurement points, Hot/Cold Spot Recognition, Area measurement (Min/Max & average), Isotherm and alarm values
Imager equipment
Digital camera
Standard lens
42° x 32°
Exchangeable lenses - optional
15° x 11°
Site Recognition (measurement – site recognition with image management)
Panorama image assistant
Laser (laser classification 635 nm, Class 2)***
Laser marker
Voice recording
Bluetooth****/wired headset
Video measurement (via USB)
up to 3 measurement points
Fully radiometric video measurement incl. logger function (via USB)
(✓)
Image storage
File format single image
.bmt; export option in .bmp, .jpg, .png, .csv, .xls
File format video (via USB)
.wmv, .mpeg-1
.wmv, .mpeg-1 / Testo format (fully radiometric video)
Storage device
SD card 2 GB (800-1.000 images)
Power supply
Battery type
Fast-charging, Li-ion battery can be changed on-site
Operating time
4.5 hours
Charging options
in instrument / in charger (optional)
Mains operation
yes
Ambient conditions
Operating temperature range
-15 °C to +50 °C
Storage temperature range
-30 to +60 °C
Air humidity
+20 to +80% non-condensing
Housing protection class (IEC 60529)
IP54
Vibration (IEC 60068-2-6)
2G
Physical specifications
Weight
1.630 g
Dimensions (L x W x H) in mm
253 x 132 x 111
Tripod mounting
1/4" - 20UNC
Housing
ABS
PC software
System requirements
Windows XP (Service Pack 3), Windows Vista, Windows 7 (Service Pack 1), interface USB 2.0
Standards, tests, warranty
EU Directive
2004 / 108 / EC
Warranty
2 years
