FLIR Commercial 600A AC Clamp Meter - CM72

FLIR Commercial 600A AC Clamp Meter - CM72

$199.99

Discontinued

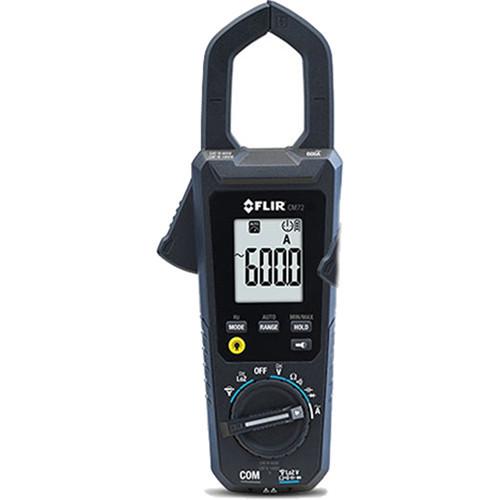

CM72 Commercial 600A AC Clamp Meter by FLIR

The FLIR CM72 600A AC Clamp Meter and the CM74 600A AC/DC Clamp Meter give you better access to wiring in hard-to-reach places, and provide all the measurement capabilities you need for advanced troubleshooting. Made with a narrow jaw and high-powered LED worklights, the CM72 and CM74 make it easier to take measurements in dark, crowded panels and cabinets. Their slim, light design is convenient to carry in your back pocket wherever you go. With advanced electrical features including Autoranging, True RMS Voltage and Current, LoZ, Inrush (CM74 only), VFD Mode (CM74 only), and an input for a flexible current probe accessory, the CM72 and CM74 have all the measurement functions you need to stay competitive and ensure accurate readings.

Better clamp access and portability

  • Made with a narrow jaw for easy access to wiring in crowded panels and cabinets
  • Slim clamp design makes it convenient to carry in your back pocket
  • Dual bright high-powered LED worklights guide you to your target in poor lighting conditions

All the electrical features you need

  • Advanced electrical features including: True RMS, LoZ, VFD Mode (CM74 only), Inrush (CM74 only), Smart Diode with Disable
  • Expandable to 3000A AC with TA72 & TA74 Flex Clamp Accessories (sold separately)
  • Min / Max, Hold and Auto Power Off with Disable

Engineering you can have confidence in

  • Premium gold-tipped silicone test lead accessories included
  • Large digit LCD display with bright backlight
  • Rubberized double molded hand grips reduce slippage
Technical Summary
CM72
MAX Range
CM74
MAX Range
Basic Accuracy
DC Voltage
600.0V
1000V
±1.0%
AC Voltage
600.0V
1000V
±1.0%
VFD AC Voltage
-
1000V
±1.0%
LoZ Mode AC Voltage
600.0V
1000V
±1.0%
LoZ Mode DC Voltage
600.0V
1000V
±1.0%
DC Current
-
600.0A
±2.0%
AC Current
600.0A
600.0A
±2.0%
VFD AC Current
600.0A
600.0A
±2.0%
Inrush AC Current
-
600.0A
±3.0%
Inrush Current threshold
-
Min 0.5A, Integration Time 100ms
Frequency
60.00kHz
60.00kHz
±0.1%
Resistance
6000Ω
6000Ω
±0.1%
Continuity
600.0Ω
6000Ω
±0.1%
Capacitance
1000μF
1000μF
±0.1%
Diode
1.5V
1.5V
±1.5%
General Information
Display Counts
6,000
Jaw Opening
1.38" (35mm), 1250MCM
Category Rating
CAT IV-600V, CAT III-1000V
Certifications
UL
Battery Type
4 x AAA
Warranty
Limited Lifetime
Includes
Clamp Meter, 4 x AAA Batteries, Premium Silicone Test Leads, Quick Start, User Manual (CD), Extended Warranty Registration Card
