FLIR Industrial High Accuracy DMM with VFD Mode - DM93

Item #:
FL-DM93
Brand:
FLIR
$349.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR Industrial High Accuracy DMM with VFD Mode - DM93

FLIR Industrial High Accuracy DMM with VFD Mode - DM93

$349.99

Discontinued

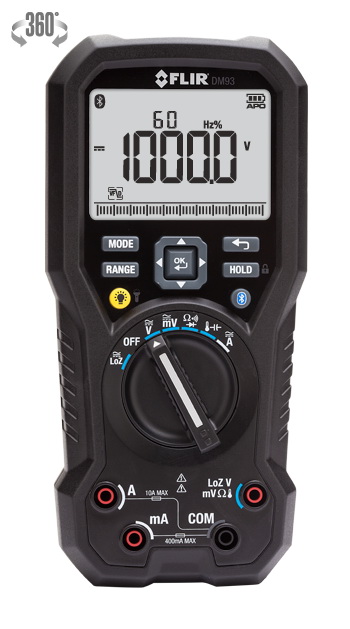

DM93 High Accuracy DMM with VFD Mode by FLIR

FLIR's latest choice of new world-class digital multimeters offer advanced variable frequency drive filtering to help you accurately analyze non-traditional sine waves and noisy signals.

Features:

VFD Mode

Accurately analyze non-sinusoidal waveforms and noisy signals in VFD motors and drive controllers.

LoZ Mode

Use the Low Impedance Input filter to eliminate ghost voltage readings in long-run applications.

Continuous Data Recording

Detect intermittent glitches by allowing the FLIR DM93 to collect measurement data unattended over time.

Bright Dual-LED Worklights

Make your work safer and easier by illuminating dimly lit inspection areas.

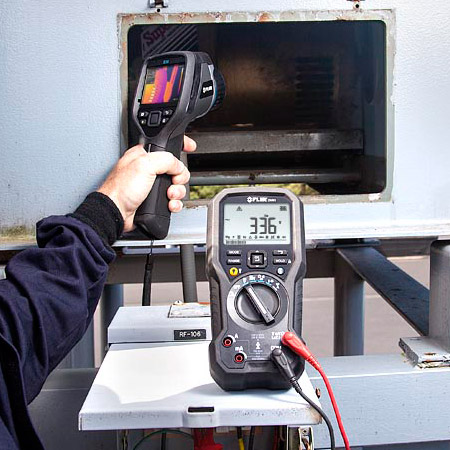

METERLiNK® Compatibility

Embed electrical measurements into thermal images captured by METERLiNK-enabled FLIR infrared cameras.

Bluetooth Connectivity

Connect to Android devices for remote diagnostics in hard-to-reach and hazardous areas. Also, upload files without the need for special cords.

Rugged, Shock-Resistant

Double-molded rubber case design enhances reliability on the job site and durability for the long haul.

Convenience Features

  • No need to select AC or DC Mode for quick tests
  • Backlight features user-configurable timeout
  • Large, sharp display is easy to see
  • Tool-less battery changing
  • Built-in tilt stand

Includes

  • 6 AAA Batteries
  • User Manual/CD
  • CAT IV Silicon Test Leads
  • Limited Lifetime Warranty
  Max Range Basic Accuracy
DC Voltage 1000.0V ±0.05%
AC Voltage 1000.0 V ±0.05%
VFD Voltage 1000.0V ±0.05%
DC Current 10.000A ±0.2%
AC Current 10.000A ±1.0%
Resistance 40.00MΩ ±0.2%
Continuity Threshold 30Ω ±0.2%
Frequency 100.00kHz ±5 Digits
Capacitance 40.00mF ±0.9%
Temperature -328 to 2192°F, -200 to 1200°C ±1.0%
Diode Test 2V ±1.5%
General Information
Bluetooth Range Max 32 ft (10 m)
Display Counts 40,000
Safety Category CAT IV-600V, CAT III-1000V
Data Recording 20,000 Pts (125 days max)
Warranty Limited Lifetime
Certifications CE, UL, FCC
