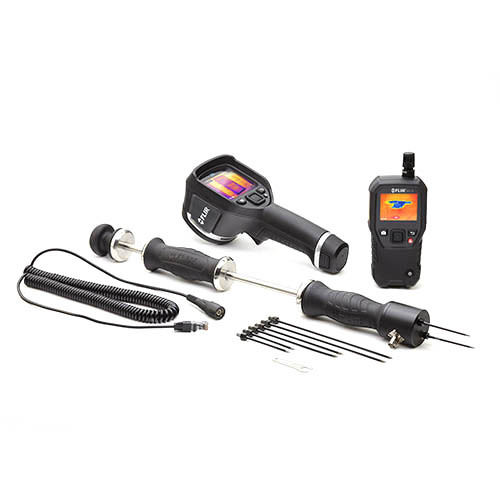

FLIR Remediation Kit includes FLIR E6 with MR176 and MR08 - MR176-KIT6

Item #:
FLIR Remediation Kit includes FLIR E6 with MR176 and MR08 - MR176-KIT6


Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR Remediation Kit includes FLIR E6 with MR176 and MR08 - MR176-KIT6

FLIR Remediation Kit includes FLIR E6 with MR176 and MR08 - MR176-KIT6



MR176-KIT6 Remediation Kit includes FLIR E6 with MR176 and MR08 by FLIR

The FLIR MR176 Imaging Moisture Meter Plus with IGM™ is an all-in-one tool equipped with a built-in thermal camera that can show you exactly where to measure moisture. Featuring Infrared Guided Measurement (IGM) technology, the MR176 helps you quickly scan and target moisture issues, visually guiding you to the spot where you can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. Coupled with a field-replaceable temperature and relative humidity sensor, and automatically calculated environmental readings, the MR176 delivers added convenience and ease of use, producing the right measurements - faster.

Visually identify hidden moisture with IGM

  • An 80 x 60, 4800-pixel Lepton® thermal imager powers IGM technology, visually indicating potential moisture areas via the color display
  • Customize thermal images: select which measurements are integrated (moisture, temperature, relative humidity, dew point, vapor pressure, mixing ratio), and choose from one of four color palettes (Iron, Rainbow, Ice, Greyscale); a lock-image setting prevents extreme hot and cold temperatures from interfering with images while scanning for issues
  • Equipped with a laser and cross hair to easily reference the exact location of the potential moisture issue seen in the thermal image

Get precise readings

  • Field-replaceable temperature/relative humidity sensor can simply be removed from meter and exchanged when needed, so you can continue to work and reduce downtime
  • Progressive Environmental Stability Indicator removes response time error when you move through a site to different measurement locations, informing you when the relative humidity readings have reached a steady state
  • Integrated pinless moisture measurements for fast detection, and external pin probe included with expandable probe options

Convenient and easy to operate

  • Rugged, portable design with intuitive menu system
  • Document readings and images to share via included USB cable
  • Free FLIR Tools PC software quickly generates reports
FLIR MR176: Imaging Moisture Meter
Imaging Detector
FLIR Lepton microbolometer
Image Calibration
Automatic with manual lock scale option
Thermal Image Resolution (W x H)
4800 pixels (80 x 60)
Spectral Response
8 to 14μm
Field of View (W x H)
51° x 38°
Detection Limit (Wet Area Detection @ 32ft (10m)
19.7in2 (49cm2)
Image Update Speed Frequency
Thermal Image Palettes
Iron, Rainbow, Ice, Greyscale
Thermal Image Minimum Focus Distance
4" (10cm)
Moisture Measurement
Basic Accuracy
Pin Moisture
7% to 30%
±1.5% MC
30% to 100%
Reference only
Pin Moisture Groups
9 Material Groups
Pinless Moisture Range
0 to 100
Pinless Measurement Depth
0.75" (19mm) Max
Measurement Resolution
Response Time Pinless Mode
Response Time Pin Mode
Environmental Measurement
Basic Accuracy
Relative Humidity
0 to 100%
Air Temperature
32 to 122°F (0 to 50°C)
±1.1°F (±0.6°C)
Dew Point
-22 to 122°F (-30 to 50°C)
±1.8°F (±1.0°C)
Vapor Pressure
0.0 to 12.0kPa
Mixing Ratio
0 to 560GPP (0.0 to 80.0 g/kg)
±2GPP (0.25 g/kg)
General information
Display Type
QVGA (320 x 240 pixel) 2.3" color TFT graphical display
Drop Test
Saved Image File Format
BMP with measurement values overlaid
Stored Image Capacity
9999 images
Laser Orientation
Single laser pointer to center of thermal image
Continuous Run Time
18 hours max
Typical Usage*
4 work weeks
3.7V, 3000mAh Li-ion rechargeable via micro USB
Certification Standards
EN 61326 (EMC), EN 60825-1 Class 2 (Laser)
Agency Approvals
CE, FCC Class B, RCM
MR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide, International USB Charger, USB Cable
*See FAQs at flir.com/MR176
