FLIR Industrial Pinless Moisture Pyschrometer with Limited NIST - MR77-NISTL
Item #:
FL-MR77-NISTL
Brand:
FLIR
Share this product:

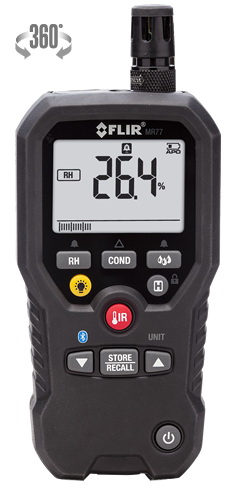

MR77-NISTL Pinless Moisture Pyschrometer with Limited NIST by FLIR
The new FLIR MR77 is a rugged, feature-packed moisture meter incorporating a pinless sensor and a wired pin probe to capture moisture readings up to 0.75” below the surface of various wood types and building materials. The unit also incorporates a laser-spot IR thermometer, a field-replaceable temperature/humidity sensor, and High/Low moisture and humidity alarms.
Features
- Pinless Moisture Sensor: Capture accurate, non-destructive moisture readings up to 0.75" below material surfaces using the integrated pinless sensor.
- Wired Pin Probe: Monitor moisture levels in hard-to-reach areas using the FLIR MR77's external pin probe on 30" wire.
- Built-in IR Thermometer: Quickly capture spot temperatures using the non-contact, IR thermometer with laser spot.
- Intuitive Display: Large, clear LCD screen simultaneously displays moisture, relative humidity, and air temperatures.

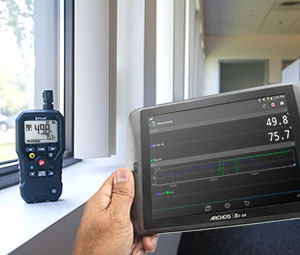

- Bluetooth Connectivity: Upload data to FLIR Tools Mobile software so you can easily turn moisture/environmental trending graphs into professional reports.

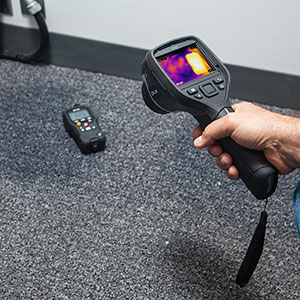

- METERLiNK Compatibility: Embed moisture readings into thermal images from METERLiNK-enabled FLIR IR cameras for enhanced documentation/reporting.
- Shock-Resistant: Double-molded, rubberized case is shock-resistant from drops from as high as two meters to bolster reliability and durability.

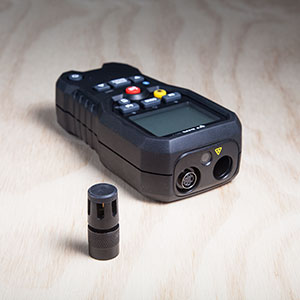

- Rugged Design: CDesigned to resist contamination, the temperature/humidity sensor is field replaceable to keep the unit in action on the job site.
Includes
- 9V Battery
- User Manual/CD
- Temperature/RH Sensor
- Wired Pin Probe
- Limited Lifetime Warranty
| Range | Basic Accuracy | |
| Pinless Moisture | 0 to 99.9 | Relative |
| Pinless Moisture Depth Max | 0.75 inches (19mm) | |
| Pin Moisture | 0 to 99% WME | ± 5% |
| Relative Humidity | 0 to 99% RH | ± 2.5% RH |
| Sensor Temperature | -18 to 170°F, -28 to 77°C | ± 3.6°F, 2°C |
| IR Temperature | -4 to 392°F, -20 to 200°C | ± 3.5% |
| IR Distance to Spot Ratio | 8 : 1 in | |
| IR Emissivity | 0.95 (fixed) | |
| Vapor Pressure | 0 to 20.0kPA | ± 2% |
| General Information | ||
| Bluetooth Range Max | 32 ft (10 m) | |
| Drop Test | 6.5 ft (2 m) | |
| Warranty | Limited Lifetime | |
| Certifications | CE, FCC | |
