FLIR Spot IR Thermometer 24:1 with NIST - TG54-NIST
Item #:
FL-TG54-NIST
Brand:
FLIR
Share this product:

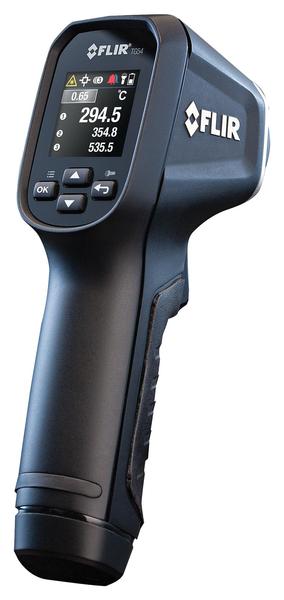

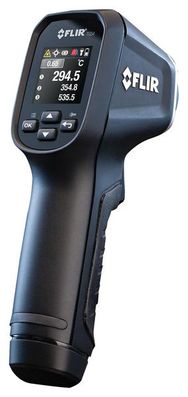

TG54-NIST Spot IR Thermometer 24:1 with NIST by FLIR
The TG54 and TG56 Spot IR (Infrared) Thermometers provide non-contact surface temperature readings so you can quickly and easily take measurements in places that are out of reach. Providing a distance-to-spot ratio of up to 30:1, the TG54 and TG56 can measure smaller targets from a safer distance. New mode options give you control to view your current reading and last two temperature readings simultaneously. The TG54 and TG56 are built with a color screen that makes it easy to navigate and select settings, plus adds visibility and efficiency to the advanced feature set. The TG54 and TG56 are your go-to, pocket-sized devices for efficient temperature measurement.
Measure high and low
- Take non-contact surface temperature measurements with IR (infrared) sensor
- 24:1 or 30:1 spot ratio to measure smaller targets from a safer distance
- Easily identify measurement location with built-in laser targeting
Simple to use
- Graphical menu structure allows easy access to settings
- Easy emissivity selection with predetermined levels and custom adjustment
- Stunning visual high and low alarms
Convenient and rugged design
- Rugged, industrial design that can withstand a three meter drop
- Bright worklight to help you see your target in poor lighting conditions
- Tool-less battery compartment
| Spot IR Specifications | TG54 |
TG56 |
| Distance to Spot Ratio (D:S) | 24:1 |
30:1 |
| Range | -30°C to 650°C (-22°F to 1202°F) |
|
| Basic Accuracy | ±1°C/1.8°F or 1% of Reading |
|
| Emissivity | Adjustable with 4 presets and custom option |
|
| Resolution | 0.1°C / 0.1°F |
|
| Response | ≤150 Milliseconds |
|
| Spectral Response | 5 to 14 microns |
|
| Thermocouple (TC) Input Specifications | ||
| Input Type | - |
K |
| Input Range | - |
-30°C to 650°C (-22°F to 1202°F) |
| Input Basic Accuracy | - |
±2°C/3.6°F or 1% of Reading |
| Measurement Resolution | - |
0.1°C / 0.1°F |
| Included Type K Thermocouple Probe Range | - |
-30°C to 300°C (-22°F to 572°F) |
| Features | ||
| Max / Min | Yes |
|
| Differential (MAX-MIN) | Yes |
|
| AVG (6k pts running average) | Yes |
|
| TC / IR Differential Mode | - |
Yes |
| Alarm | High / Low |
|
| Alarm Alert | Color (Red / Blue) indication |
|
| General | ||
| Display (w x h) | 1.45" TFT LCD (128 x 128 pixels) |
|
| Laser Orientation | Single laser pointer to center of measurement spot, Class 1 |
|
| Warranty* | 5 Year |
|
| IP Rating | Designed for IP56 |
- |
| Drop Test | Designed for 3m |
|
| Continuous Run Time | 8hrs Maximum |
|
| Power Source | 3 x AAA alkaline |
|
| Auto Power Off | Yes with Pre-set adjustment level and Disable option |
|
| Certifications | CE / FDA Laser |
|
| Includes | Wrist Strap Lanyard, Quick Start Guide, User Manual (CD), 3 x AAA Batteries, (TG56 adds General Purpose Type K Thermocouple) |
|
