FLIR Spot IR Thermometer with Thermocouple 30:1 with NIST - TG56-NIST

Item #:
FL-TG56-NIST
Brand:
FLIR
$349.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR Spot IR Thermometer with Thermocouple 30:1 with NIST - TG56-NIST

FLIR Spot IR Thermometer with Thermocouple 30:1 with NIST - TG56-NIST

$349.99

Discontinued

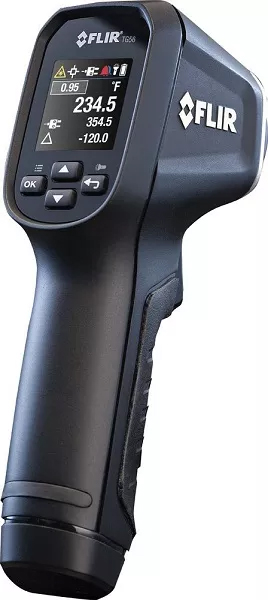

TG56-NIST Spot IR Thermometer with Thermocouple 30:1 with NIST by FLIR

The TG54 and TG56 Spot IR (Infrared) Thermometers provide non-contact surface temperature readings so you can quickly and easily take measurements in places that are out of reach. Providing a distance-to-spot ratio of up to 30:1, the TG54 and TG56 can measure smaller targets from a safer distance. New mode options give you control to view your current reading and last two temperature readings simultaneously. The TG54 and TG56 are built with a color screen that makes it easy to navigate and select settings, plus adds visibility and efficiency to the advanced feature set. The TG54 and TG56 are your go-to, pocket-sized devices for efficient temperature measurement.

Measure high and low

  • Take non-contact surface temperature measurements with IR (infrared) sensor
  • 24:1 or 30:1 spot ratio to measure smaller targets from a safer distance
  • Easily identify measurement location with built-in laser targeting

Simple to use

  • Graphical menu structure allows easy access to settings
  • Easy emissivity selection with predetermined levels and custom adjustment
  • Stunning visual high and low alarms

Convenient and rugged design

  • Rugged, industrial design that can withstand a three meter drop
  • Bright worklight to help you see your target in poor lighting conditions
  • Tool-less battery compartment
Spot IR Specifications
TG54
TG56
Distance to Spot Ratio (D:S)
24:1
30:1
Range
-30°C to 650°C (-22°F to 1202°F)
Basic Accuracy
±1°C/1.8°F or 1% of Reading
Emissivity
Adjustable with 4 presets and custom option
Resolution
0.1°C / 0.1°F
Response
≤150 Milliseconds
Spectral Response
5 to 14 microns
Thermocouple (TC) Input Specifications
Input Type
-
K
Input Range
-
-30°C to 650°C (-22°F to 1202°F)
Input Basic Accuracy
-
±2°C/3.6°F or 1% of Reading
Measurement Resolution
-
0.1°C / 0.1°F
Included Type K Thermocouple Probe Range
-
-30°C to 300°C (-22°F to 572°F)
Features
Max / Min
Yes
Differential (MAX-MIN)
Yes
AVG (6k pts running average)
Yes
TC / IR Differential Mode
-
Yes
Alarm
High / Low
Alarm Alert
Color (Red / Blue) indication
General
Display (w x h)
1.45" TFT LCD (128 x 128 pixels)
Laser Orientation
Single laser pointer to center of measurement spot, Class 1
Warranty*
5 Year
IP Rating
Designed for IP56
-
Drop Test
Designed for 3m
Continuous Run Time
8hrs Maximum
Power Source
3 x AAA alkaline
Auto Power Off
Yes with Pre-set adjustment level and Disable option
Certifications
CE / FDA Laser
Includes
Wrist Strap Lanyard, Quick Start Guide, User Manual (CD), 3 x AAA Batteries, (TG56 adds General Purpose Type K Thermocouple)
