Jenco pH/Conductivity/Temperature Meter - pH/EC 80

Item #:

pH-EC-80

Brand:

Jenco

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

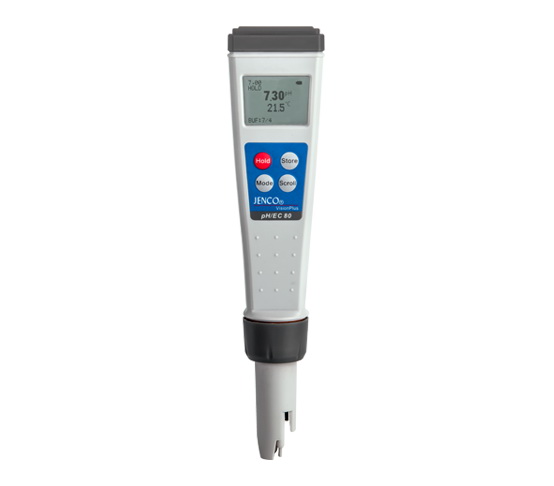

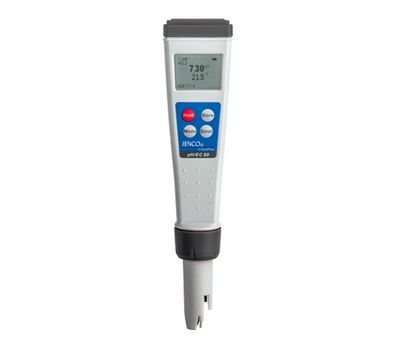

pH/EC 80 pH/Conductivity/Temperature Meter by Jenco

Multi-parameter tester for measuring pH, conductivity, TDS, salinity and temperature

The pH/EC80 is one of the most advanced multi-parameter tester on the market. The tester has a large graphic LCD that simultaneously displays pH or EC measurement and temperature measurement. Users can store up to 50 memory data sets for recall and select degrees Celsius or Fahrenheit as the temperature unit of measure. In addition, the advanced hardware and the user-replaceable electrode module are protected by an IP-67 rated housing.

Simultaneously measures pH, Conductivity, TDS, Salinity and temperature without switching probe
Graphic LCD display
Auto temperature compensation
Switches between °C and °F
Auto shut down feature
Replaceable pH/Conductivity electrode module
50 sets of data memory
IP67 waterproof
Battery life >100hrs
CE approved and RoHS compliant

Specifications

pH Range	0.00 to 14.00
pH Resolution	0.01
pH Accuracy	± 0.01 pH
Conductivity Range Range1	0 uS/cm to1999 uS/cm
Conductivity Resolution Range1	1 uS/cm
Conductivity Accuracy Range1	±1% F.S.
Conductivity Range 2	2.00 mS/cm to 20.00 mS/cm
Conductivity Resolution 2	0.01 mS/cm
Conductivity Accuracy 2	±1% F.S.
Salinity Range	0.0 to 10.0 ppt
Salinity Resolution	0.1 ppt
Salinity Accuracy	±1% F.S.
TDS Range 1	0 to 1999 mg/L
TDS Resolution 1	1 mg/L
TDS Accuracy 1	±1% F.S.
TDS Range 2	2.00 to 20.00 g/L
TDS Resolution 2	0.01 g/L
TDS Accuracy 2	±1% F.S.
Temperature Range 1	-5.0 to 60.0 °C
Temperature Resolution 1	0.1 °C
Temperature Accuracy 1	±0.5 °C
Temperature Range 2	23 to 140 °F
Temperature Resolution 2	0.1 °F
Temperature Accuracy 2	±0.9 °F
pH Calibration	1, 2 and 3 point calibration. Uses USA and NIST buffer sets.
Conductivity Calibration	1 point calibration
Temperature Compensation Range	-5.0 to 60.0 °C
Referemce Temperature	15 to 25 °C Default at 25 °C
Temperature Coefficient	0.00 to 4.00 %. Default at 1.91%/°C
TDS Constant	0.30 to 1.00, Default at 0.65
Temp Sensor	Thermistor, 10k ohms, at 25 °C
Temp Unit	°C and °F
Input Impedance	>10¹² Ohms
Display	Graphic LCD
Storage of Calibration Data	Yes
Data Memory Storage	50 sets
Auto Shutoff	After 10 minutes of inactivity.
Power	4 x LR44 batteries
Case	IP67 water-tight case
Working Environment	0 to 50 °C, relative humidity < 95 %
Dimensions	200 × 44 × 25 mm
Weight	About 110 g (excluding batteries)
