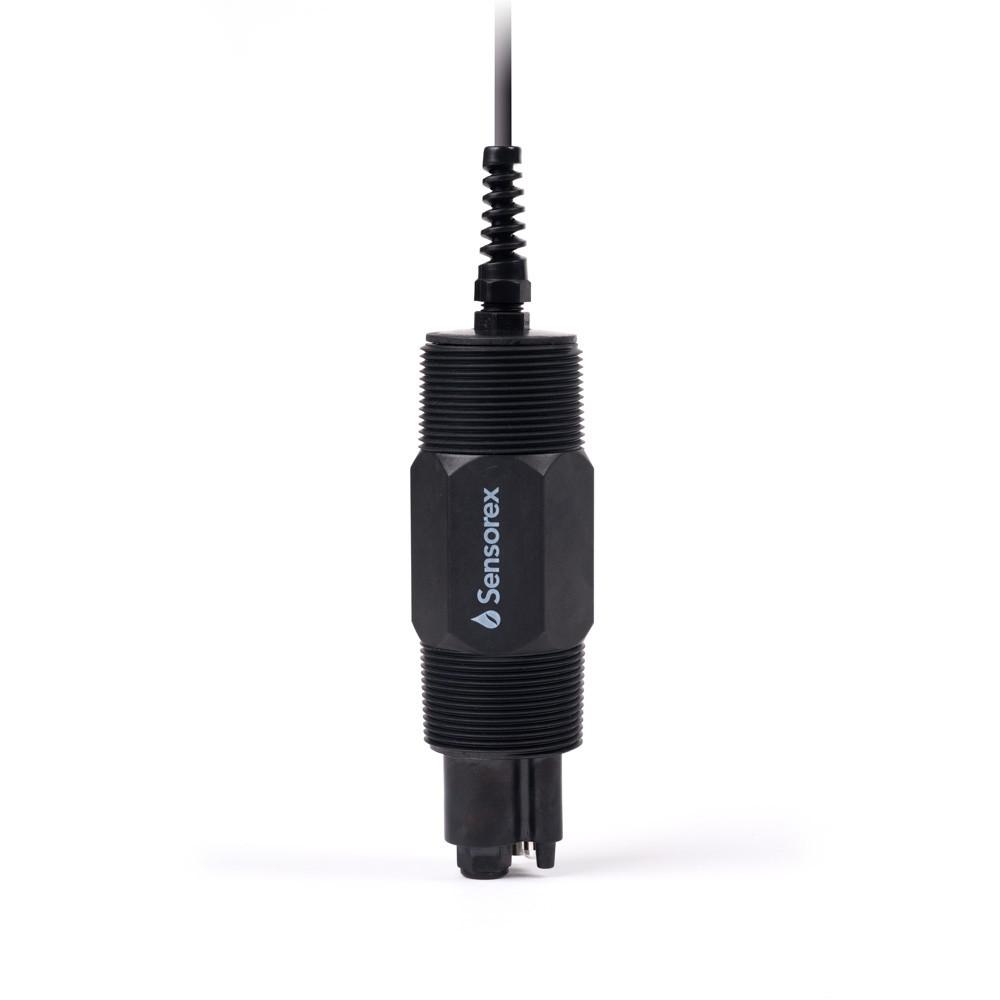

Sensorex SD7420CD Differential pH Probe (Direct 4-20mA Output)

Item #:
SEN-SD7420CD
Brand:
Sensorex
Sensorex SD7420CD Differential pH Probe (Direct 4-20mA Output)
$1,005.68
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Sensorex SD7420CD Differential pH Probe (Direct 4-20mA Output)

Sensorex SD7420CD Differential pH Probe (Direct 4-20mA Output)

$1,005.68

SD7420CD Differential pH Probe (Direct 4-20mA Output) by Sensorex

Differential sensors have longer working lifetimes

The differential design employs two glass electrodes, which record pH or ORP measurements differentially with respect to a third metal electrode. The reference cell of a differential sensor is actually a measuring electrode in a concentrated pH 7.0 buffer solution rather than a traditional silver/silver chloride reference. This type of reference cell resists contamination by the sample, improving measurement accuracy and extending sensor lifetime.

Save time and money with quick and easy maintenance

With differential technology, you won't have to replace the entire sensor after just a few months. Simply replace the salt bridge and refill the reference solution to keep your electrode working longer.

Don't want to purchase a transmitter or controller?

You don't have to. With a direct 4-20mA output, these differential sensors can be hooked up to a PLC or SCADA system with no transmitter or controller required.

Reliable performance in variable operating conditions

The differential design provides unsurpassed accuracy by virtually eliminating ground loops. Automatic temperature compensation ensures measurement accuracy in environments with rapid temperature changes. Durable Ryton® PPS body construction for extensive chemical compatibility.

Features:

  • Employs differential measurement technique
  • Complete encapsulation protects internal electronics
  • Buffered reference cell solution resists contamination
  • Superior accuracy through elimination of ground loops
  • No transmitter required: direct 4-20mA output signalTwo year limited warranty
pH Measurement Range: 0 to 14 (4-20mA)
ORP Measurement Range: -2000mV to 2000mV (4-20mA)
pH Stability: 0.03 pH per 24 hours, non-cumulative
Wetted Materials: PPS body and salt bridge, PVDF & ceramic junction, Viton o-rings, titanium solution ground, pH glass or ORP - platinum band
Transmission Distance: 3000ft (914m)
Temperature Compensation: 10K NTC (no separate temperature output)
Temperature Range: 0-85°C (32-185°F)
Pressure Maximum: 100psig @ 40°C (104°F)- for PVC tee/ fitting 100psig @ 60°C (140°F)- for CPVC tee/fitting 100psig @ 85°C (185°F)- for stainless steel tee/fitting
Flow Rate: 10ft/sec maximum (3 meters/sec)
Sensor Cable: 5 conductor plus shield, 22AWG, 20ft (6.1m), use only red and black wires
Power Requirement: 12 - 30V DC ( > 24V DC recommended)
