TPI SP555 Smart Vane Anemometer
Item #:
TPI-SP555
Brand:
Test Products International
Share this product:

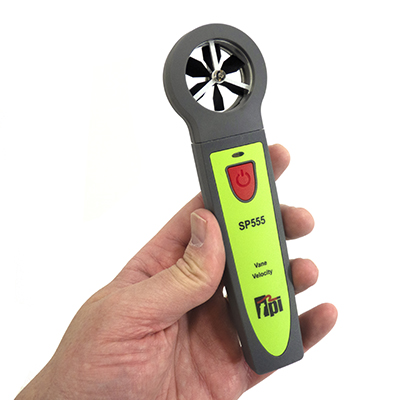

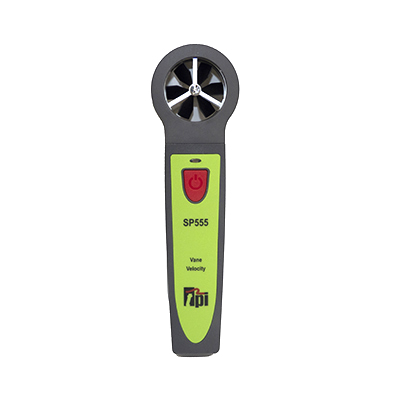

SP555 Smart Vane Anemometer by Test Products International
The SP555 is a vane velocity Smart Probe. It measures air velocity and temperature; calculates CFM (Volume); connects to mobile device and uses the TPI View App. Perform average air velocity and air volume tests. 3 Year Limited Warranty.
Feature:
- Measure air velocity and temperature simultaneously

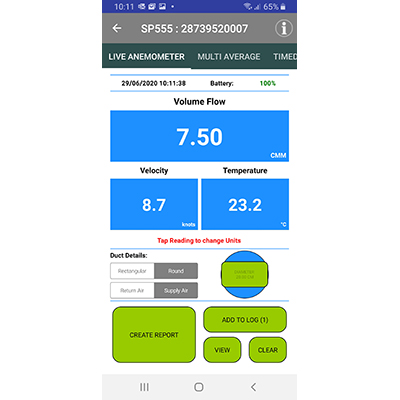

- Communicate with smartphone using Bluetooth LE and TPI View App
- Record minimum, maximum & average readings
- Multiple measuring units: m/s, km/h, ft/min, knots, mile/h
- Automatically calculates and displays CFM through the View app
Applications:
- Air velocity measurements in HVAC systems
- Air duct analysis to balance commercial and residential HVAC systems
- Fume hoods
- Floor registers
- Exhaust grills
| Sensor Type | Vane |
| Air Velocity Measurement Range | 98 fpm ~ 4900 fpm (0.5 m/s ~ 25 m/s) -4°F ~ 140°F (-20°C ~ 60°C) |
| Resolution | 2 fpm (0.1 m/s) 0.1°F / 0.1°C |
| Air Velocity Accuracy | ± ( 2% of mv + 59 fpm)
± ( 2% of mv + 0.3 m/s) |
| Temperature Measurement Range | -4°F to 140°F (-20°C to 60°C) |
| Temperature Accuracy | ±1°F( 32°F ~ 113°F ) / ±2°F ( -4 °F ~ 31.9°F, 113.1°F ~ 140°F ) ±0.5°C( 0°C ~ 45°C ) / ±1°C ( -20°C ~ -0.1°C, 45.1°C ~ 60°C ) +/-0.02 inH2O (0 to 1 inH2O) / +/-(1.5% + 20 digits) (> 1 inH2O) |
| Units of Measure | m/s, km/s, ft/min, miles/hr, knots/hr |
| Operation Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Storage Temperature | -4°F ~ 140°F (-20 °C ~ 60 °C) |
| Battery Life Time | 30 hours typical |
