TPI SP565 Smart Hot Wire Anemometer
Item #:
TPI-SP565
Brand:
Test Products International
Share this product:

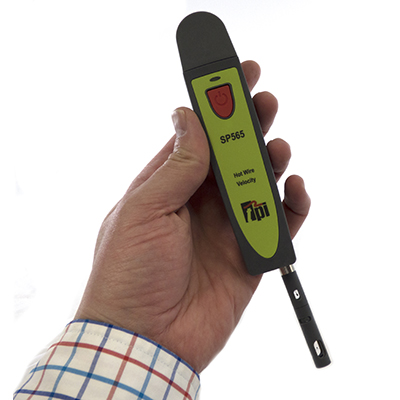

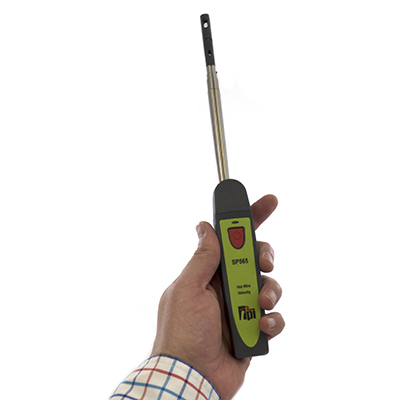

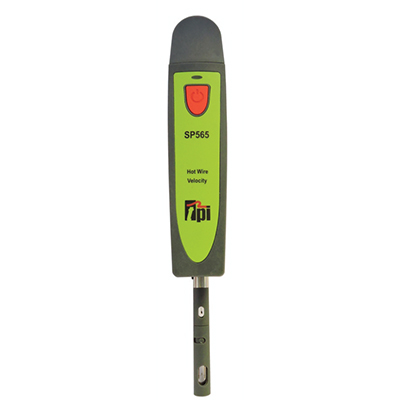

SP565 Smart Hot Wire Anemometer by Test Products International

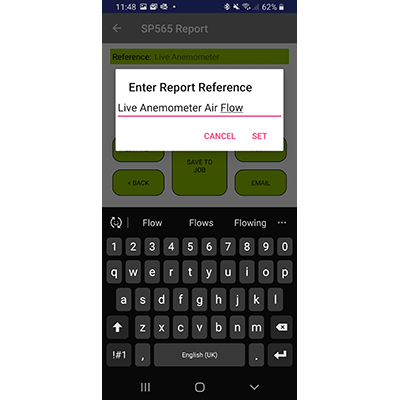

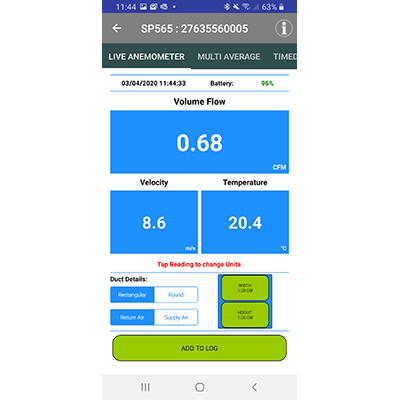

Hotwire air velocity probe with flip up telescopic sensor wand. Use with TPI Smart Probe App to display air velocity and air flow.
Feature/Benefits:
- Measure air velocity and temperature simultaneously
- Communicate with Android Smart Phone using Bluetooth LE and TPI App
- Record minimum, maximum & average
- Multiple measuring units: m/s, km/h, ft/min, knots, mile/h
Applications:
- Air velocity measurements in HVAC systems
- Air duct analysis to balance commercial and residential HVAC systems
- Fume hoods
- Floor registers
- Exhaust grills
Ranges:
- Air Velocity: 40 to 3900 fpm; 0.2 to 20 m/s
- Temperature: -5°F to 175°F (-20°C to 80°C)
| Sensor Type | Hot wire |
| Air Velocity Measurement Range | -40 ft/min to 3900 ft/min (0.2 m/s to 20 m/s) |
| Air Velocity Accuracy | +/- (5% of rdg + 10 digits) or +/- (1% FS + 10 digits) |
| Resolution | 1 ft/min / 0.01 m/s |
| Temperature Measurement Range | -4°F to 140°F (-20°C to 60°C) |
| Temperature Accuracy | +/- 1°F (0.5°C) (32°F to 113°F / 0°C to 45°C) +/- 2°F (1°C) (<32°F (0°C) and >113°F (45°C) |
| Units of Measure | m/s, km/s, ft/min, miles/hr, knots/hr |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Communication | Bluetooth version 4.2 (Use with TPI Smart Probe App) |
| Battery Type | AAA x 3 |
| Battery Life | 60 hours typical |
| CFM Calculation | Performed via TPI Smart Probe App |
