TPI SP620 Smart Pressure Meter
Item #:
TPI-SP620
Brand:
Test Products International
Share this product:

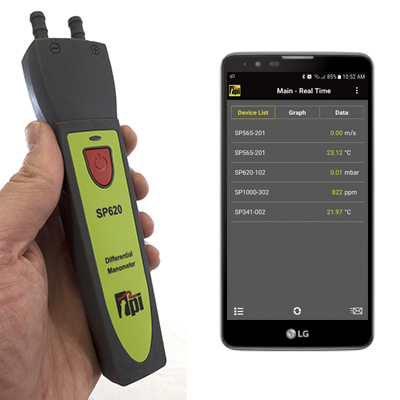

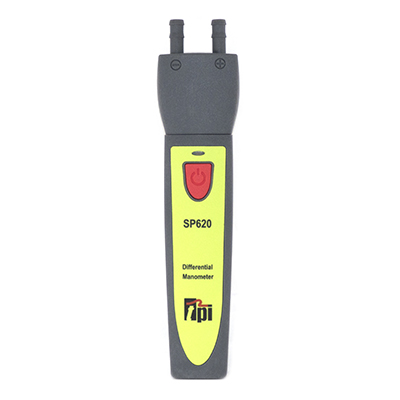

SP620 Smart Pressure Meter by Test Products International

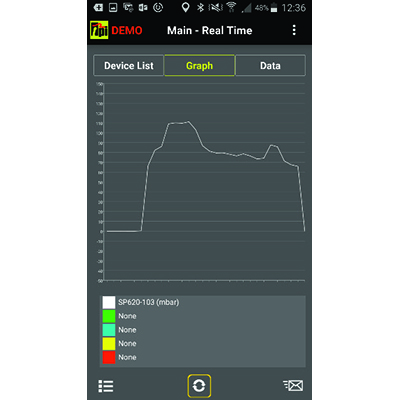

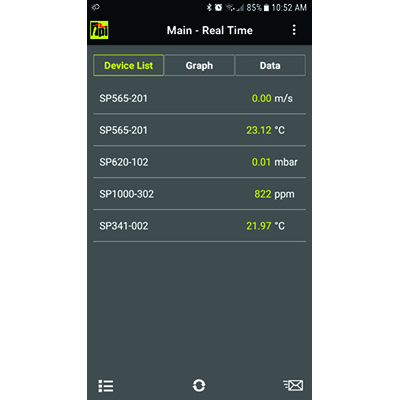

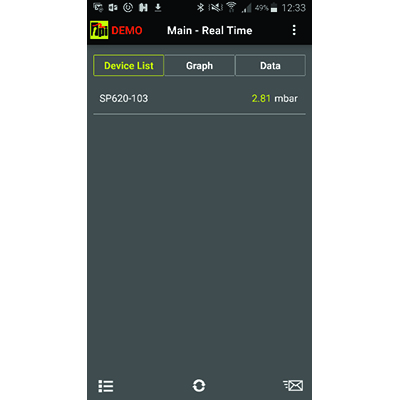

Dual input manometer with +/- 60 inH2O input range. Use with TPI Smart Probe App to display pressure. Seven units of measure include inH2O, PSI, inHg, mbar, kPa, mmHg, and mmH2O. One touch zero function and Trim mode to stabilize fast changing pressures.
Features:
- 0.01 inH2O resolution
- High accuracy +/-0.02 inH2O less than 1 inH20; 1.5% above 1 inH20
- Temperature compensated
- Trim mode to stabilize fluctuating readings
- Seven units of measure
Applications:
- Test duct pressure and perform static pressure checks
- Adjust appliance regulators
- Test pressure switch on a 2-stage gas furnace in both positive and negative pressures.
- Setting delivery pressures
- Leakage "shut-in" tests
- Regulator adjustments for pressure and lock-up tests
- Check air filters by measuring pressure drop
| Input Type | Dual input differential |
| Connection Type | 1/4 inch barb |
| Measurement Range | -60 in H2O to 60 in H2O (-150 mbar to 150mbar) |
| Accuracy | +/-0.02 in H2O (0 to 1 in H2O) / +/-(1.5% + 20 digits) (> 1 in H2O) +/-0.05 mbar (0 to 1 mbar) / +/-(1.5% + 20 digits) (> 1 mbar) |
| Resolution | 0.01 in H2O / 0.01 mbar |
| Units of Measure | 7 Units (mbar, in H2O, kPa, PSI, mmHg, inHg, mm H2O) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Communication | Bluetooth version 4.2 (Use with TPI Smart Probe App) |
| Battery Type | AAA x 3 |
| Battery Life | 80 hours typical |
