FLIR TG165-X MSX Thermal Camera 80 x 60 Resolution/9Hz - 87501-0101

FLIR TG165-X MSX Thermal Camera 80 x 60 Resolution/9Hz - 87501-0101

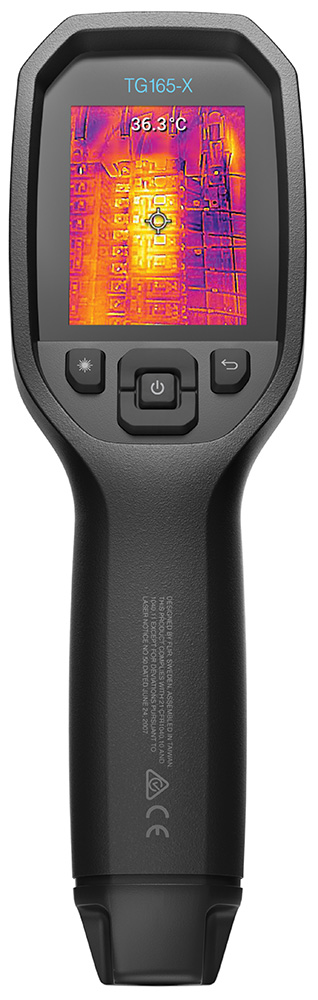

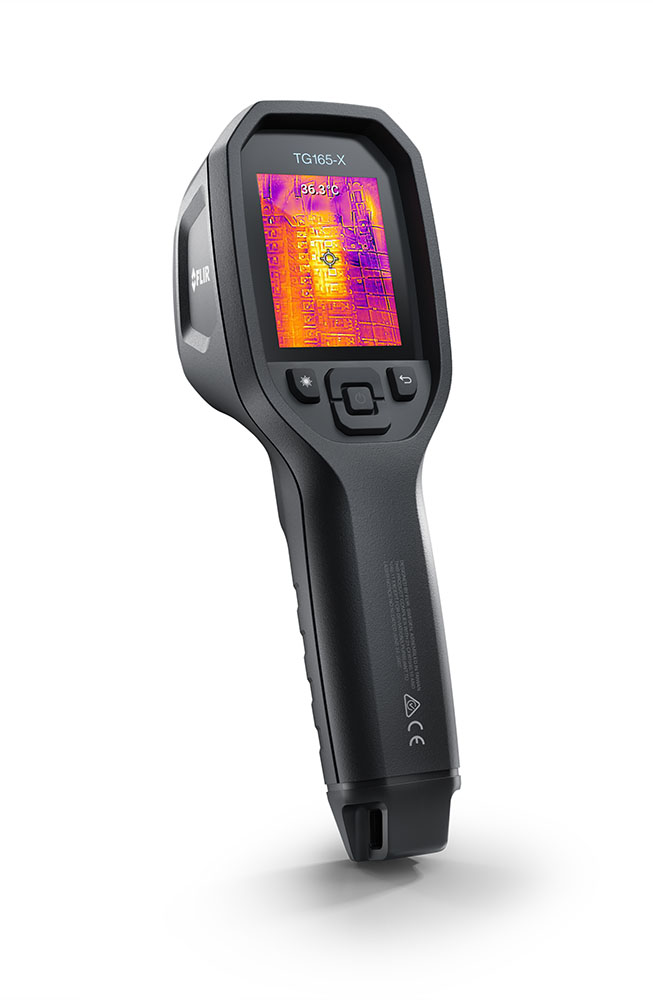

87501-0101 TG165-X MSX Thermal Camera 80 x 60 Resolution/9Hz by FLIR

The FLIR TG165-X dramatically reduces inspection and diagnostic time by helping you visually pinpoint the source of electrical, mechanical, and HVAC/R system faults. Instead of searching for temperature anomalies with a single-spot IR thermometer, this non-contact temperature measurement and imaging tool displays a thermal picture of your target including any hot spots or cold zones that could indicate a problem. See wires or components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser helps ensure you’re always targeting the right component for measurement while the drop-tested, portable design with easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.


  • See temperature anomalies immediately in the thermal image instead of searching for them with a single-spot IR thermometer
  • Speed inspections with a thermal view that tells you instantly whether a target has overheating components or hidden air leaks
  • Measure a wide range of temperatures, from -25°C to 300°C (-13°F to 572°F), with an accuracy of up to ±1.5°C (±3°F)


  • Interpret images faster and easier with MSX® two-camera technology, which enhances thermal images with crisp visual details

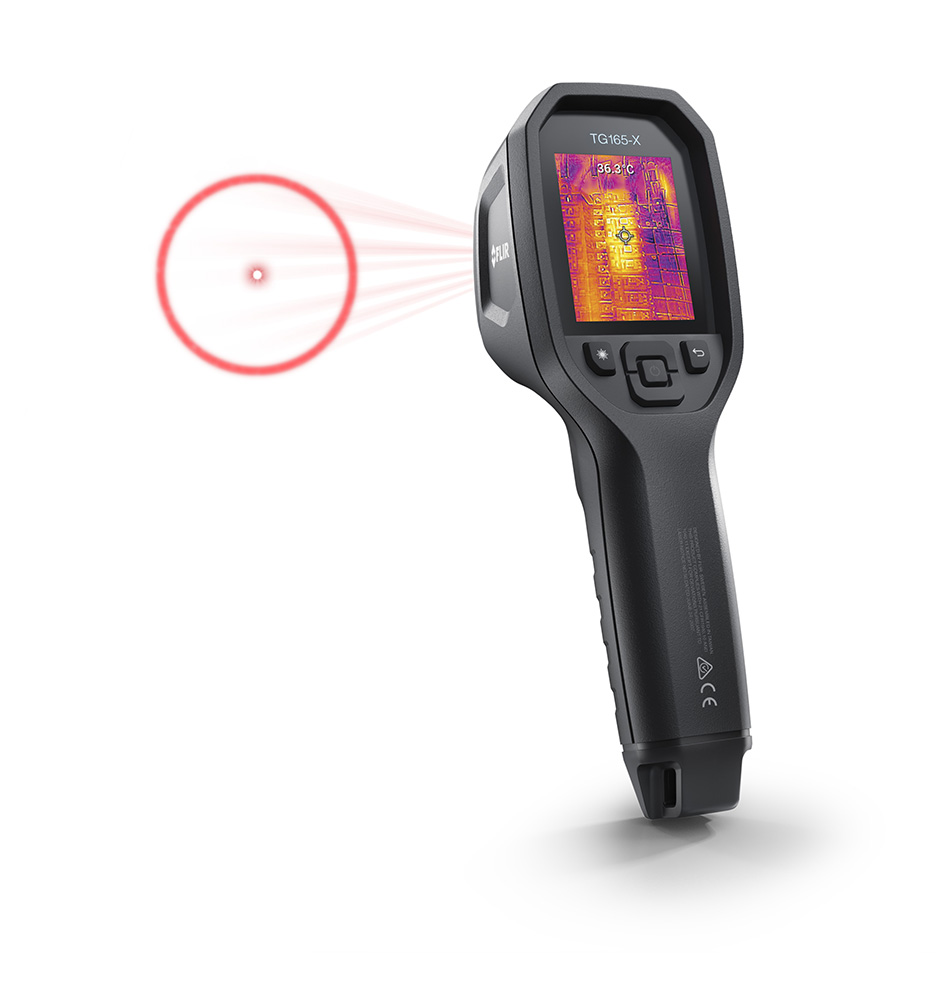

  • Identify the exact area that you're measuring using the bullseye laser pointer
  • Capture thermal MSX or visual images plus temperature readings with a simple trigger-pull
  • Demonstrate the problem was found and corrected with recorded before-and-after images


  • Work safely and worry-free knowing that the thermal imager can withstand a 2-meter drop
  • See into dark or hard-to-reach areas with the bright LED worklight
  • Easily view live thermal or recorded images on 2.4-in. display
  • Rely on the security of the world-class FLIR 2-10 warranty
Imaging and optical data
IR resolution 80 x 60 pixels
Digital image enhancement No
Thermal sensitivity/NETD <70 mK
Field of view (FOV) 51° x 66°
Minimum focus distance 0.3 m (0.98 ft)
Distance to spot ratio 24:1
Pseudo dual range No
Image frequency 8.7 Hz
Focus Fixed
Detector data
Focal plane array/spectral range Uncooled microbolometer/7.5-14 μm
Detector pitch 17 μm
Image presentation
Display resolution 320 x 240 pixels
Screen 2.4 in. portrait, 80° viewing angle
Image adjustment Automatic
Image modes •MSX® (Multi Spectral Dynamic Imaging)
•Visual (with temperature reading)
Gallery Yes
Measurement and analysis
Object temperature range -25°C to 300°C (-13°F to 572°F)
Accuracy •50°C to 100°C (122°F to 212°F) - acc. of ±1.5°C (±3°F)
•0°C to 50°C/100°C to 300°C (32°F to 122°F/212°F to 572°F) - acc. of ±2.5°C (±5°F)
•-25°C to 0°C (-13°F to 32°F) - acc. of ±3°C (±7°F)
Minimum measurement distance 0.26 m (0.85 ft.)
Spotmeter Center spot on/of
Color palettes Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Set-up commands •Local adaptation of units, language, date, and time formats
•Screen brightness (high, medium, low)
•Gallery, deletion of images
Emissivity correction Yes: 4 pre-set levels with custom adjustment of 0.1-0.99
Storage of images
Storage media 4 GB
Image storage capacity 50,000 images
Image file format JPEG with spot temp in meta tag
Digital camera
Resolution 2 MP (1600 x 1200 pixels)
Focus Fixed
Field of view 71° x 56°, adapts to the IR lens
Worklight and Laser
Worklight LED on/of
Light output 100 lumens
Bullseye laser pointer Indicating the size of the measurement area
Laser type Class 1
Data communication interfaces
Interfaces USB 2.0
USB standard USB Type-C High Speed; data transfer/power
Power system
Battery type Rechargeable Li-ion, 3.7 V battery
Battery operating time 5 hours of scanning (LCM medium brightness)
4.5 hours with laser on (LCM medium brightness)
Battery charge life 30 days minimum
Charging system Battery is charged inside the camera; 4 hrs to 90%, 6 hrs. to 100%
Power management Adjustable: off, 5 minutes, 15 minutes, 30 minutes
Operating temperature range -10°C to 45°C (14°F to 113°F)
Encapsulation IP54 (IEC60529)
Shock 25 g (IEC 60068-2-27)
Vibration 2 g (IEC 60068-2-6)
Drop test Designed for 2 m (6.56 ft.)
Safety CE/CB/EN61010/UL
Weight 0.394 kg (13.9 oz)
Size (L x W x H) 210 x 64 x 81 mm (8.3 x 2.5 x 3.2 in)
Tripod mounting UNC 1/4"-20
Country of origin Taiwan
