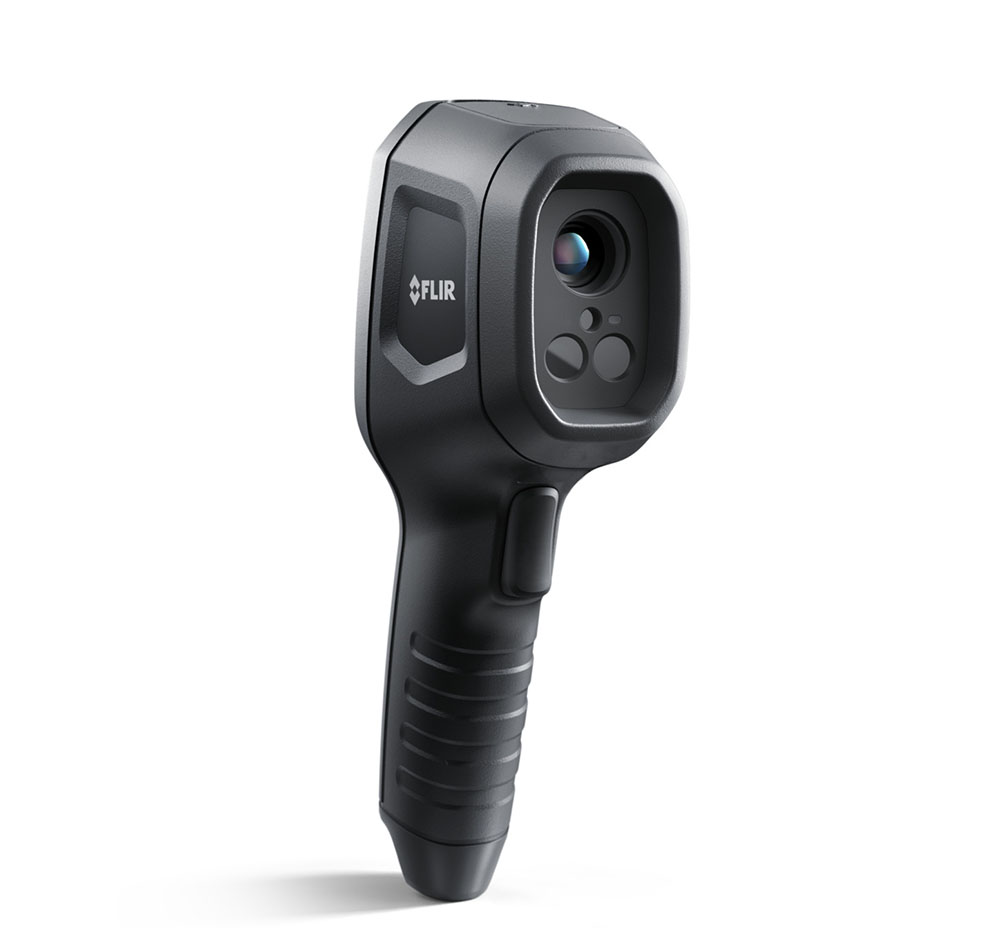

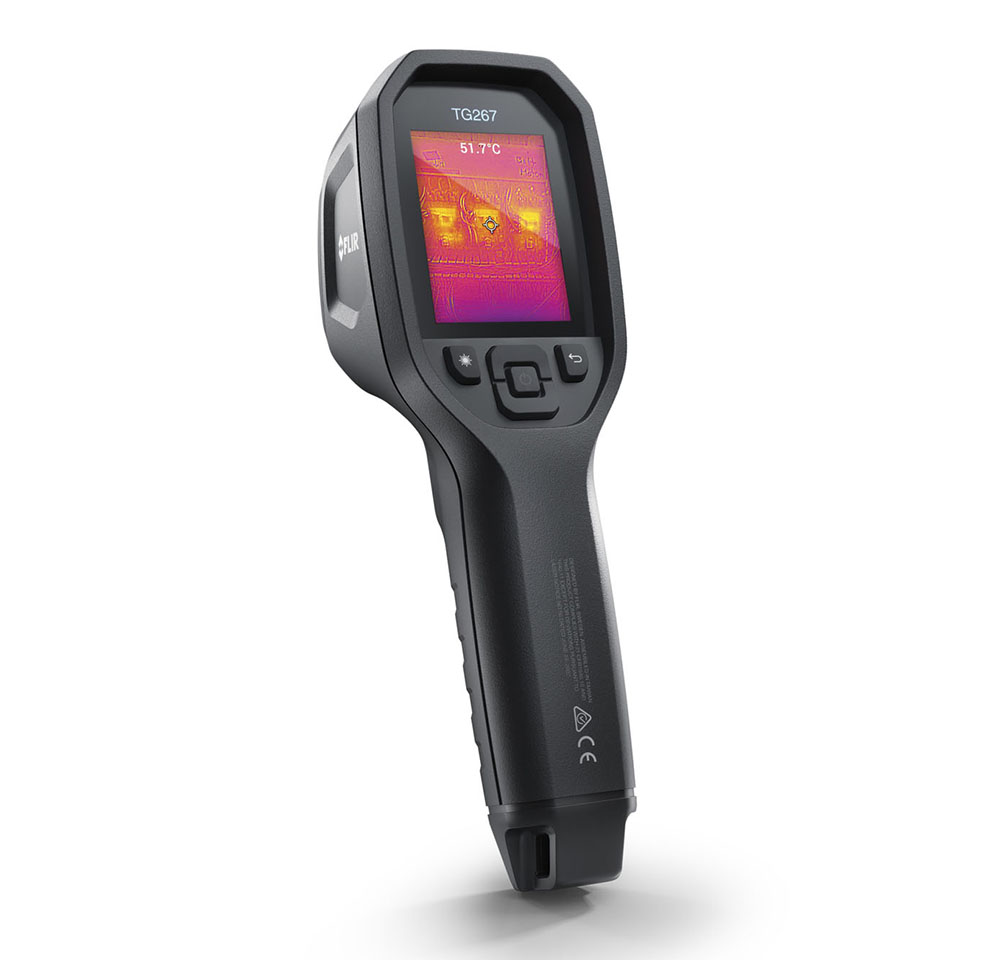

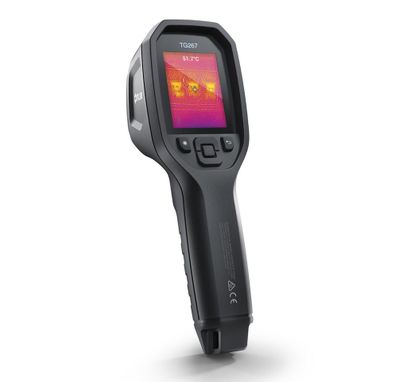

FLIR TG267 Thermal Camera 160 x 120 Resolution/9Hz - 87502-0202

Item #:
FL-87502-0202
Brand:
FLIR
$499.99
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
FLIR TG267 Thermal Camera 160 x 120 Resolution/9Hz - 87502-0202

FLIR TG267 Thermal Camera 160 x 120 Resolution/9Hz - 87502-0202

$499.99

Discontinued


87502-0202 TG267 Thermal Camera 160 x 120 Resolution/9Hz by FLIR

The FLIR TG267 takes you beyond the limitations of single-spot IR thermometers, allowing you to see the hot and cold spots that can indicate serious issues. Examine everything from electrical connections to mechanical breakdowns quickly and accurately. This handheld thermal camera reduces diagnostic time while simplifying reporting and long-term monitoring of equipment and systems throughout a facility. FLIR MSX® (Multi-Spectral Dynamic Imaging) improves image clarity by embossing visual scene details on thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance history and reassure your customer that problems have been resolved. With a simple user interface, Bluetooth® connectivity, storage for up to 50,000 images, and rechargeable Li-ion battery, FLIR TG267 is ready to go out of the box.

IDENTIFY PROBLEMS QUICKLY

  • Experience the difference you can make with a true 160 120 IR pixel imager (19,200 pixels)
  • Measure a wide range of temperatures: -25°C to 380°C (-13°F to 716°F)
  • Add contact-measurement readings with the included Type-K thermocouple (up to 260°C/500°F)
  • Identify the exact area that you're measuring using the bullseye laser pointer

PRODUCE CRISP THERMAL IMAGES

  • Diagnose problems faster with FLIR-patented MSX image enhancement
  • Display and capture thermal or visual images with temperature readings
  • Compare before-and-after stored images with FLIR Tools® software to demonstrate the problem and your fix
  • View thermal images in your preferred color palette on the bright 2.4-inch color display

WORK WITH CONFIDENCE IN RUGGED ENVIRONMENTS

  • Work safely and worry-free knowing that the thermal imager can withstand a 2-meter drop
  • Peer into the darkness and hard-to-reach areas with the bright LED flashlight
  • Upload measurement and images in the field via a METERLiNK® connection to the FLIR Tools mobile app
  • Rely on the security of the world-class FLIR 2-10 warranty
Imaging and optical data
IR resolution 160 × 120 pixels
Digital image enhancement Yes
Thermal sensitivity/NETD <70 mK
Field of view (FOV) 57° × 44°
Minimum focus distance 0.3 m (0.98 ft)
Distance to spot ratio 24:1
Image frequency 8.7 Hz
Focus Fixed
Focal plane array/spectral range Uncooled microbolometer/7.5–14 μm
Detector pitch 12 μm
Image presentation
Display resolution 320 × 240 pixels
Screen size 2.4 in. portrait
Color palettes Iron , Rainbow, White hot, Black hot, Arctic, Lava
Image adjustment Automatic
Image modes MSX® (Multi Spectral Dynamic Imaging)
Visual with temperature reading
Gallery Yes
Measurement and analysis
Object temperature range -25°C to 380°C (-13°F to 716°F)
Measurement accuracy -25°C to 50°C (-13°F to 122°F): up to ±3°C (±7°F)
50 to 100°C (122 to 212°F): ±1.5°C (±3°F) or ± 1.5% whichever is greater
100°C to 380°C (212°F to 716°F): ±2.5°C (±6°F) or ± 2.5% whichever is greater
IR temperature resolution 0.1°C (0.2°F)
Repeatability of reading ±1% of reading or ±1°C (2°F), whichever is greater
Response time 150 ms
IR thermometer measurement Continuous scanning
Minimum measurement distance 0.26 m (0.85 ft)
Type-K range Included Type-K probe: up to 260°C (500°F)
Type-K accuracy ± (1.0% + 3°C (7°F))
Spotmeter Center spot on/off
Set-up and service functions
Set-up commands Local adaptation of units, language, date, and time formats
Screen brightness (high, medium, low)
Gallery, deletion of images
Emissivity correction Yes: 4 preset levels with custom adjustment of 0.1–0.99
Image storage and visual camera
Storage capacity on 4 GB card 50,000 images
Image file format JPEG w/ spot temp data
Digital camera resolution 2 MP (1600 × 1200 pixels)
Field of view (FOV) 71° × 56°, adapts to IR lens
Light and laser
Flashlight 100 lumens LED, on/off option
Class 1 laser Projects center spot and outlines circular measurement area to indicate size
Data communcation interfaces
Bluetooth® BLE
USB Type-C: data transfer, power
Additional data
Battery type Rechargeable 3.7 V Li-ion battery
Battery operating time 5 hrs scanning
Battery charging time 4 hrs to 90%
Power management Adjustable: off, 5 min, 15 min, 30 min
Shock/vibration 25 g (IEC 60068-2-27); 2 g (IEC 60068-2-6)
Drop Designed for 2 m (6.56 ft)
Weight 0.394 kg (13.9 oz)
Size (L × W × H) 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
