FLIR TG275 Automotive Diagnostic Thermal Camera 160 x 120 Resolution/9Hz - 87503-0303

FLIR TG275 Automotive Diagnostic Thermal Camera 160 x 120 Resolution/9Hz - 87503-0303

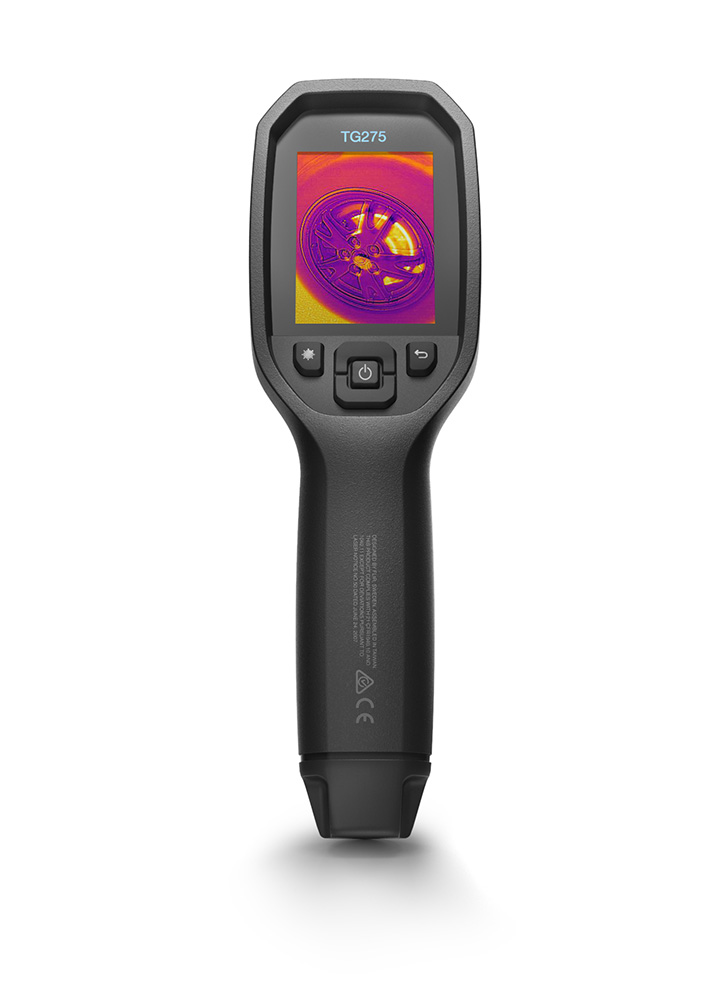

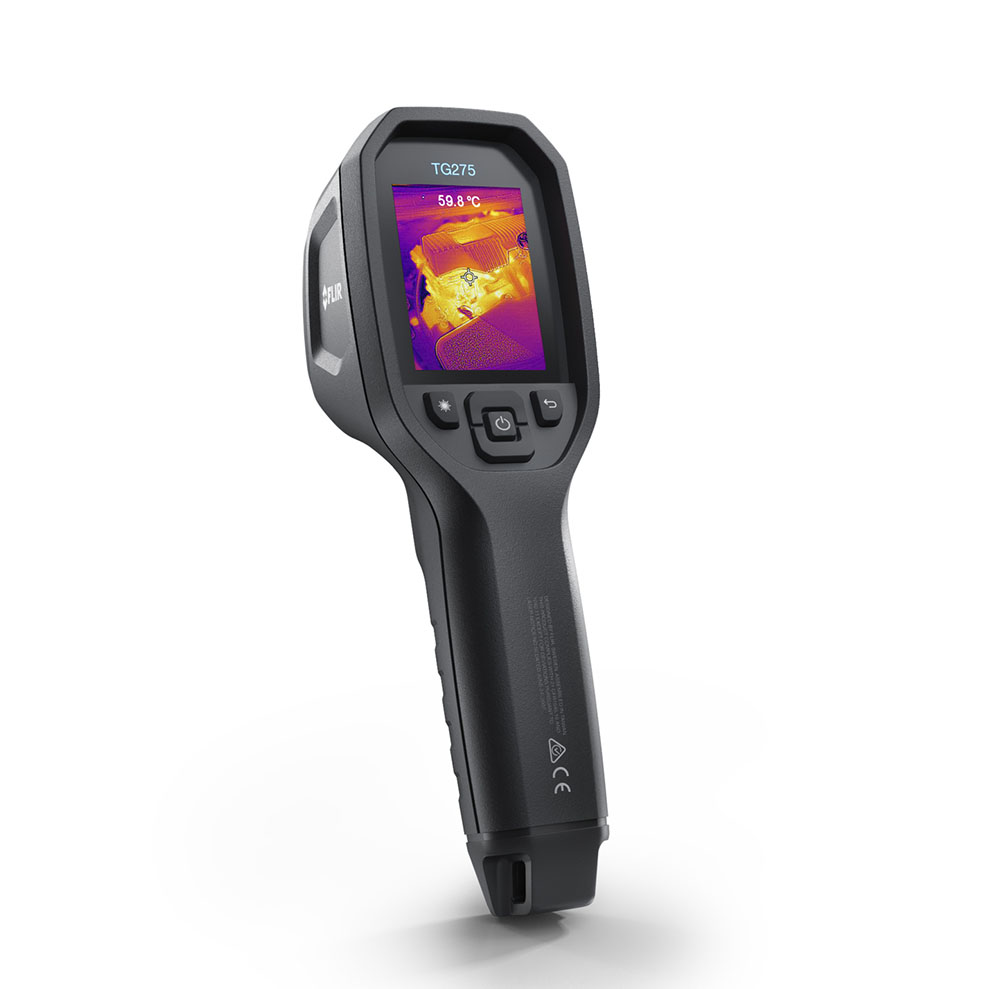

87503-0303 TG275 Automotive Diagnostic Thermal Camera 160 x 120 Resolution/9Hz by FLIR

The TG275 is the first FLIR camera specifically designed for the automotive maintenance and repair professional. Featuring IGM™ (Infrared Guided Measurement), this diagnostic tool combines non-contact temperature measurement and thermal imaging to help you quickly find the source of heat-related problems and spot potential faults early. Use the TG275 to record before and after images of repairs so you can reassure customers that the problem has been found and fixed. Affordable and easy to use, the TG275 is ideal for troubleshooting issues related to batteries, relays and switches, exhaust manifolds, AC condensers, drive train components, and much more.


  • See beyond the limitations of single-spot IR thermometers with this 160 × 120 (19,200 pixels) thermal imager
  • Measure a wide range of temperatures, from -25°C to 550°C (-13°F to 1022°F)
  • Ensure you're measuring the right component by targeting the area with a high-precision, energy-efficient laser


  • FLIR patented MSX® enhancement adds sharp visual detail to thermal images, making it easier to diagnose problems
  • Bright 2.4-inch screen clearly displays thermal images in your preferred color palette
  • Image recording feature helps to demonstrate that you correctly identified the source of the problem and made the appropriate repairs


  • Work safely while still measuring accurately thanks to the camera's 30:1 spot size ratio
  • Rugged design with an IP54 enclosure that protects the camera from dirt, dust, and oil
  • See into dark, difficult-to-reach areas with the help of the bright LED flashlight
Imaging and optical data
IR resolution 160 × 120 (19,200 pixels)
Thermal sensitivity/NETD <70 mK
Field of view (FOV) 57° × 44°
Distance-to-spot ratio 30:1
Minimum focus distance 0.3 m (0.98 ft.)
Imaging range -25°C to 550°C (-13°F to 1022°F)
Image frequency 8.7 Hz
Focus Fixed
Digital camera 2 MP, 71° × 56° FOV
Image Presentation and Modes
Display resolution 320 × 240 pixels
Screen size 2.4 in color LCD, portrait orientation
Aspect ratio 4:3
Image adjustment Automatic
Visual image Yes
MSX® Yes
Gallery Yes
Color palettes Iron, Rainbow, White hot, Black hot, Arctic, Lava
Image storage capacity 4 GB for storage of up to 50,000 pictures
Image file format JPEG
Measurement and Analysis
Camera temperature range -25°C to 550°C (-13°F to 1022°F)
Measurement accuracy ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F)
Up to ±3°C (±5.4°F) for temperatures -25°C to 50°C (-13°F to 122°F)
Up to ±3°C (±5.4°F) for temperatures 100°C to 550°C (212°F to 1022°F)
IR temperature resolution 0.1°C (0.2°F)
IR thermometer measurement Continuous scanning
Spotmeter Center spot on/off
Emissivity correction Yes: 4 preset levels with custom adjustment of 0.1 to 0.99
Set-up commands Local adaptation of units, language, date, and time formats
Screen brightness (high, medium, low) Gallery, deletion of images
Laser pointer Center spot and circular area
Laser Class 1
Interfaces USB 2.0, Bluetooth® BLE
USB USB Type–C: data transfer/power
Available languages Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwgian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Flashlight Bright LED flashlight
Battery operating time 5 hours continuous scanning
Battery type Rechargeable Li-ion battery
Battery voltage 3.7 V
Battery charging time 4 hours to 90%, 6 hours to 100%
Power management Adjustable: off, 5 min, 15 min, 30 min
IP rating IP54 (IEC60529)
Drop Designed for 2 m (6.56 ft)
Safety CE/CB/EN61010/UL
Operating temperature range -10°C to 45°C (14°F to 113°F)
Tripod mounting UNC 1/4"-20
Weight (including battery) 0.394 kg (13.9 oz)
Size (L x W x H) 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in)
Box contents Thermal camera, wrist strap lanyard, USB cable, pouch, printed documentation
