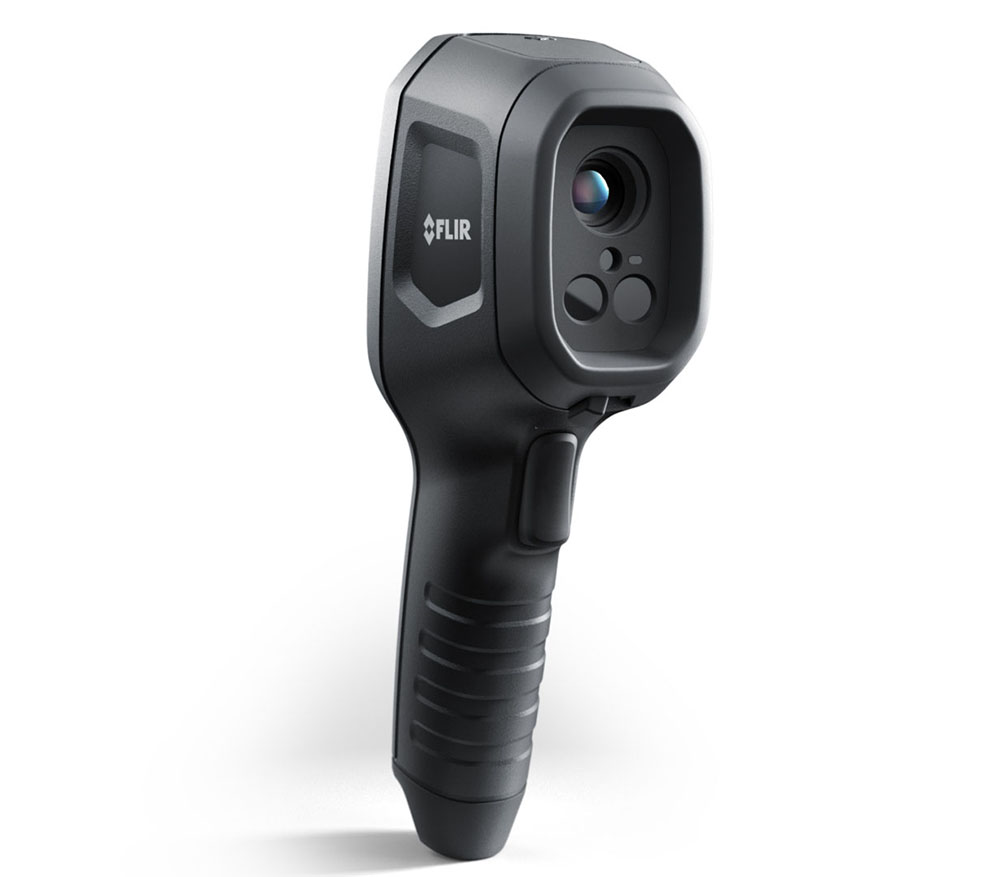

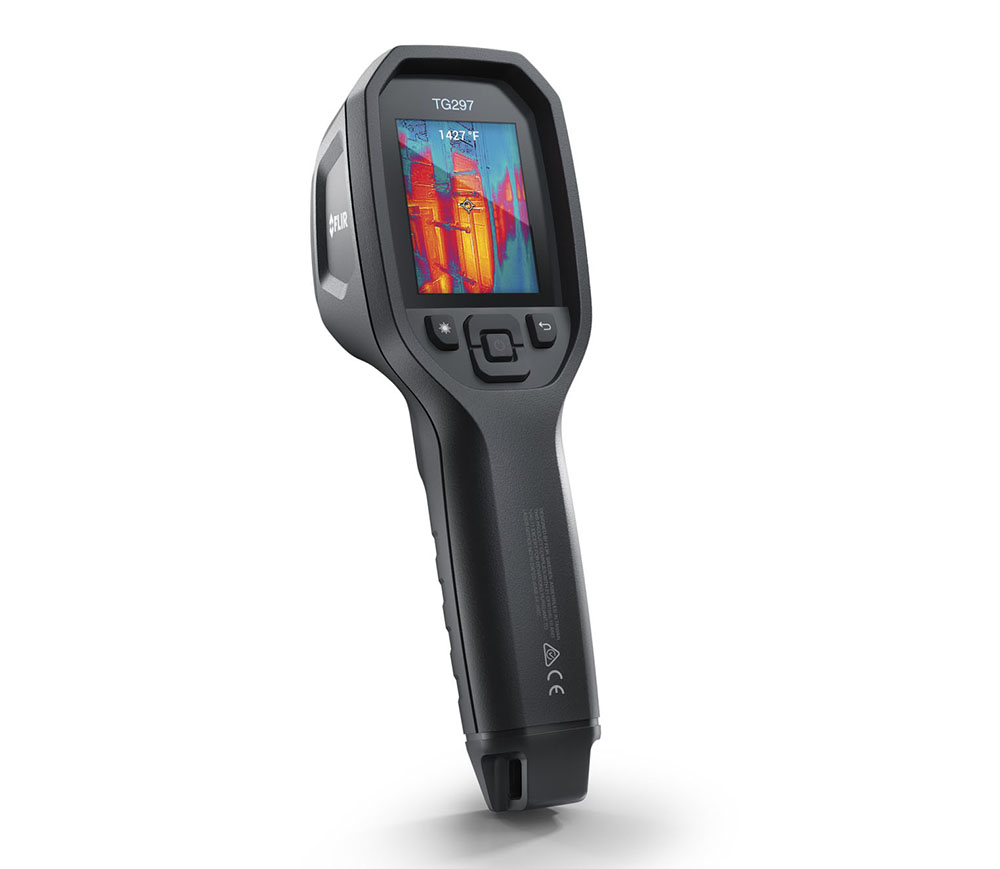

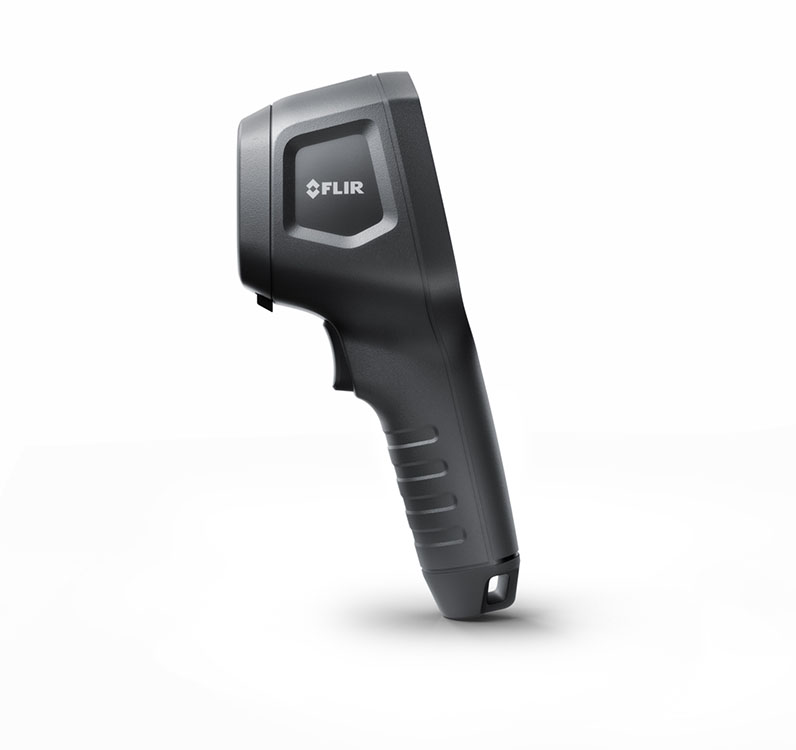

87504-0404 TG297 Industrial High Temp Spot Thermal Camera 160 x 120 Resolution/9Hz by FLIR

The FLIR TG297 combines accurate measurement with the ability to image temperatures as high as 1030°C (1886°F) in a one-of-a-kind diagnostic tool. Now you can both see and measure the source of common issues involving electrical and mechanical systems, diagnose breakdowns, and verify manufacturing processes. Examine anything from a furnace to a forge using thermal enhanced with FLIR MSX® (Multi-Spectral Dynamic Imaging), which improves image clarity by embossing visual scene details onto full thermal images. This can provide the perspective and context you need to accurately target potential faults, troubleshoot repairs, and monitor processes. Record images to assure team members that machinery and systems are functioning safely and at peak efficiency. With a simple user interface, Bluetooth® connectivity, storage for up to 50,000 images, and rechargeable Li-ion battery, the FLIR TG297 is ready to go out of the box.

IDENTIFY PROBLEMS QUICKLY

  • Experience the difference you can make with a true 160 × 120 IR pixel imager (19,200 pixels)
  • High-temperature filter allows camera to measure and image temperatures up to 1030°C (1886°F)
  • Work from a safe distance while scanning high- temperature objects thanks to the 30:1 spot ratio
  • Identify the exact area that you're measuring using the bullseye laser pointer

PRODUCE CRISP IMAGES FOR EASY INTERPRETATION

  • Diagnose problems faster with FLIR-patented MSX image enhancement
  • Display and capture thermal or visual images with temperature readings
  • Compare before-and-after stored images to demonstrate the problem and the repair
  • View thermal images in your preferred color palette on the bright 2.4-inch color display

STANDS UP TO TOUGH WORK ENVIRONMENTS

  • Work safely and worry-free knowing that the thermal imager can withstand a 2-meter drop
  • Peer into the darkness and hard-to-reach areas with the bright LED flashlight
  • Find this compact, durable imager in a crowded tool bag easily, thanks to the ergonomic handle design
  • Rely on the security of the world-class FLIR 2-10 warranty
Imaging and optical data
IR resolution 160 × 120 pixels
Digital image enhancement Yes
Thermal sensitivity/NETD <70 mK
Field of view (FOV) 57° × 44°
Minimum focus distance 0.3 m (0.98 ft)
Distance to spot ratio 30:1
Image frequency 8.7 Hz
Focus Fixed
Focal plane array/spectral range Uncooled microbolometer/7.5–14 μm
Detector pitch 12 μm
Image presentation
Display resolution 320 × 240 pixels
Screen size 2.4 in. portrait
Color palettes Iron , Rainbow, White hot, Black hot, Arctic, Lava
Image adjustment Automatic
Image modes MSX® (Multi Spectral Dynamic Imaging)
Visual with temperature reading
Gallery Yes
Measurement and analysis
Object temperature range -25°C to 1030°C (-13°F to 1886°F)
Measurement accuracy -25°C to 50°C (-13°F to 122°F): up to ±3°C (±7°F)
50 to 100°C (122 to 212°F): ±1.5°C (±3°F) or ±1.5%, whichever is greater
100°C to 500°C (212°F to 932°F): ±2.5°C (±6°F) or ± 2.5% whichever is greater
500°C to 1030°C (932°F to 1886°F): ±3°C (±7°F) or ± 3%, whichever is greater
IR temperature resolution 0.1°C (0.2°F)
Repeatability of reading ±1% of reading or ±1°C (2°F), whichever is greater
Response time 150 ms
IR thermometer measurement Continuous scanning
Minimum measurement distance 0.26 m (0.85 ft)
Spotmeter Center spot on/off
Set-up and service functions
Set-up commands Local adaptation of units, language, date, and time formats
Screen brightness (high, medium, low)
Gallery, deletion of images
Emissivity correction Yes: 4 pre-set levels with custom adjustment of 0.1–0.99
Image storage and visual camera
Storage capacity on 4 GB card 50,000 images
Image file format JPEG w/ spot temp data
Digital camera resolution 2 MP (1600 × 1200 pixels)
Field of view (FOV) 71° × 56°, adapts to IR lens
Light and laser
Flashlight 100 lumens LED, on/off option
Class 1 laser Projects center spot and outlines circular measurement area to indicate size
Data communcation interfaces
Bluetooth® BLE
USB Type-C: data transfer, power
Additional data
Battery type Rechargeable 3.7 V Li-ion battery
Battery operating time 5 hrs scanning
Battery charging time 4 hrs to 90%
Power management Adjustable: off, 5 min, 15 min, 30 min
Shock/vibration 25 g (IEC 60068-2-27); 2 g (IEC 60068-2-6)
Drop Designed for 2 m (6.56 ft)
Weight 0.394 kg (13.9 oz)
Size (L × W × H) 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
