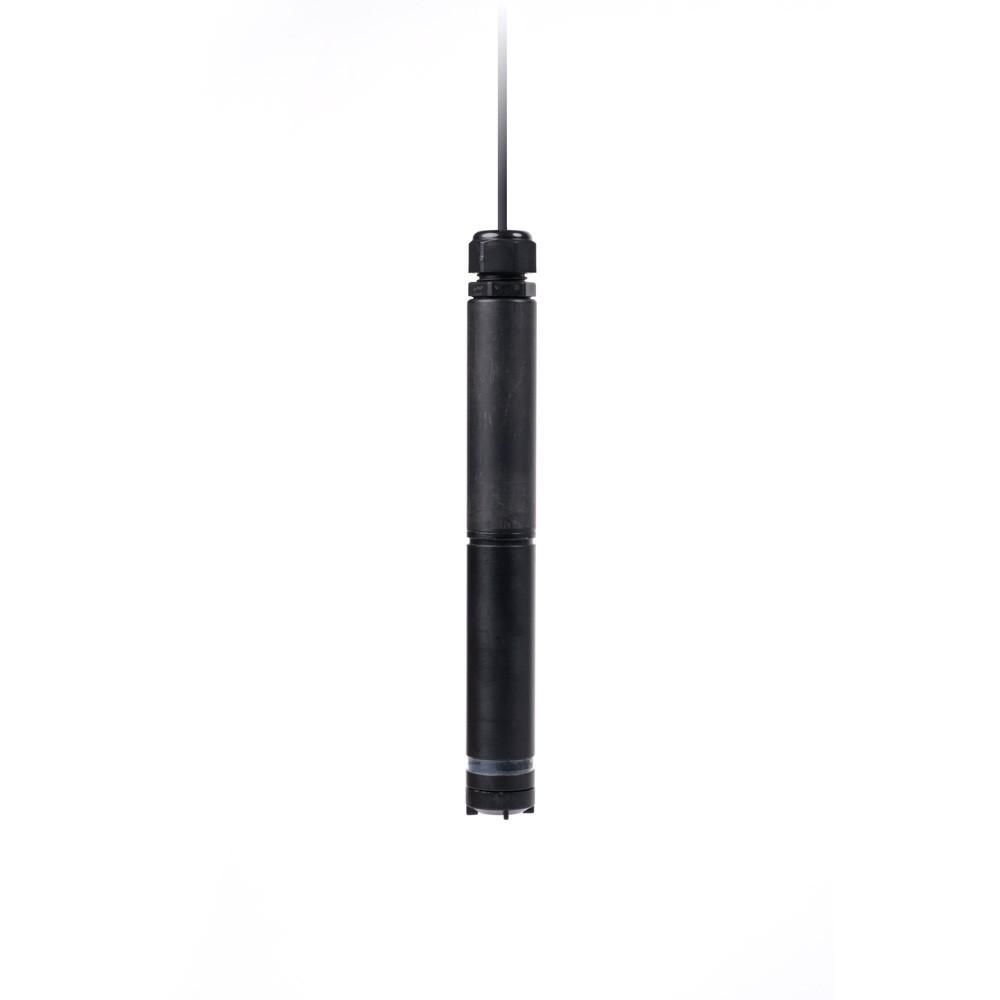

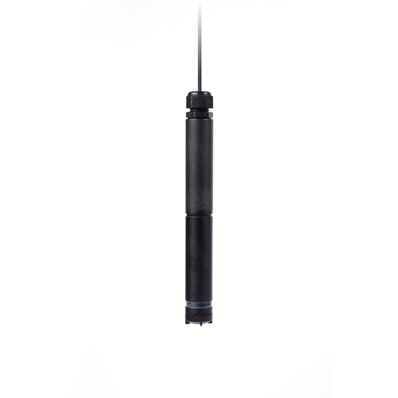

Sensorex CLD502 Amperometric Chlorine Dioxide Sensor, 0-2 ppm, 4-20mA

Sensorex CLD502 Amperometric Chlorine Dioxide Sensor, 0-2 ppm, 4-20mA

$1,093.00

CLD502 Amperometric Chlorine Dioxide Sensor, 0-2 ppm, 4-20mA by Sensorex

The CLD series (chlorine dioxide sensors) feature amperometric measurement technology. Designed for disinfection applications in water treatment, for use with chlorine dioxide, pools, etc., these sensors are available in two ranges for detecting ppm level of chlorine dioxide. Choose the CLD502 for 0-2ppm and CLD510 for 0-10ppm of chlorine dioxide.

Typical applications include:

  • Industrial wastewater
  • Cooling water
  • Bottle Rinsing
  • Irrigation water in agriculture

Sensors outpu a 4-20mA signal scaled to 0-2, 0-5, or 0-10ppm. Membrane cap and fill solution are easily replaceable to maximize sensor life.

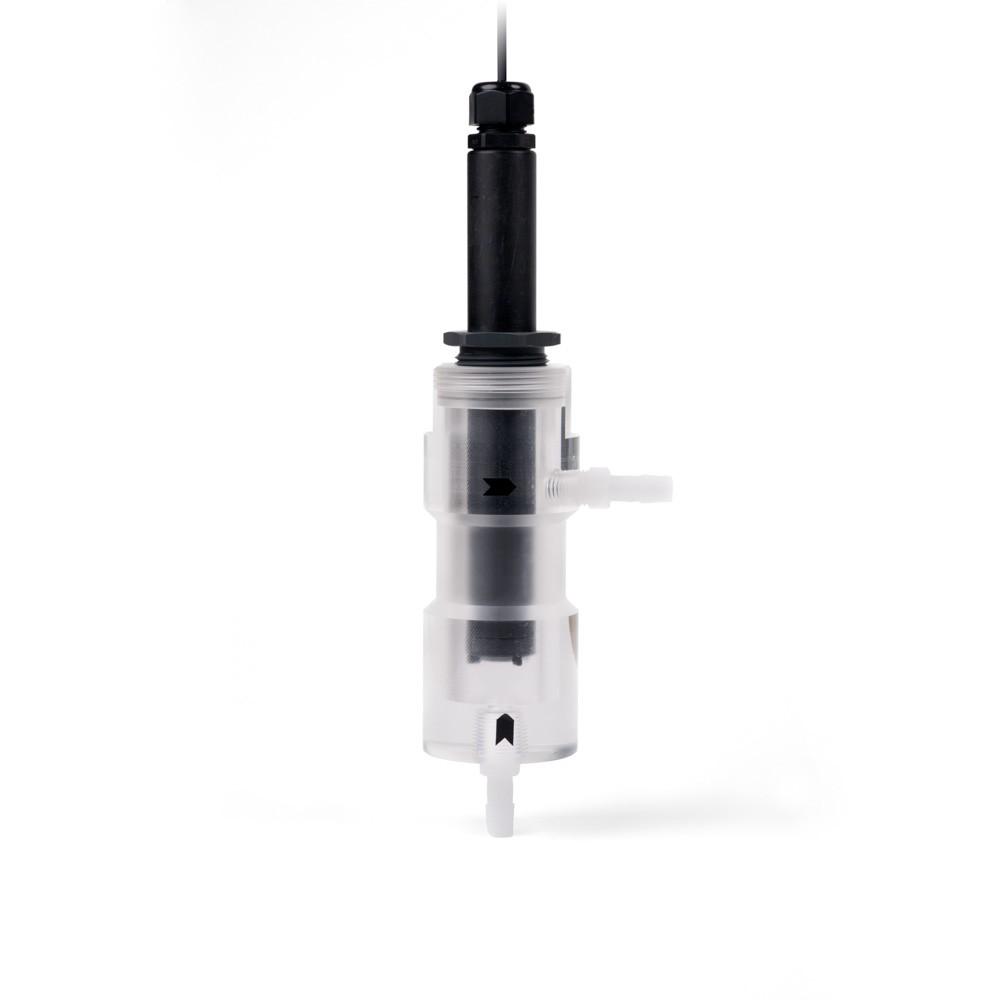

Sensors can be used in new installations with Sensorex flow cell or installed as replacement for other 4-20mA output CIO2 sensors. (Consult Sensorex for compatibility).

An optional flow meter (FM001) is available to help provide consistent flow for added system stability.

Features

  • Amperometric Sensor Technology
  • Real Time Continuous Measurement
  • Ranges 0-2 or 0-10ppm
  • Built-In Temperature Compensation
  • Large Electroylte Reservoir

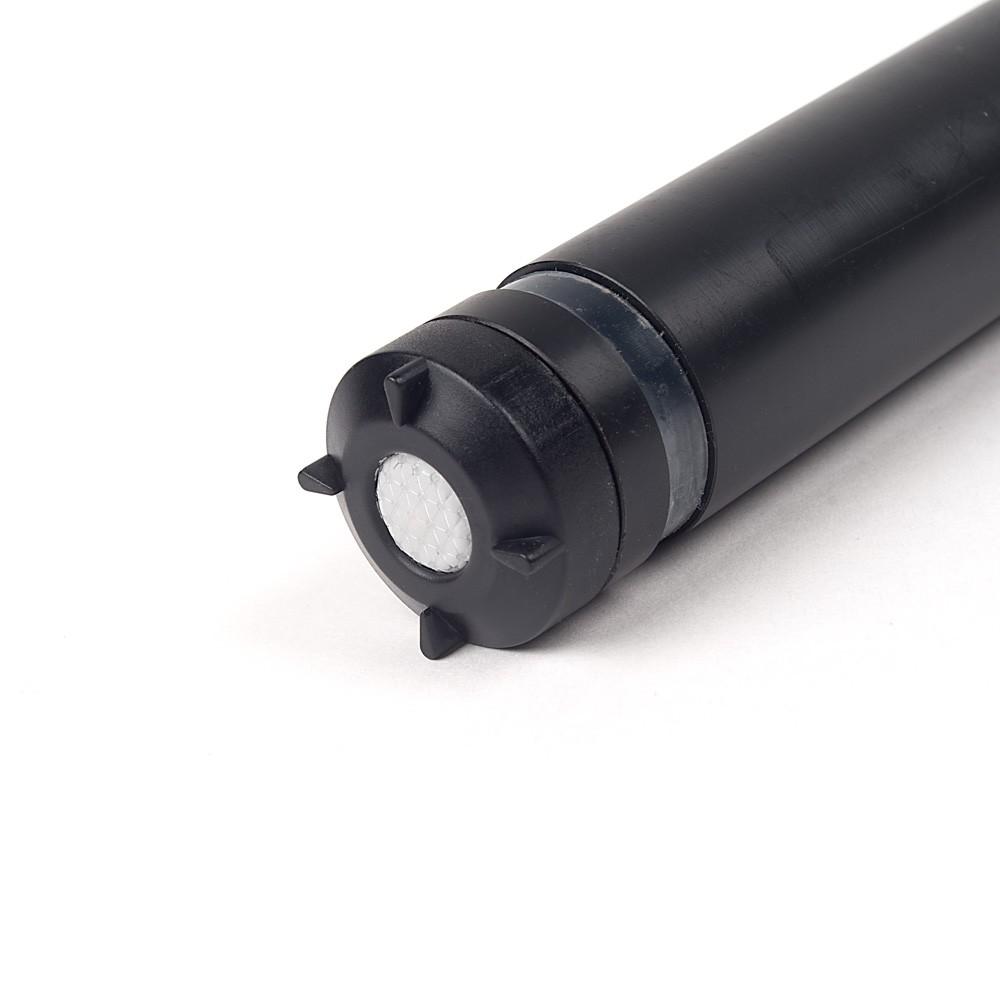

  • Replaceable Membrane and Electroylte
Measuring Range 0-2 (CLD-502), 0-5 (CLD-505) or 0-10ppm (CLD-510) ClO
pH Range 4-11
Body Material PVC
Membrane Cap Material PVC housing, Proprietary Membrane
Temperature Range 0 - 45 Degrees C
Maximum Pressure 14.7 psig (1 Bar)
Specification Ut es maior aliquam vel molorei catem
Temp Comp Integrated
Cable Length 10 feet 2 conductors, tinned leads
Process Connec- tion flow cell 1/4 inch FNPT threads
Output 4-20mA
Flow Range Min 0.2 gpm (45 l/hr), Max 0.6 gpm (135 l/hr)
Supply Voltage 12-24V DC, 250mA minimum
Cross Sensitivity Ozone, monochloramine
