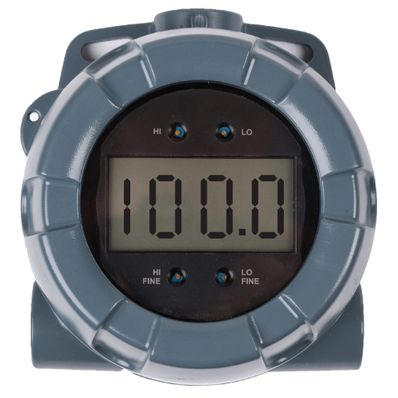

Sensorex Loop Powered 4-20mA Transmitter - UVT-SW - LPM100
Item #:
SEN-LPM100
Brand:
Sensorex
Share this product:

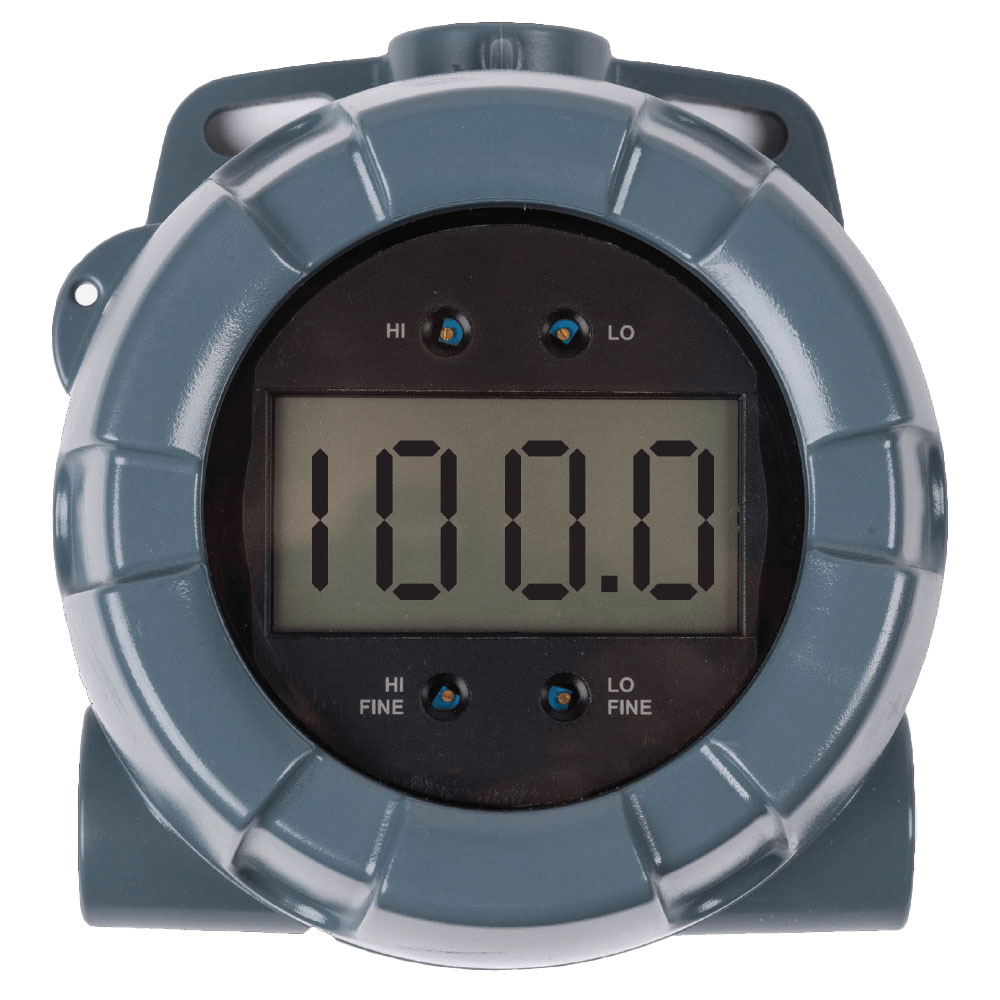

LPM100 Loop Powered 4-20mA Transmitter - UVT-SW by Sensorex
The LPM100 is a durable, versatile loop powered process meter - the ideal read out display solution for challenging applications. Loop power reduces the use of power lines, while the simple interface ensures user-friendliness. Complete a quick and adaptable installation and your system will be ready for process monitoring.
- Large, sleek 3 1/2 digit display
- Simple installation and operation
- Versatile mounting options with rotatable display
- Superior durability for demanding applications
- Increased visibility with loop powered back-light
- Compatible with Sensorex 4-20 mA output sensors
Compatibility
Recommended for local display of data from Sensorex sensors with a 4-20 mA output, including:
- UVT-LED-PW UV Transmittance Sensors
- FCL500 Free Chlorine Sensors
- DO6440/T Dissolved Oxygen Sensors
- CLD500 Chlorine Dioxide Sensors
| SPECIFICATIONS | |
| Display | 3 1/2 digit LCD, 1" (25.4 mm) -1,999 to 1,999 |
| Display Update Rate | 2.5 Updates/Second |
| Display Orientation | Display may be mounted at 90° increments up to 270° from default orientation |
| Over-range | Display reads 1 on the left most digit |
| Programming Method | Four front mounted rotary control dials accessed when the cover is removed |
| Recalibration | Recommended at least every 12 months |
| Normal Mode Rejection | 60 dB rejection ratio |
| Operating and Storage Temperature Range | -40 to 75°C |
| Relative Humidity | 0 to 90% non-condensing |
| Connections | Screw terminals accept 12 to 22 AWG wire |
| Enclosure | NEMA 4X, IP65 plastic field enclosure |
| OUTLINE AND DIMENSIONS | |
| Overall | 5.67" x 5.25" x 4.18" (144 mm x 133 mm x 106 mm) (W x H x D) |
| Weight | 1.65 lbs (26.4 oz, .75 kg) |
| INPUT | |
| Input | 4-20 mA |
| Accuracy | ±0.1% of full span ±1 count |
| Temperature Drift | 150 PPM/°C from -40 to 75°C ambient |
| Calibration Range | 4 mA input: -1000 to +1000; 20 mA between 20 and 2000 counts greater than 4 mA display. Two point linear display span |
| Maximum Voltage Drop | 4 VDC @ 20 mA with loop-powered back-light |
| Input Overload | Over current protection to 2 A max |
