Sensorex Titanium Body Optical DO Sensor, 10m - ODO9000

Sensorex Titanium Body Optical DO Sensor, 10m - ODO9000

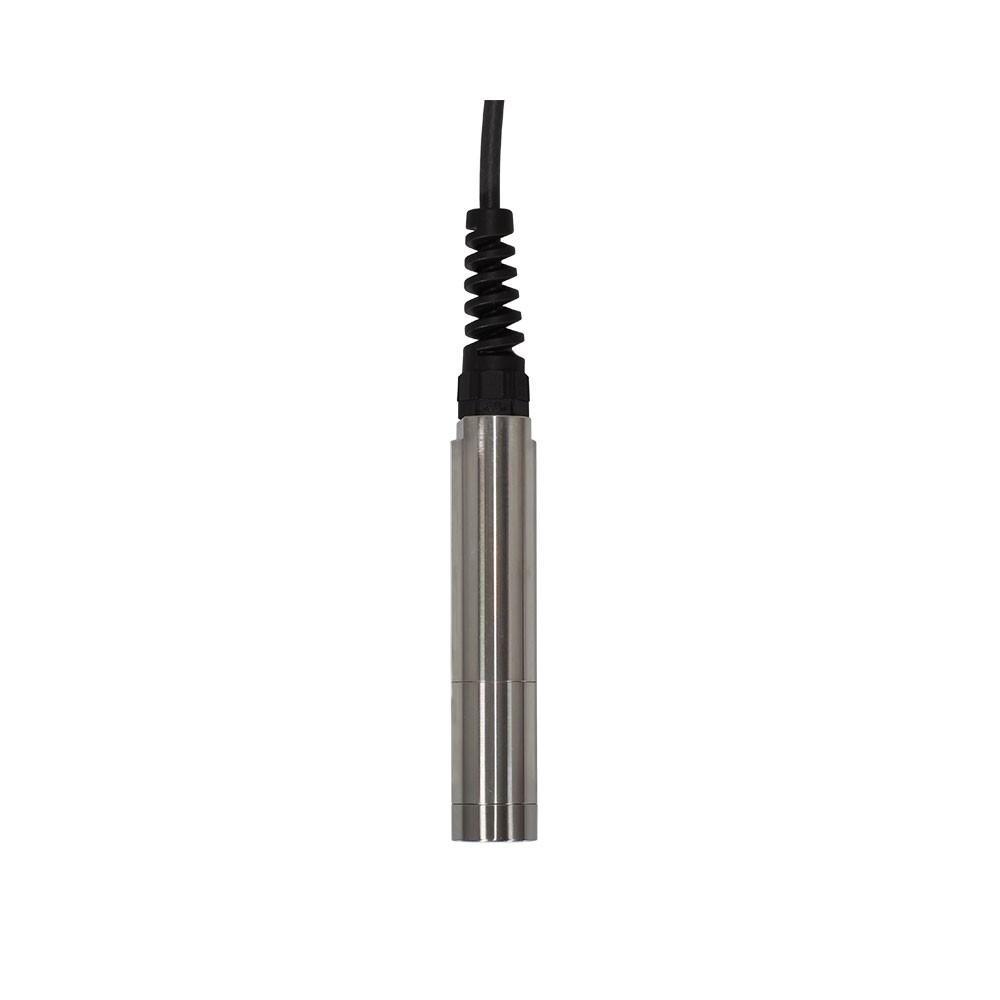

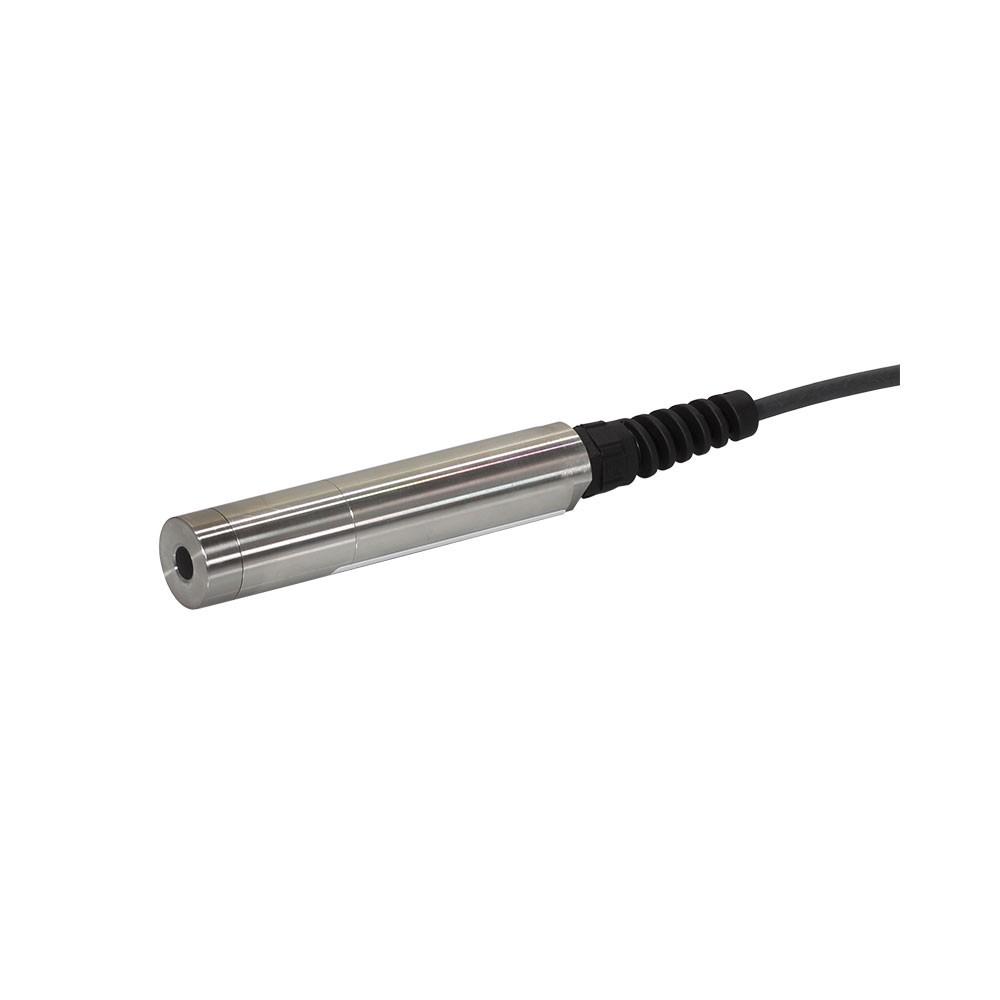

ODO9000 Titanium Body Optical DO Sensor, 10m by Sensorex

The Lumin-S optical dissolved oxygen sensor delivers reliable DO measurements over a long operating life. There are no membranes to replace, no electrolyte solutions to replenish, and no anodes to clean. Maintaining the sensor is as easy as replacing the optical sensing cap once every 1-2 years, and since all calibration data is stored on the cap, there's no need to calibrate. This dissolved oxygen sensor outputs a Modbus/RS-485 digital signal for easy PLC integration.

Durable and Reliable

  • SS316 body option for fresh water
  • Titanium body option for salt water
  • Optical technology allows for up to 2 years of use without the need for maintenance

Save Time On Set-up

  • No calibration required
  • Plug and play

Digital Communication

  • Open protocol Modbus RS485 Signal
Measurement Principle Optical measurement via luminescence
Measurement Ranges 0.00-20.00 mg/L
0.00-20.00 ppm
Accuracy ± 0.1 mg/L
± 0.1 ppm
± 1%
Response Time 90% in less than 60 seconds
Measurement Interval > 5s
Membrane Cap Cross Sensitivity: Organic solvents (acetone, toluene, chloroform, methylene chloride); Chlorine gas No Cross Sensitivity: pH 1-14, H2S, CO2, SO2
Temperature Compensation 10K NTC
Temperature Accuracy 0.5°C
Sample Temperature 0-50°C (32 to 122°F)
Max Pressure 5 bar (72.5 PSI)
Signal Output Direct MODBUS RS-485
Power Supply 12 Volts (±10%)
Power Consumption 1 W
Dimensions Diameter: 25 mm (0.98 in) x Length 146 mm (5.75 in)
Weight 450g (1lb) for sensor + 3m (10ft) cable
Material 316 Stainless Steel(ODO8000), Titanium (ODO9000)
Protection Rating IP68
