Sensorex Submersible UV Transmittance Monitor - UVT-LED-SW

Sensorex Submersible UV Transmittance Monitor - UVT-LED-SW

$11,135.00

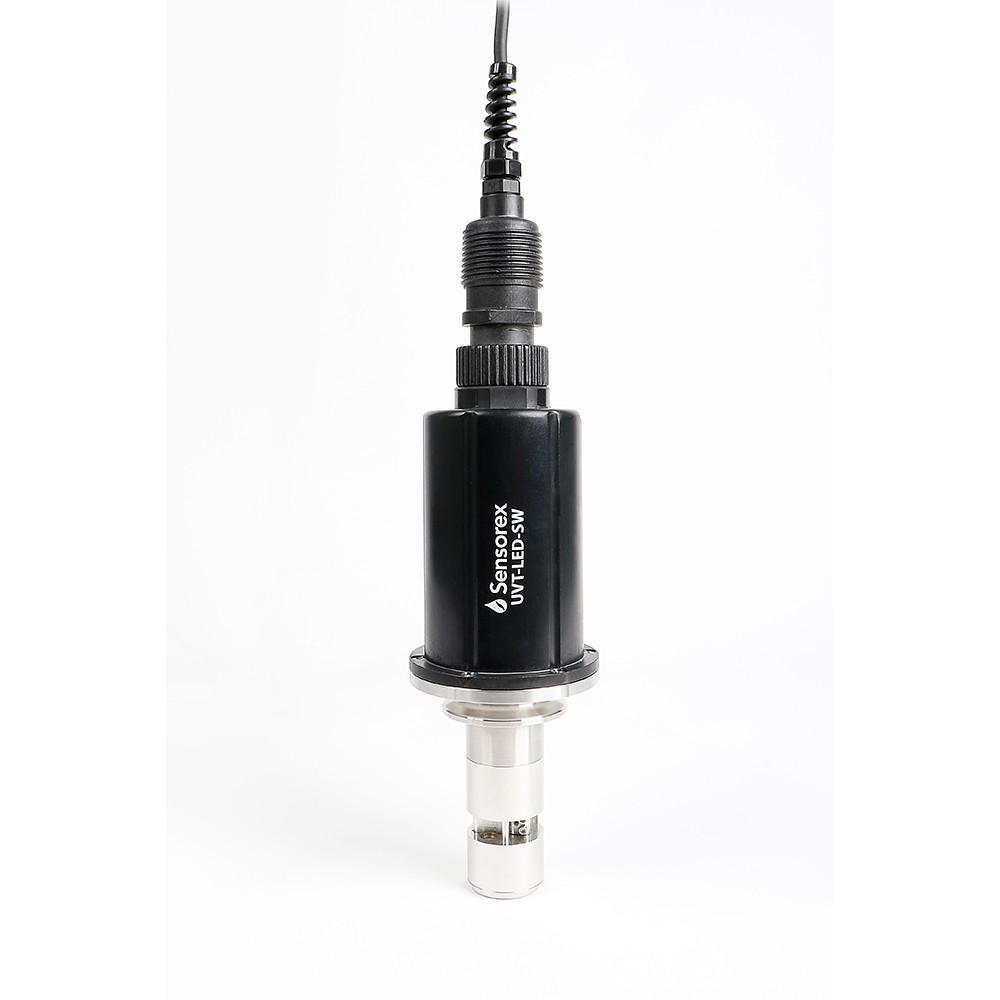

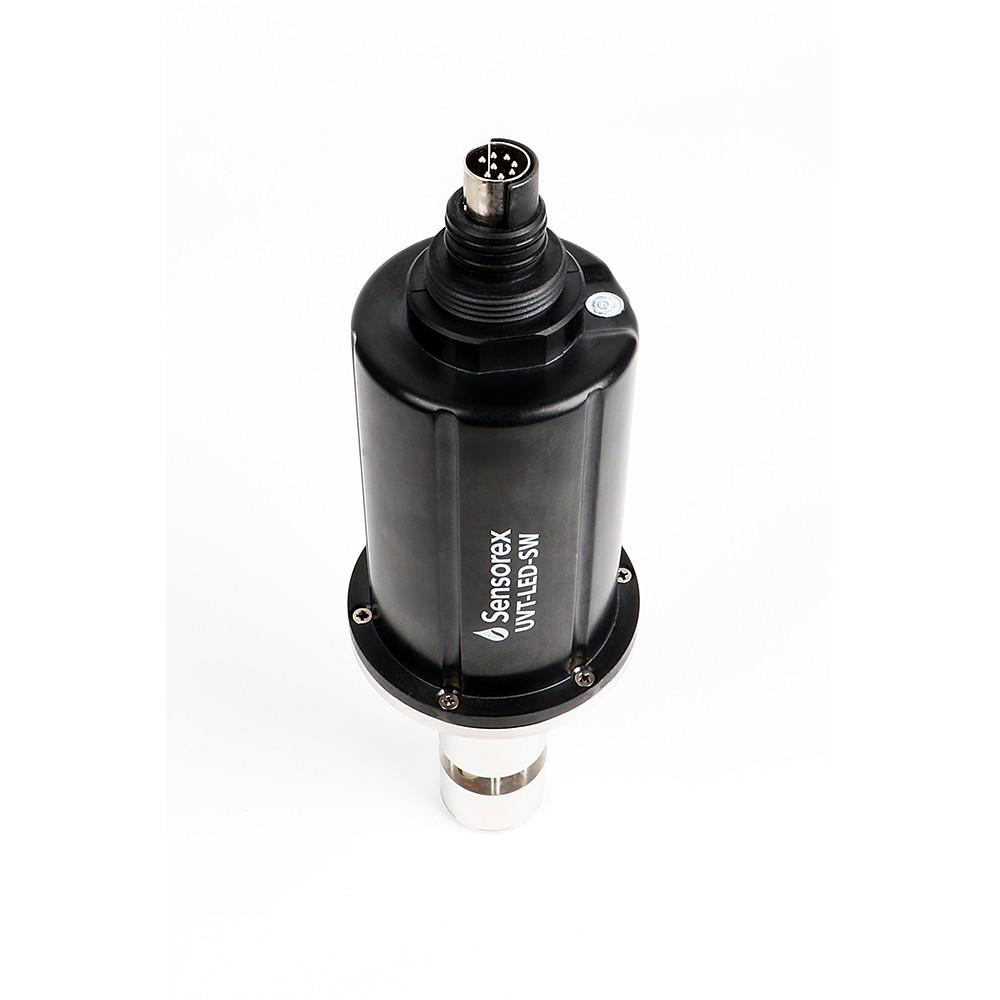

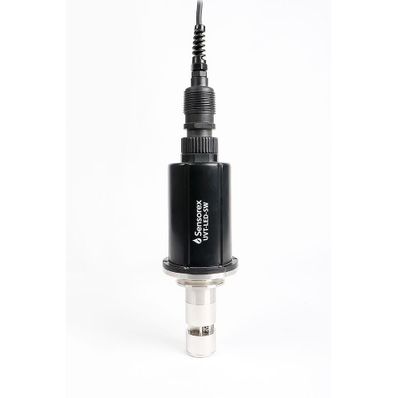

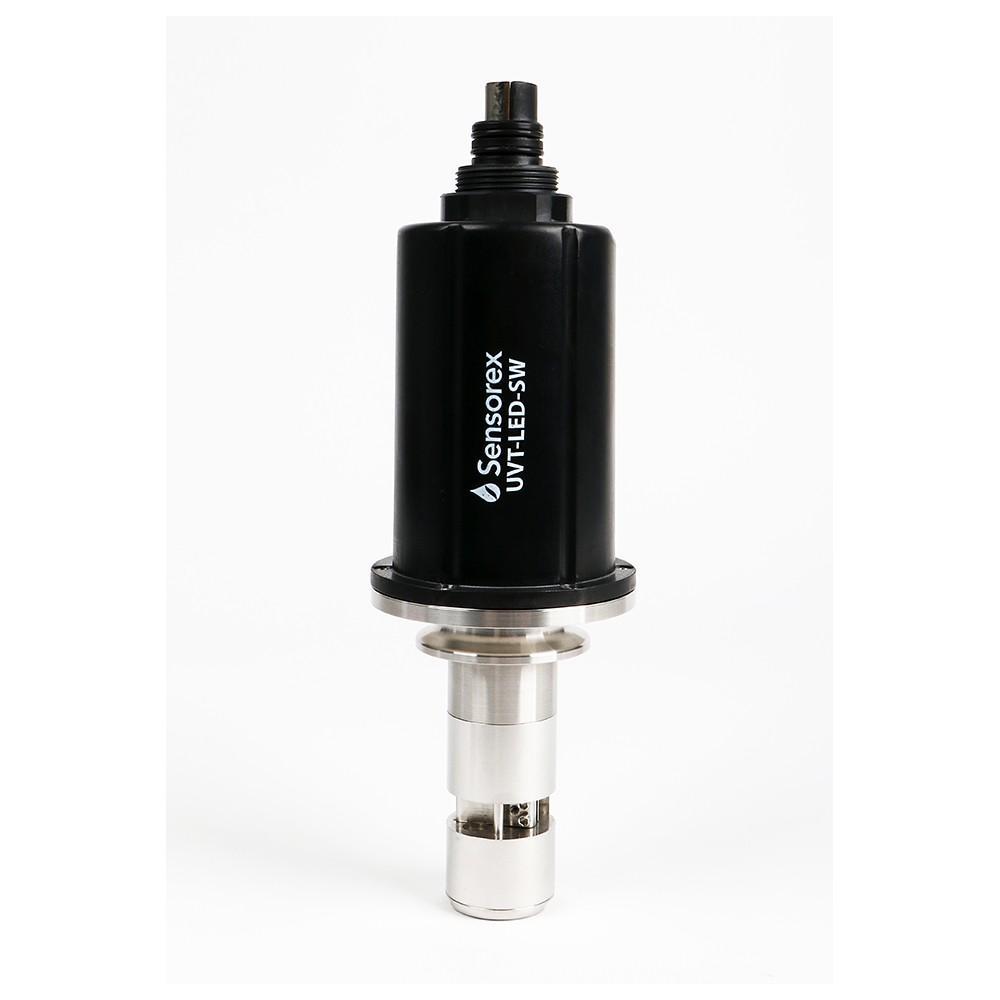

UVT-LED-SW Submersible UV Transmittance Monitor by Sensorex

Sensorex's UVT-LED transmittance monitors are the first UVT monitors in the world to use a UV-C LED light source. This technology offers advantages over traditional mercury lamp UVT instrumentation, including stable output with zero warm up time. The result is more accurate UVT measurements over a longer period of time, without the need for frequent recalibration or light source replacement.

Automatic Cleaning and Calibration

Maintenance is minimal thanks to our patented wiper technology, which delivers a swift cleaning cycle and automatic calibration to a quartz reference standard.

Effortless Installation or Retrofitting

We offer several different mounting kits - perfect for new installs in an open channel, retrofits for Hach⪚ models, or various in-line configurations using a sanitary connection.

Simple Connectivity

The sensor directly outputs a 4-20mA signal for tuning the power of a UV disinfection system or monitoring with a data logger.

  • Stable measurements driven by UV-C LED technology
  • Patented automatic cleaning and calibration
  • Simple connectivity with direct 4-20mA output
  • Reduced maintenance with no field servicable parts
  • Continuous monitoring for UV disinfection control
Measurement Technique UV Absorption Method (Single Beam Technique), Reagent-Free
Measurement Path Length 1cm
Wavelength 254nm
Output 4-20mA
Power Requirement 24V DC, 5A min. (not included)
Accuracy 1.0% T
Resolution 0.1% T
Light Source UV-C LED
Measurement Range 10% - 100% T
Measurement Interval 60 seconds
Sample Flow Rate N/A
Inspection Interval 6 months
User Maintenance 1 hour/month (Typical)
IP Ingress Rating IP68
Warranty 1 year limited warranty
Dimensions 9.40" H x 3.00" DIA
Weight 1.78 lbs (0.81 kg)
